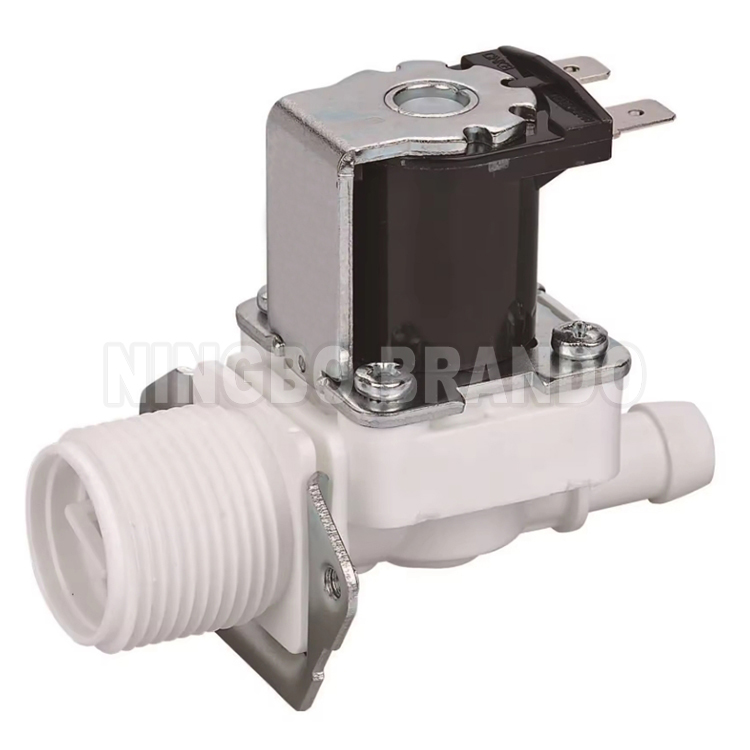

Water Inlet Solenoid Valve For Washing Machine Dishwasher Ice Maker 12V 24V 110V 220V

Water Inlet Solenoid Valve For Washing Machine Dishwasher

This water inlet solenoid valve is popularly used in washing machine, dishwasher, ice maker, etc; G3/4'' male threaded inlet, 16mm barb outer diameter outlet, PP body, EPDM seal, 0.2 to 10 bar working pressure, 2 way normally closed, diaphragm pilot operated, various voltages for selection, 12VDC, 24VDC, 24VAC, 110VAC or 220VAC, other voltages can be customized.

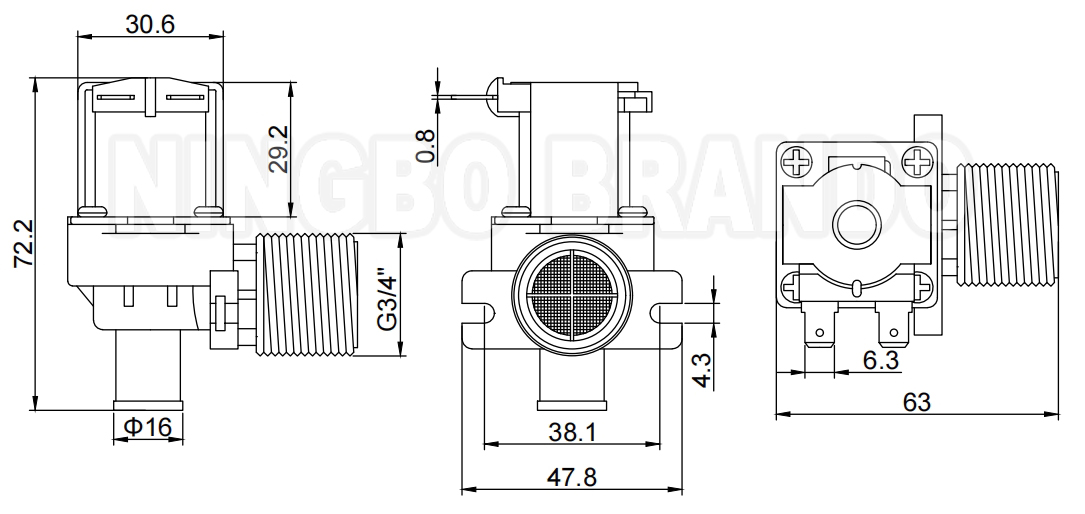

Technical Data:

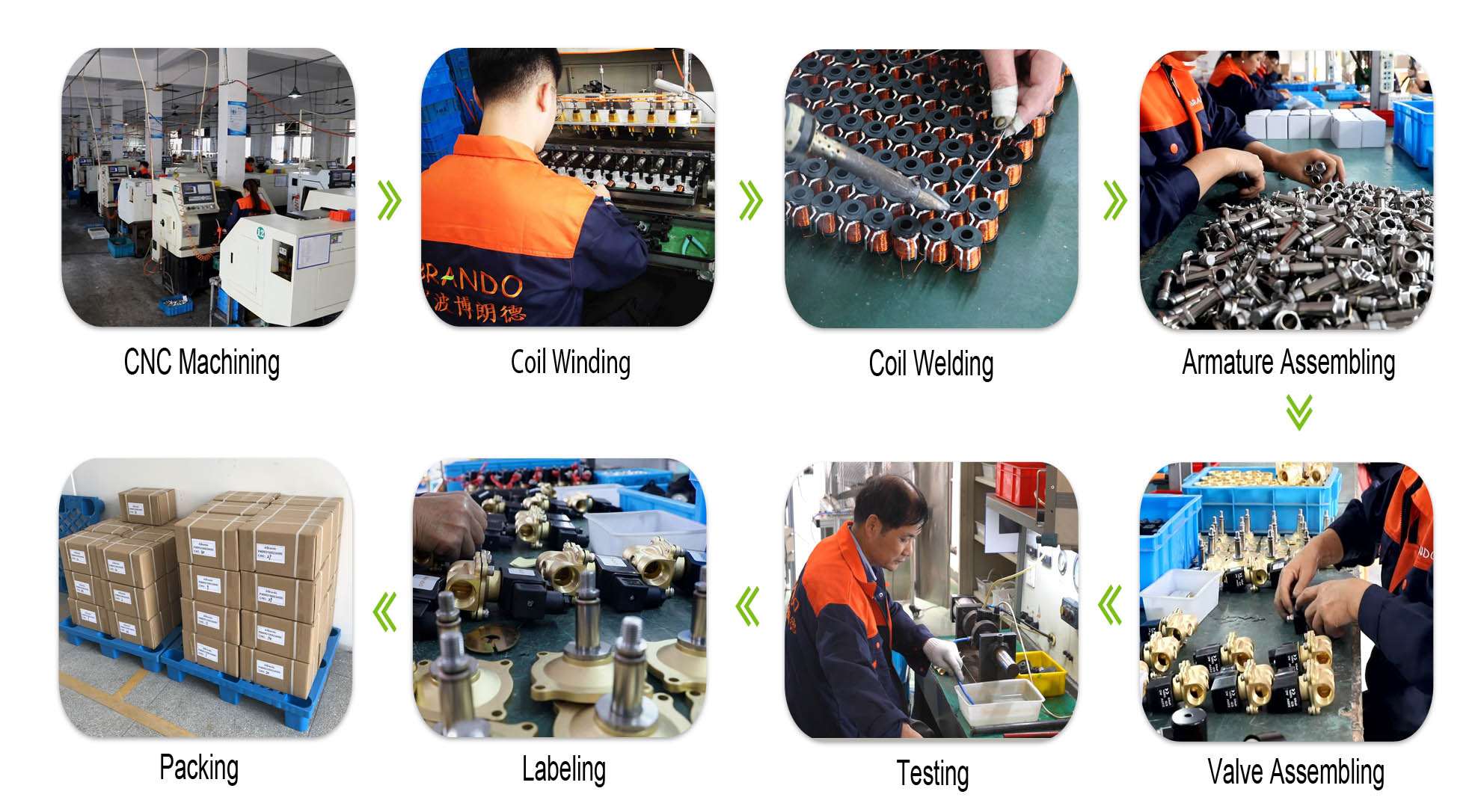

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
