BFEC DMF-Y-62S 2 1/2" Embedded Pulse Jet Valve
BFEC DMF-Y-62S Dust Collector Pulse Valve is a Submerged Pulse Jet Valve, The diaphragm pulse valve seat is embedded in the air bag for installation, with small resistance, good fluidity and high injection volume, which improves the momentum of load and expands the application range of air source pressure. The Full Immersionis solenoid pulse valve are usually used in dust removal system, dust cleaning system or bag filter.
Different pulse jet valve structure:
* Right Angle Type
* Submerged Type
* Quick Mount Type
* Straight Through Type
* Flanged Type

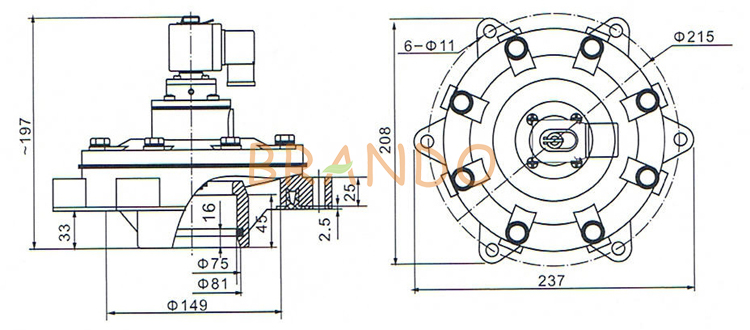

Overall Dimension of DMF-Y-62S Diaphragm Pulse Valve:
Specification of Dust Collector Solenoid Pulse Jet Valve:
|
Model Number
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
|
Port Size (Inch)
|
1''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
4''
|
|
Diaphragm Number
|
1
|
2
|
||||
|
Diaphragm Material
|
NBR, FKM
|
|||||
|
Body Material
|
Aluminum Alloy
|
|||||
|
Pressure Range
|
0.1 to 0.8 MPa
|
|||||
|
Voltage
|
24VDC, 110VAC, 220VAC
|
|||||
More SBFEC Type Pulse Valve for you to choose:
Right Angle Type
Quick Mount Type
Straight Through Type
Submerged Type
Diaphragm
Solenoid Coil
Solenoid Armature
Pulse Controller
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
