CA20T 3/4" Goyen Type Solenoid Pulse Jet Valve
The right angle pulse jet valve is suitable for the installation and connection of the air bag and the spray pipe of the dust collector. The air flow is smooth and can provide the required pulse of ash cleaner. The diaphragm divides the solenoid pulse jet valve into the front and rear air chambers. When the compressed air is connected, the compressed air enters the rear air chamber through the orifice. At this time, the pressure of the rear air chamber will close the diaphragm assembly to the output port of the valve, which belongs to the closed state.

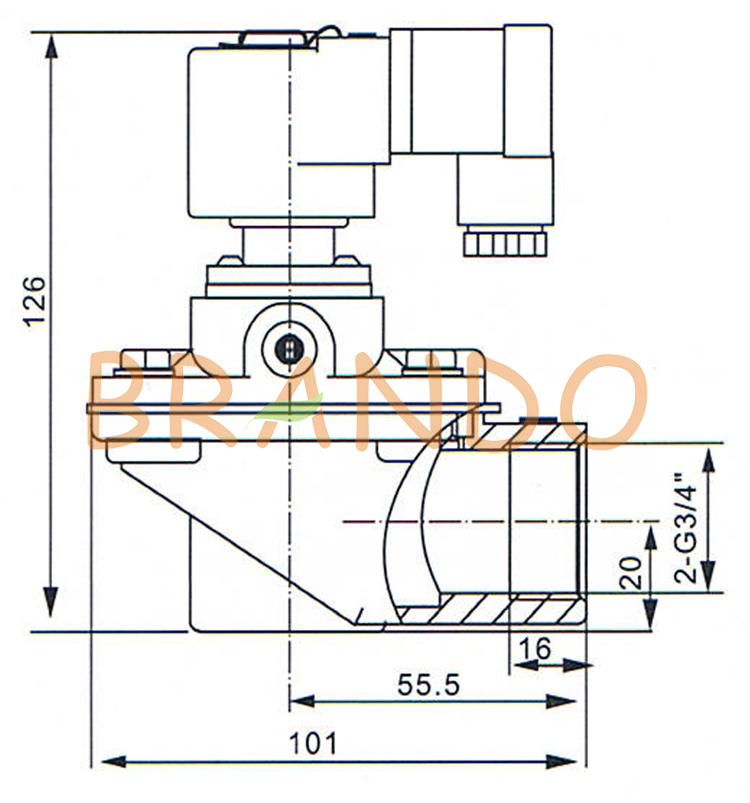

Dimension of CA20T Dust Collector Pulse Jet Valve:
Specification of Dust Extractor Solenoid Pulse Valve:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||
