Danfoss Type 3/8'' Flare EVR6 Solenoid Valve 032F8072
EVR/EVRH solenoid valves are direct or servo-operated solenoid valves for liquid, suction and hot gas lines. They are suitable for condensing units and power packs in all refrigeration, freezing and air conditioning applications and are compatible with fluorinated refrigerants R22/R407C, R404A/R507, R410A, R134a and R407C.
Versions are also available for high pressure refrigerants such as R410A and R744 (CO2) with a max working pressure of 45 bar g.The valves can be delivered as normally open or normally closed valves and with or without manual operation.EVR valves are available with flare, solder or flange connections.EVRC is a servo operated solenoid valve for use in liquid lines in refrigeration plant. EVRC allows flow in both directions and can therefore be used in liquid lines in refrigeration plant with hot gas or gas defrost. During the refrigeration period EVRC works as a normal solenoid valve, while during the defrost it allows the condensed liquid to return to the liquid manifold.

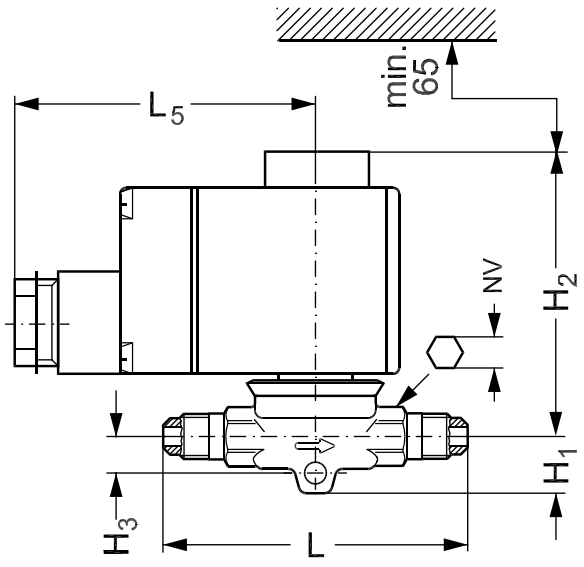

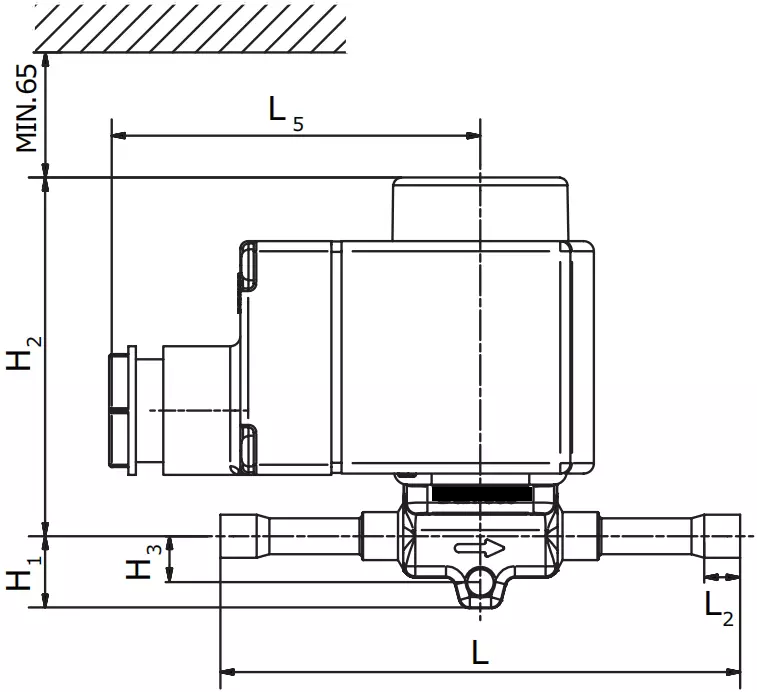

Dimension:
|
Model
|
Connection
|
H1
|
H2
|
L
|
L2
|
||
|
SAE (Thread)
|
ODF (Solder)
|
Inch
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
EVR3-014
|
EVR3-014S
|
1/4''
|
6
|
14
|
71
|
102
|
7
|
|
EVR3-038
|
EVR3-038S
|
3/8''
|
10
|
14
|
73
|
117
|
10
|
|
EVR6-038
|
EVR6-038S
|
3/8''
|
10
|
14
|
79
|
111
|
10
|
|
EVR6-012
|
EVR6-012S
|
1/2''
|
12.8
|
14
|
79
|
127
|
10
|
|
EVR10-012
|
EVR10-012S
|
1/2''
|
12.8
|
16
|
79
|
127
|
10
|
|
EVR10-058
|
EVR10-058S
|
5/8''
|
16
|
16
|
79
|
160
|
12
|
|
|
EVR15-058S
|
5/8''
|
16
|
19
|
86
|
176
|
12
|
|
|
EVR15-078S
|
7/8''
|
22
|
19
|
86
|
176
|
17
|
|
|
EVR20-078S
|
7/8''
|
22
|
20
|
90
|
191
|
17
|
|
|
EVR20-118S
|
1 1/8''
|
28.8
|
20
|
90
|
214
|
22
|
|
|
EVR22-0138S
|
1 3/8''
|
35
|
20
|
90
|
281
|
25
|
|
|
EVR25-118S
|
1 1/8''
|
28.8
|
38
|
138
|
256
|
22
|
|
|
EVR25-138S
|
1 3/8''
|
35
|
38
|
138
|
281
|
25
|
|
|
EVR32-138S
|
1 3/8''
|
35
|
47
|
111
|
281
|
25
|
|
|
EVR32-158S
|
1 5/8''
|
42
|
47
|
111
|
281
|
29
|
|
|
EVR40-158S
|
1 5/8''
|
42
|
47
|
111
|
281
|
29
|
|
|
EVR40-218S
|
2 1/8''
|
54
|
47
|
111
|
281
|
34
|
|
Type
|
Current Type
|
Connection Size
|
Max. working pressure
|
Kv valve [m3/h]
|
Cv valve [gal/min]
|
Coder No.
|
||
|
[mm]
|
[in.]
|
[bar]
|
[psi]
|
|||||
|
EVR2
|
a.c.
|
-
|
1/4
|
45.2
|
655
|
0.16
|
0.19
|
032F1201
|
|
a.c.
|
6
|
-
|
45.2
|
655
|
0.16
|
0.19
|
032F1202
|
|
|
EVR3
|
a.c./d.c.
|
-
|
1/4
|
45.2
|
655
|
0.27
|
0.32
|
032F1206
|
|
a.c./d.c.
|
-
|
3/8
|
45.2
|
655
|
0.27
|
0.32
|
032F1204
|
|
|
a.c./d.c.
|
6
|
-
|
45.2
|
655
|
0.27
|
0.32
|
032F1207
|
|
|
a.c./d.c.
|
10
|
-
|
45.2
|
655
|
0.27
|
0.32
|
032F1208
|
|
|
EVR6
|
a.c./d.c.
|
-
|
1/2
|
45.2
|
655
|
0.80
|
0.92
|
032F1209
|
|
a.c./d.c.
|
-
|
3/8
|
45.2
|
655
|
0.80
|
0.92
|
032F1212
|
|
|
a.c./d.c.
|
10
|
-
|
45.2
|
655
|
0.80
|
0.92
|
032F1213
|
|
|
a.c./d.c.
|
12
|
-
|
45.2
|
655
|
0.80
|
0.92
|
032F1236
|
|
|
EVR10
|
a.c./d.c.
|
-
|
1/2
|
35
|
500
|
1.9
|
2.2
|
032F1217
|
|
a.c./d.c.
|
12
|
-
|
35
|
500
|
1.9
|
2.2
|
032F1218
|
|
|
a.c./d.c.
|
16
|
5/8
|
35
|
500
|
1.9
|
2.2
|
032F1214
|
|
|
EVR15
|
a.c./d.c.
|
22
|
7/8
|
32
|
460
|
2.6
|
3.0
|
032F1225
|
|
a.c./d.c.
|
16
|
-
|
32
|
460
|
2.6
|
3.0
|
032F1227
|
|
|
a.c./d.c.
|
16
|
5/8
|
32
|
460
|
2.6
|
3.0
|
032F1228
|
|
|
EVR20
|
a.c.
|
22
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1240
|
|
a.c.
|
-
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1254
|
|
|
a.c.
|
-
|
1-1/8
|
32
|
460
|
5.0
|
5.8
|
032F1244
|
|
|
a.c.
|
28
|
-
|
32
|
460
|
5.0
|
5.8
|
032F1245
|
|
|
d.c.
|
22
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1264
|
|
|
d.c.
|
-
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1274
|
|
|
ECR22
|
a.c.
|
35
|
1-3/8
|
32
|
460
|
6.0
|
6.9
|
032F3267
|
|
EVR25
|
a.c./d.c.
|
-
|
1-1/8
|
32
|
460
|
10.0
|
11.6
|
032F2200
|
|
a.c./d.c.
|
-
|
1-1/8
|
32
|
460
|
10.0
|
11.6
|
032F2201
|
|
|
a.c./d.c.
|
28
|
-
|
32
|
460
|
10.0
|
11.6
|
032F2205
|
|
|
a.c./d.c.
|
28
|
-
|
32
|
460
|
10.0
|
11.6
|
032F2206
|
|
|
a.c./d.c.
|
-
|
1-3/8
|
32
|
460
|
10.0
|
11.6
|
032F2207
|
|
|
a.c./d.c.
|
-
|
1-3/8
|
32
|
460
|
10.0
|
11.6
|
032F2208
|
|
|
EVR32
|
a.c./d.c.
|
-
|
1-5/8
|
32
|
460
|
16.0
|
18.5
|
042H1103
|
|
a.c./d.c.
|
-
|
1-5/8
|
32
|
460
|
16.0
|
18.5
|
042H1104
|
|
|
a.c./d.c.
|
35
|
-
|
32
|
460
|
16.0
|
18.5
|
042H1105
|
|
|
a.c./d.c.
|
35
|
-
|
32
|
460
|
16.0
|
18.5
|
042H1106
|
|
|
a.c./d.c.
|
42
|
-
|
32
|
460
|
16.0
|
18.5
|
042H1107
|
|
|
a.c./d.c.
|
42
|
-
|
32
|
460
|
16.0
|
18.5
|
042H1108
|
|
|
EVR 40
|
a.c./d.c.
|
-
|
1-5/8
|
32
|
460
|
25.0
|
28.9
|
042H1109
|
|
a.c./d.c.
|
-
|
1-5/8
|
32
|
460
|
25.0
|
28.9
|
042H1110
|
|
|
a.c./d.c.
|
-
|
2-1/8
|
32
|
460
|
25.0
|
28.9
|
042H1111
|
|
|
a.c./d.c.
|
-
|
2-1/8
|
32
|
460
|
25.0
|
28.9
|
042H1112
|
|
|
a.c./d.c.
|
42
|
-
|
32
|
460
|
25.0
|
28.9
|
042H1113
|
|
|
a.c./d.c.
|
42
|
-
|
32
|
460
|
25.0
|
28.9
|
042H1114
|
|
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
