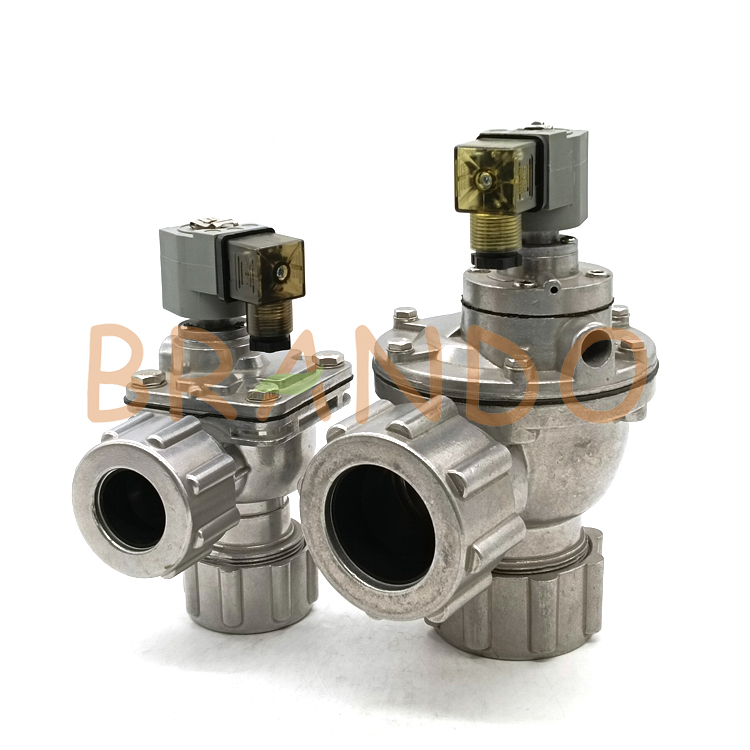

Goyen Type CA45T 1.5" Threaded Pulse Valve
The Goyen Tpye CA45T is a right angle solenoid pulse valve, and the inlet and outlet of the threaded pulse valve adopt special nuts and special sealing rings, the outer wall of the smooth inlet and exhaust pipe is sealed with the port end of the valve body, so that the pulse jet valve has the advantages of simple structure, convenient operation and reliable sealing.
Specification of Dust Extractor Solenoid Pulse Valve:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||

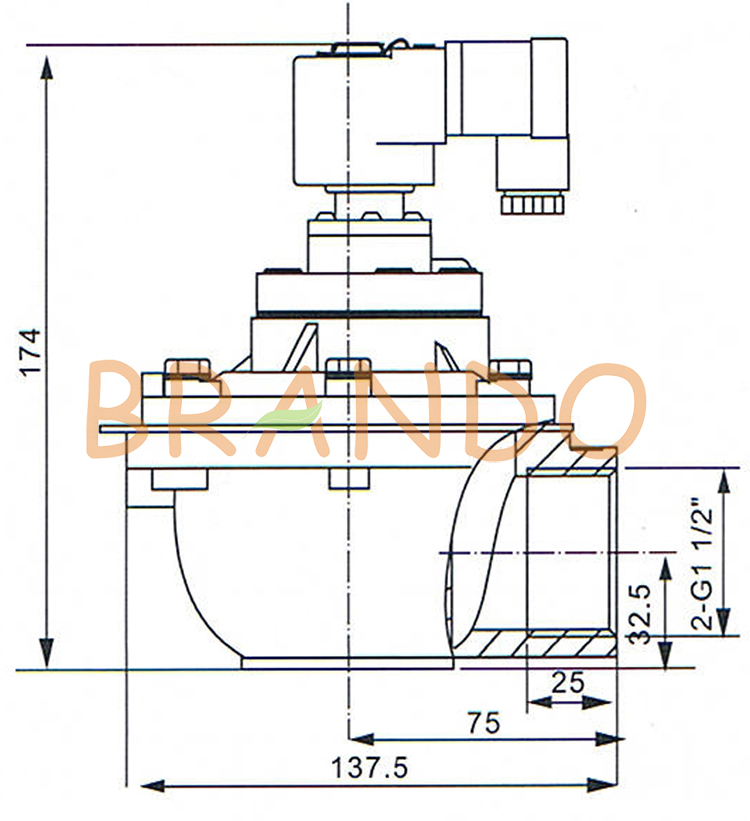

Main Dimension of CA45T Dust Collector Pulse Jet Valve:
More Goyen Type Solenoid Pulse valve for you to choose:

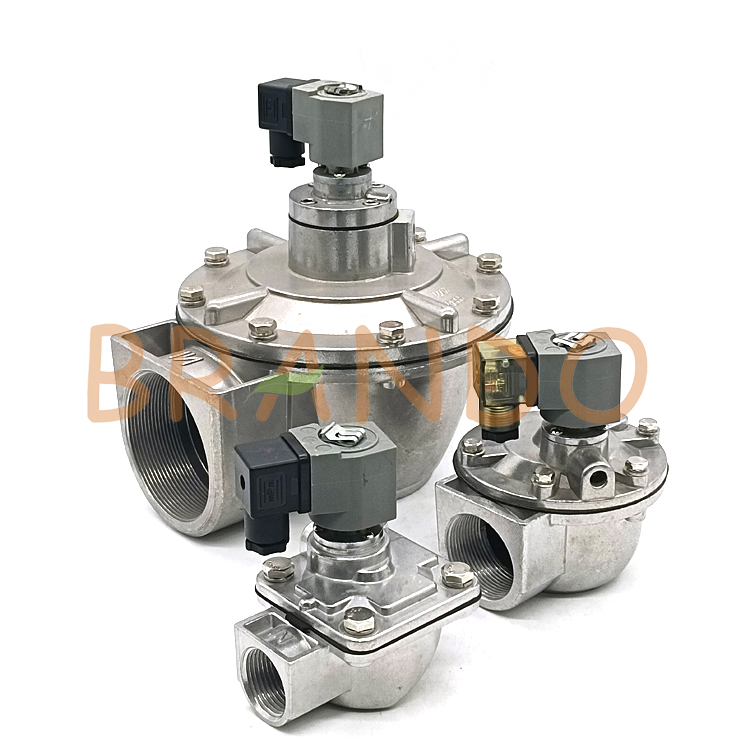

T Series
DD Series
FS Series
MM Series
RCA Series

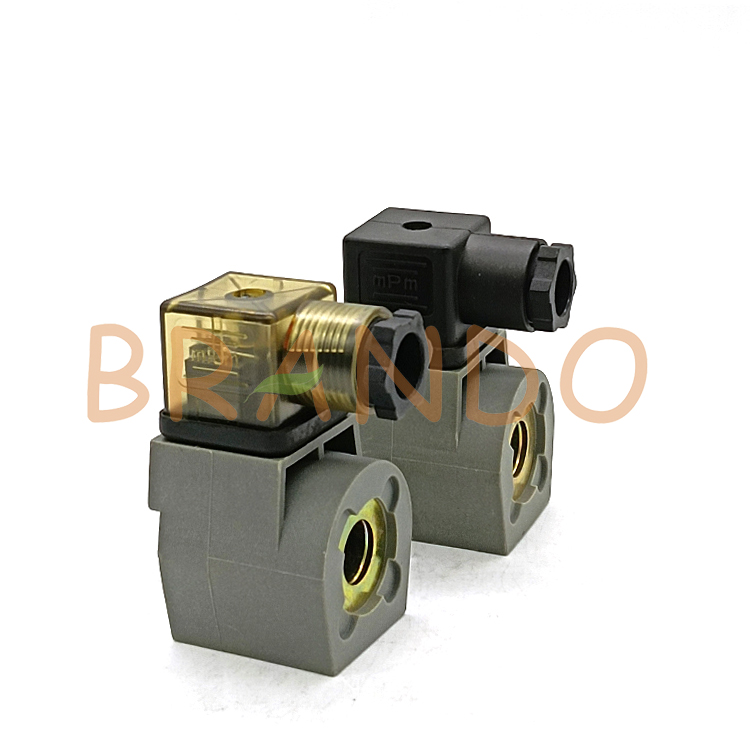

Solenoid Coil

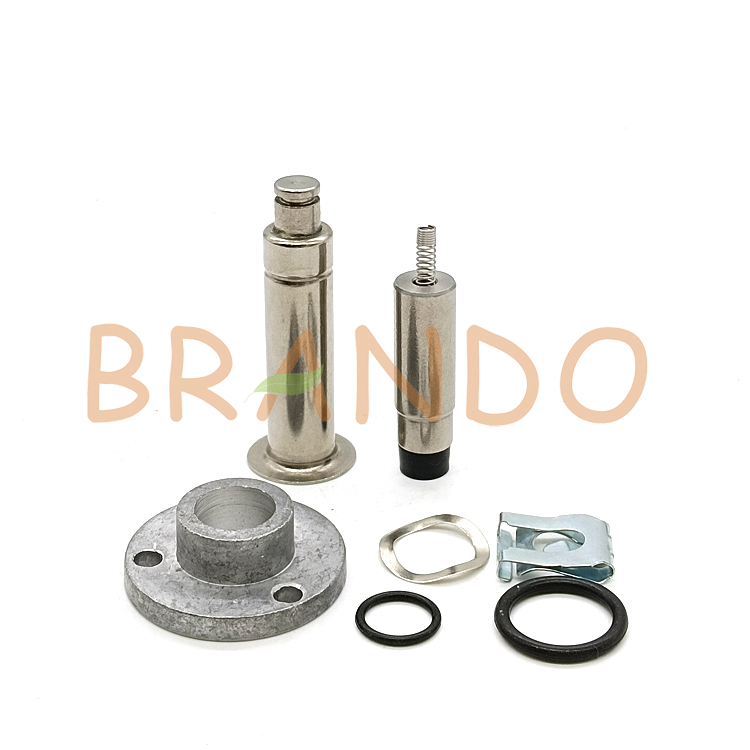

solenoid armature
Diaphragm
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
