2" Goyen Type CA50T Right Angle Pulse Valve
The Goyen Type CA50T is a 2 inch right angle pulse valve , the pulse jet valve is composed of an electromagnetic pilot head, a diaphragm and a valve body. The area of the rear cavity of the diaphragm is larger than that of the front cavity, and the pneumatic force is large, so that the diaphragm is in the closed position. The diaphragm in the pulse valve divides the solenoid valve into the front and rear air chambers.
Specification of Dust Extractor Dust Collector Pulse Valve:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||

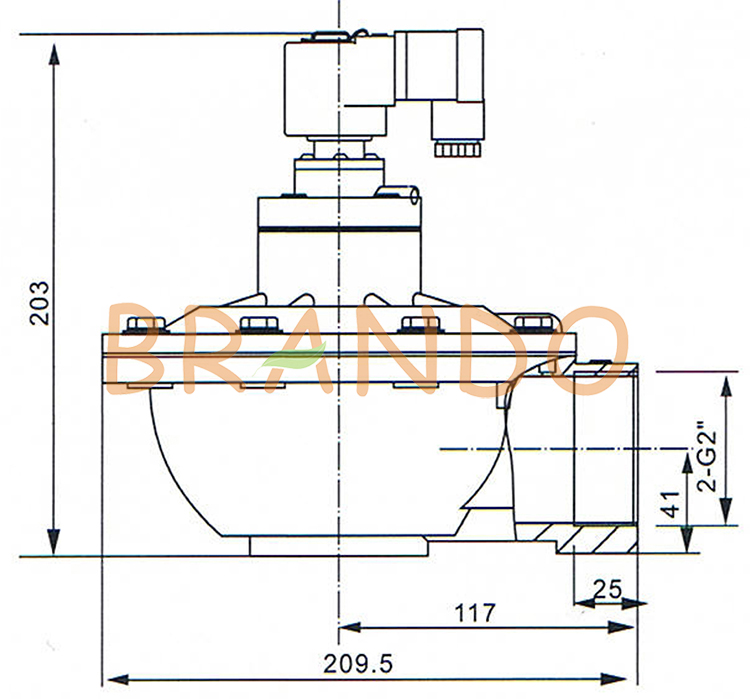

Main Dimension of CA50T Solenoid Pulse Jet Valve:
More Goyen Type Solenoid Pulse valve for you to choose:
T Series
DD Series
FS Series
MM Series
RCA Series
Solenoid Coil
solenoid armature
Diaphragm
