2S025-08 1/4'' Stainless Steel Solenoid Valve
5 year ago
2S025-08 1/4'' Stainless Steel Electric Solenoid Valve
Brando 2S025-08 normally closed (N/C) electric solenoid valve is constructed with a durable stainless steel body, two-way inlet and outlet ports with one-quarter inch (1/4") female threaded (NPT) connections, and NBR/Nitrile seals. Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel. Suitable for outdoor use. Not for use underwater. Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, water exchange for aquarium, air horn, or bleeding moisture from an air tank.

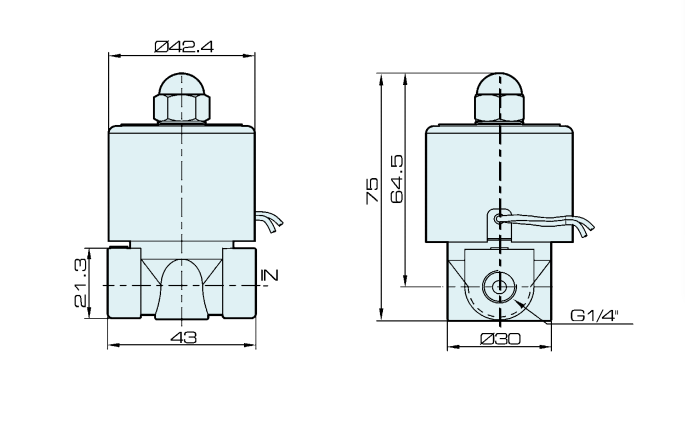

Overall dimension of 2S025-08 G1/4'' NC Stainless Steel Solenoid Valve:
Technical parameters of 2S series Stainless Steel 304 Electric Solenoid Valve:
Model
2S025-08
2S040-10
2S160-10
2S160-15
2S200-20
2S250-25
2S350-35
2S400-40
2S500-50
Working medium
Air, Water, Steam, Gas
Body material
Stainless steel 304
Seal material
NBR/Nitrile
Operation
Direct acting
Port size
1/4''
3/8''
3/8''
1/2''
3/4''
1''
1 1/4''
1 1/2''
2''
Operating pressure
0 to 1.0mpa
Operating temperature
-5 to 100℃
Fluid viscosity
Below 20cst

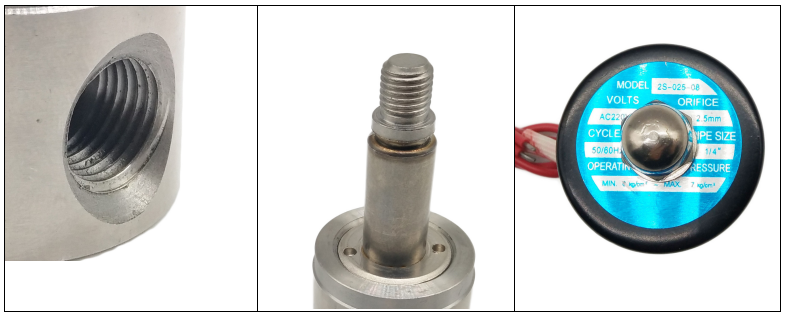

Details of 1/4'' Inch Direct Operated NBR Seal Solenoid Water Valve:
Application of 2/2 Way Direct Acting Water 2 Series Solenoid Valve:
The information below is also very important! about voltage selection:
1. Standard Voltage: DC24V; 110 V AC / 50 hz, 220 V AC / 50 HZ; 110 V AC / 60 HZ, 220 V AC / 60 HZ.
2. Also have DC12V and other voltages. DC12V power is weak, so fluid pressure is lower than other voltages.
Valve's installation:
Direction must follow the flow of flow of the arrow fluid marked on the valve body.
Installation: it must be in a horizontal position.
Fluid pressure: work under the requirements valves.
Fluid requirement: clean without impurities.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
