2S040-10 3/8'' Stainless Steel Solenoid Valve
5 year ago
2S040-10 3/8'' Stainless Steel Solenoid Valves For Water
The 2S040-10 normally closed direct acting stainless steel solenoid valve is a "switch" for industrial process automation control systems. The device can be automatically turned on or off after receiving the electronic control signal to realize the on-off or flow regulation control of the fluid medium in the pipeline. This series of solenoid valves can be widely used in textile, printing, chemical, plastics, rubber, pharmaceutical, food, building materials, machinery, electrical appliances, surface treatment and other production and scientific research departments as well as bathroom, canteen, air conditioning and other people's daily life facilities. Mainly used for the control of liquid media such as corrosive liquids, ultra-clean liquids and edible liquids.
Youtube video of 2S040-10 G3/8'' Direct Acting Stainless Steel Solenoid Valve:

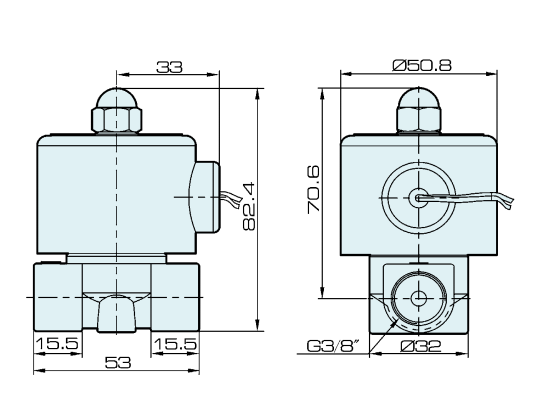

Overall dimension of 2S040-10 NC 2 Way Stainless Steel Solenoid Valve:
Technical parametes of 2S Series 2/2 Way NC Electric Stainless Steel Solenoid Valve:
Model
2S025-08
2S040-10
2S160-10
2S160-15
2S200-20
2S250-25
2S350-35
2S400-40
2S500-50
Working medium
Air, Water, Steam, Gas
Body material
Stainless steel 304
Seal material
NBR/Nitrile (Common), VITON (Available)
Operation
Direct acting
Port size
1/4''
3/8''
3/8''
1/2''
3/4''
1''
1 1/4''
1 1/2''
2''
Operating pressure
0 to 1.0mpa
Operating temperature
-5 to 100℃
Fluid viscosity
Below 20cst

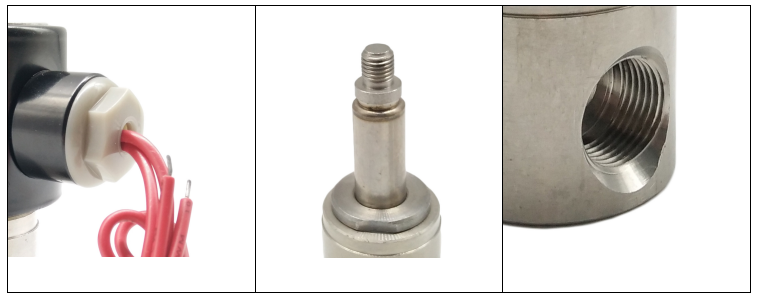

Details of 2/2 Way Plunger Direct Operating Corrosion-resistant Solenoid Valve:
Production process of NBR/Nitrile Seals Stainless Steel Body Water Solenoid Valve:
Stainless steel solenoid valve characteristics:
1) The protection grade for this series solenoid valve is IP67.
2) These valves are made of stainless steel and can work in corrosive environments.
3) Pressure unit: 1kgf/cm2=1bar=0.1MPa=100KPa=14.5psi
4) The working temperature for Viton or PTFE can reach -20℃~169℃.
5) Different thread types can be offered according to customers' requirements, e.g.: G, PT, NPT etc.
OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80℃). If energized continuously for more than 8 hours the coil may burn.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
