2S160-15 1/2'' Stainless Steel Solenoid Valve
5 year ago
220VAC 2S160-15 1/2 Inch Anti Corrosion Solenoid Valve
2S, SUS & SUW Series Solenoid Valve:
2S, SUS & SUW series solenoid valve body is made of stainless steel 304. It is large flow rate, simple structure and waterproof. It can be used in corrupting environment, which is the best choice for the food、medical industries. It has port size 1/8”, 1/4'', 3/8”, 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''; the orifice size from 2.5mm up to 50mm.
PRODUCT FEATURES:
1. The electric solenoid valve is made of high quality material, with long serving life.
2. Easy to install and a great replacement of the broken one.
3. Compact structure, small size, light weight, convenient to mount and dismount.
4. Stainless steel valve body, anti-corrosion, sturdy and durable.
5. Adopt heat resistant electromagnetic coil and standard seal material, safe and stable.
YouTube Video of 1/2'' SS304 NC 2S160-15 SUW-15 UNID Type Solenoid Valve:

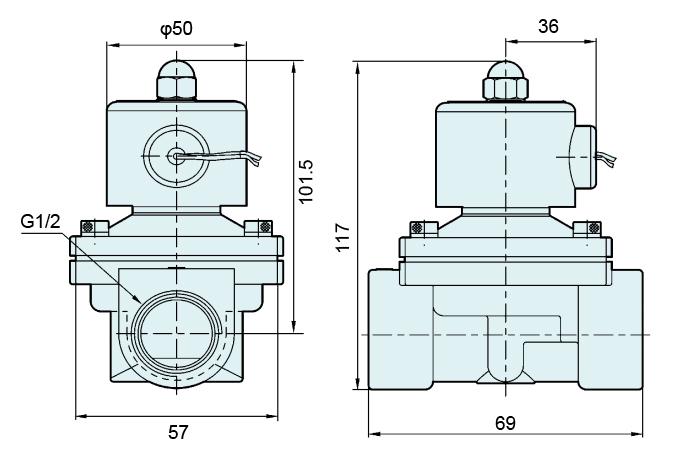

Overall dimension of G1/2'' Stainless Steel 304 Semi-direct NBR Diaphragm Valve:
Technical data of 2S, SUS, SUW Series Normally Closed Solenoid Diaphragm Valve:
2S Series
Uni-D Type
PIPE SIZE
CV
ORIFICE
FLUID TEMP. (°C)
Operating Pressure kgf/ cm2 (bar)
Water
Air
Light oil
2S025-06
SUS-6
1/8''
0.23
2.5mm
-5°C- +80°C
0-7
0-7
0-7
2S025-08
SUS-8
1/4''
0.23
2.5mm
-5°C- +80°C
0-7
0-7
0-7
2S040-10
SUS-10
3/8''
0.58
4mm
-5°C- +80°C
0-7
0-7
0-7
2S160-10
SUW-10
3/8"
4.5
15mm
-5°C- +80°C
0-5
0-7
0-5
2S160-15
SUW-15
1/2''
4.5
15mm
-5°C - +80°C
0-5
0-7
0-5
2S200-20
SUW-20
3/4"
8.6
20mm
-5°C- +80°C
0-5
0-7
0-5
2S250-25
SUW-25
1"
12
25mm
-5°C- +80°C
0-5
0-7
0-5
2S350-35
SUW-35
1-1/4"
24
35mm
-5°C- +80°C
0-5
0-7
0-5
2S400-40
SUW-40
1-1/2"
28
40mm
-5°C - +80°C
0-5
0-7
0-5
2S500-50
SUW-50
2"
48
50mm
-5°C - +80°C
0-5
0-7
0-5
Details enlargement of 1/2 inch 2S160-15 SUW-15 Uni-d Type Electric Solenoid Valve:
Applicaitons display of NC Stainless Steel 304 Uni-d Type Electromagnetic Valve:
Safety Note:
Standard valves are supplied with continuous duty coils. The proper class of insulation for the service is indicated on the coil body. The coil temperature may rise significantly if energized for extended periods—this is normal. Although the coil is made of flame retardant material, misuse of the coil could create fire hazards & generate smoke and/or a burning odor. If these conditions are encountered, the coil temperature has risen above safe levels and the power should be disconnected immediately.
Operation:
This valve is a two-way, normally closed, direct-lift valve & does not require a minimum differential pressure to operate. As shown in the diagrams below, when the coil is de-energized the plunger & flexible diaphragm sit on the main valve orifice. The working medium flows through a tiny “bleed orifice” and pressurizes the cavity above the diaphragm — this system pressure, along with the spring force, seals the valve. When the valve is energized the diaphragm is pulled away from the main orifice, allowing fluid to flow through the valve. Since the bleed orifice is dimensionally smaller than the main orifice, the system pressure cannot rebuild on the top of the diaphragm as long as the main orifice remains open.
