2W160-15 1/2'' Brass Solenoid Valve
5 year ago
1/2'' UW-15 Uni-D Type Brass Solenoid Valve 220VAC
Uni-D Type Brass Solenoid Valve: UD-6, UD-8, UD-10, UW-10, UW-15, UW-20, UW-25, UW-35, UW-40, UW-50
2W Series Solenoid Valve: 2W025-06, 2W025-08, 2W040-10, 2W160-15, 2W200-20, 2W250-25, 2W350-35, 2W400-40, 2W500-50
YouTube video of UW-15 Brass Solenoid Valve:

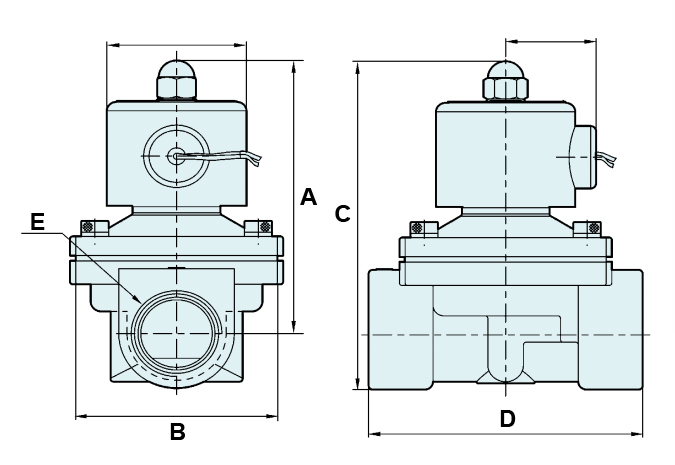

Overall Dimension of Solenoid Valve:
|
2S Series
|
2W Series
|
A
|
B
|
C
|
D
|
E
|
|
2S025-06
|
2W025-06
|
64.5
|
30
|
75
|
43
|
G1/8''
|
|
2S025-08
|
2W025-08
|
64.5
|
30
|
75
|
43
|
G1/4''
|
|
2S040-10
|
2W040-10
|
70.6
|
32
|
82.4
|
53
|
G3/8''
|
|
2S160-10
|
2W160-10
|
101.5
|
57
|
117
|
69
|
G3/8''
|
|
2S160-15
|
2W160-15
|
101.5
|
57
|
117
|
69
|
G1/2''
|
|
2S200-20
|
2W200-20
|
107
|
57
|
123.5
|
73
|
G3/4''
|
|
2S250-25
|
2W250-25
|
111.5
|
73.5
|
134.5
|
99
|
G1''
|
|
2S350-35
|
2W350-35
|
142
|
95
|
172
|
123
|
G1-1/4''
|
|
2S400-40
|
2W400-40
|
142
|
95
|
172
|
123
|
G1-1/2''
|
|
2S500-50
|
2W500-50
|
172
|
123
|
209
|
168
|
G2''
|
Technical Data of 2W & 2S Series Brass Solenoid Valve:
|
2W Series
|
2W025-08
|
2W040-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
2S Series
|
2S025-08
|
2S040-10
|
2S160-15
|
2S200-20
|
2S250-25
|
2S350-35
|
2S400-40
|
2S500-50
|
|
Orifice Size
|
2.5
|
4
|
15
|
20
|
25
|
35
|
40
|
50
|
|
Port Size
|
1/4''
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
|
Medium
|
Water, Air, Oil, Gas
|
|||||||
|
Action
|
Direct Acting
|
Semi-Direct Acting
|
||||||
|
Function
|
2 Way, Normally Closed
|
|||||||
|
Fluid Viscosity
|
20 CST below
|
|||||||
|
Pressure
Range
|
0 to 1.0 Mpa
|
|||||||
|
Temperature Range |
-5 to +100℃
|
|||||||
Application Examples of Brass Solenoid Valve:
More Solenoid Valve for you to choose:
1. According to Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve
2. According to Valve Operation: Direct Acting Solenoid Valve, Semi Direct Acting Solenoid Valve, Pilot Operated Diaphragm Valve, Pilot Operated Piston Valve.
