5/3 Way Pneumatic Air Control Valve 4V230C-08
A 5/3-way valve has five ports and three states. They have two solenoids that each can control a valve state. If no solenoid is energized, the valve returns to the central state. Therefore, the valve is mono-stable. The central state can have different functions, such as closing off all ports. An example of an application is a double acting cylinder that has to be locked at intermediate positions along the stroke.
Ordering Code:
| Model | 4V | 2(3) Position 5 Way |
| Code | 2 | 200 Series |
| Valve Type | 30C |
10:Single solenoid 5/2 way 20:Double solenoid 5/2 way 30C:Double solenoid 5/3 way closed center 30E:Double solenoid 5/3 way exhaust center 30P:Double solenoid 5/3 way pressure center |
| Port Size | 08 |
M5:M5x0.8 06:1/8'' 08:1/4'' |
| Voltage | - |
A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
| Electrical Entry | - |
Blank:Terminal I:Grommet |
| Thread Type | - |
Blank:PT G:G T:NPT |
Specification:
|
Model
|
4V210-06
4V220-06
|
4V230C-06
4V230E-06
4V230P-06
|
4V210-08
4V220-08
|
4V230C-08
4V230E-08
4V230P-08
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
|
Acting
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=Exhaust=1/8''
|
In=Out=1/4'' Exhaust=1/8''
|
||
|
Orifice Size
|
25.00 mm2 (Cv=0.78)
|
18.00 mm2 (Cv=0.67)
|
30.00 mm2 (Cv=0.89)
|
18.00 mm2 (Cv=0.67)
|
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
|||
|
Proof Pressure
|
1.5MPa (215psi)
|
|||
|
Temperature ℃
|
-20~70
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|

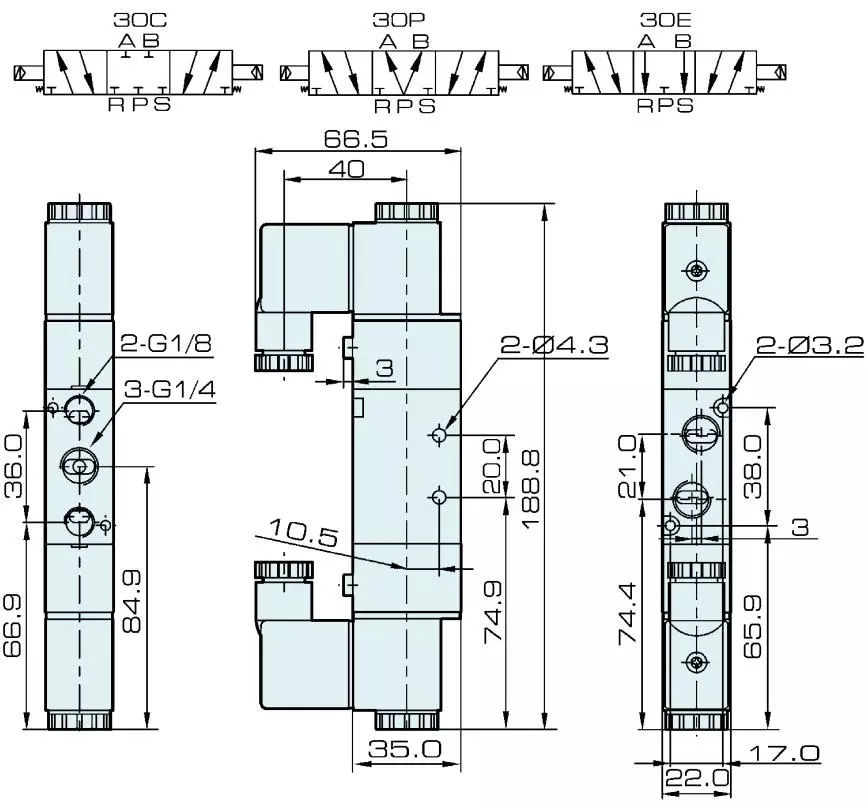

Overall Dimension:
Details

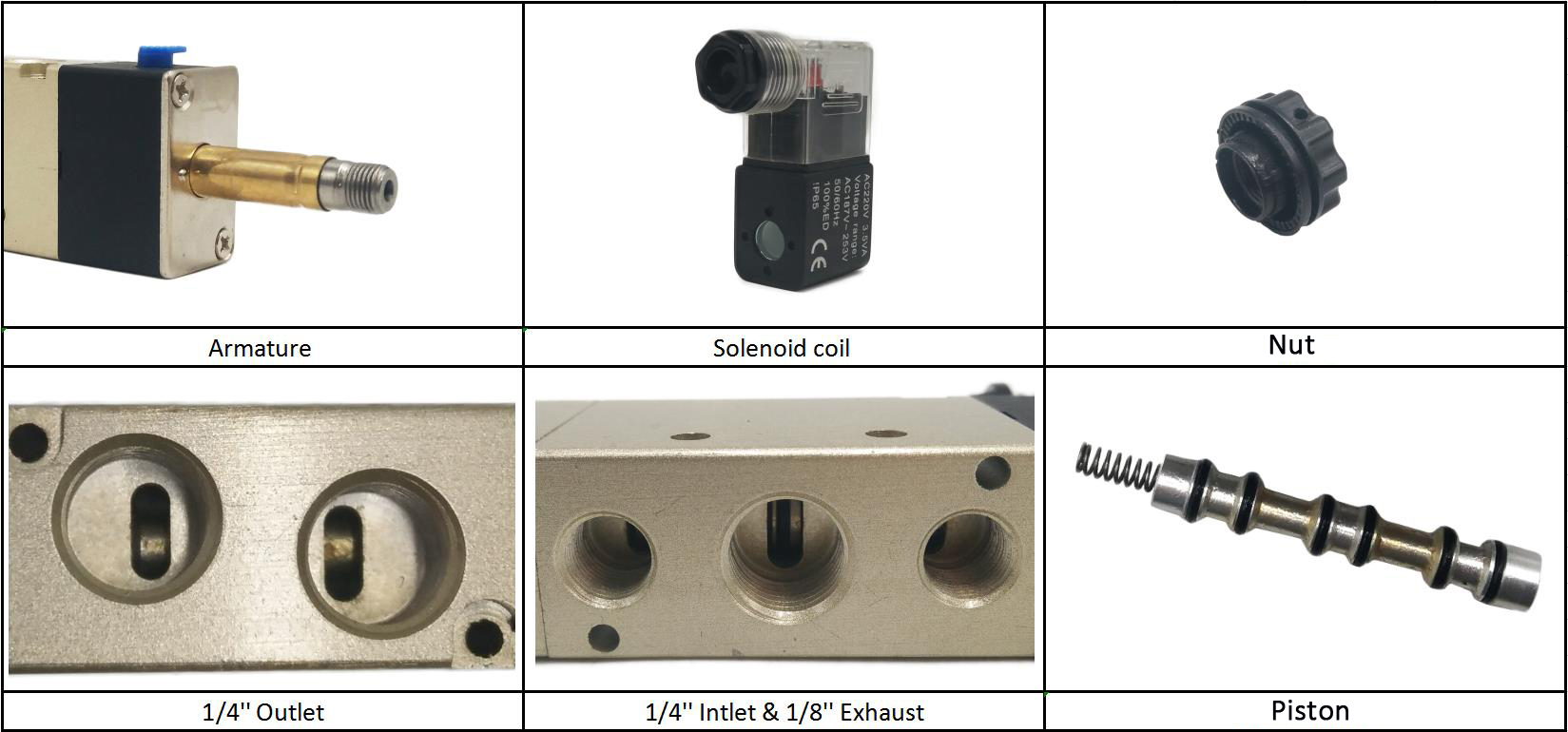

Product Features:
1. High-strength aluminum alloy botton cover 2. One-time machining of valve lever by CNC, high precision
3. Valve body was machining by CNC, clean and beautifull
4. spacial processing of inner hole, small friction resistance and low starting pressure
5. High-precision pilot accessories, excitation time of only 0.05 seconds
6. imported seals, the life up to 10 millions of times
7. Aluminum alloy piston is not easy to damage
8. Embedded copper nut not easy to loose
9. with a manual device for installaton and testing
10. Copper coil has avariety of voltage available for selection
