4V320-10
5 year ago
4V320-10 3/8'' Double Solenoid Valve AC220V DC24V
4V320-10 pneumatic air control valve is consist of solenoid coil ,aluminum alloy body, armature assemble, and screw. Valve body was machining by VNC, clean and beautiful. High strength aluminum alloy body, Aluminum alloy piston is not easy to damage. Also have high-precision pilot accessories, with a manual device for installaton and testing. Solenoid coil has avriety of voltage available for selection.
Ordering Code:
| Model | 4V | 2(3) Position 5 Way |
| Code | 3 | 300 Series |
| Valve Type | 20 |
10:Single solenoid 5/2 way 20:Double solenoid 5/2 way 30C:Double solenoid 5/3 way closed center 30E:Double solenoid 5/3 way exhaust center 30P:Double solenoid 5/3 way pressure center |
| Port Size | 10 |
M5:M5x0.8 06:1/8'' 08:1/4'' |
| Voltage | - |
A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
| Electrical Entry | - |
Blank:Terminal I:Grommet |
| Thread Type | - |
Blank:PT G:G T:NPT |
Specification:
|
Model
|
4V310-08
4V320-08
|
4V330C-08
4V330E-08
4V330P-08
|
4V310-10
4V320-10
|
4V330C-10
4V330E-10
4V330P-10
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
|
Acting
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=Exhaust=1/4''
|
In=Out=3/8'' Exhaust=1/4''
|
||
|
Orifice Size
|
25.00 mm2 (Cv=1.40)
|
18.00 mm2 (Cv=1.00)
|
30.00 mm2 (Cv=1.68)
|
18.00 mm2 (Cv=1.00)
|
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating Pressure
|
0.15~0.8MPa(21~114psi)
|
|||
|
Proof Pressure
|
1.5MPa(215psi)
|
|||
|
Temperature ℃
|
-20~70
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. frequency
|
4 cycle/sec
|
4 cycle/sec
|
4 cycle/sec
|
4 cycle/sec
|

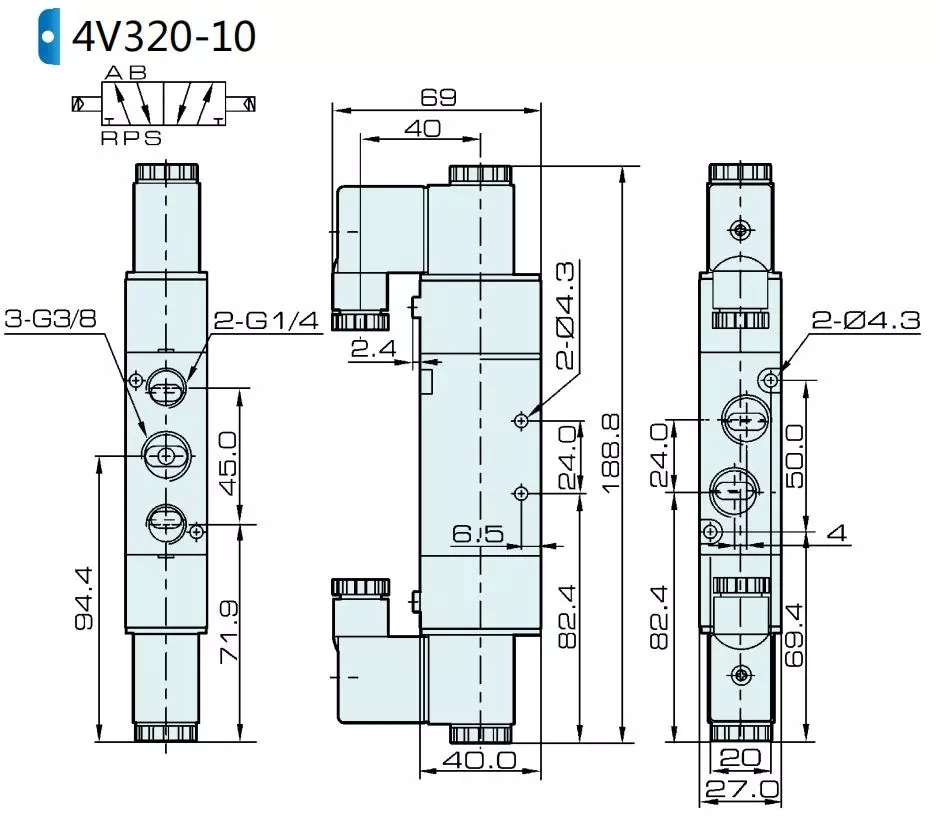

Overall Dimension:

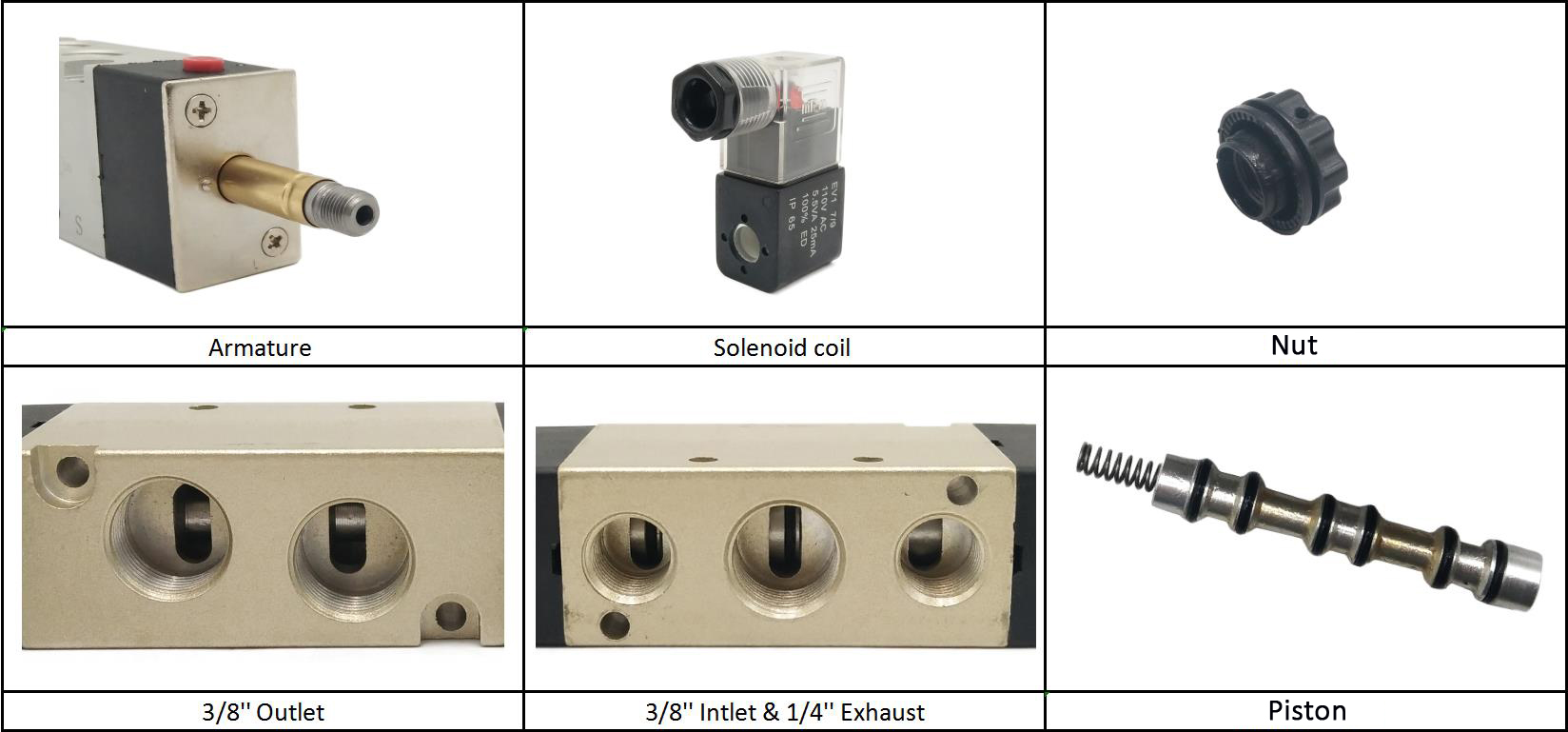

Details :
Product Features:
1. Pilot-oriented mode: Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
