4V330C-10

3/8'' BSP 4V330C-10 AirTAC Type Reverse Solenoid Valve

AirTAC Type 4V330C-10 pneumatic solenoid valve is a 5/3 pneumatic valve with five ports, three positions and two solenoid coils. It is electrically controlled and is usually used to control a cylinder.

The 4V300 series has the following three types:
4V310-10 is a 5/2 pneumatic valve with 1 solenoid coil;
4V320-10 is a 5/2 pneumatic valve with 2 solenoid coils;
4V330-10 is a 5/3 pneumatic valve with 2 solenoid coils.

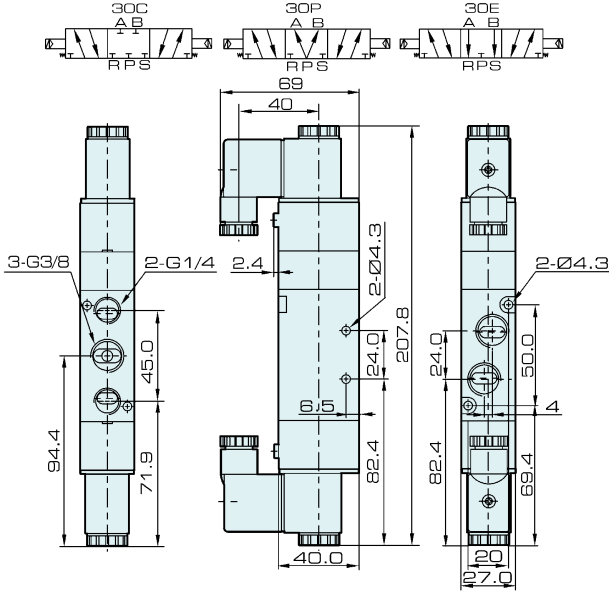

Overall dimension of 4V330C-10 AirTAC Type 5/3 Way Solenoid Valve:

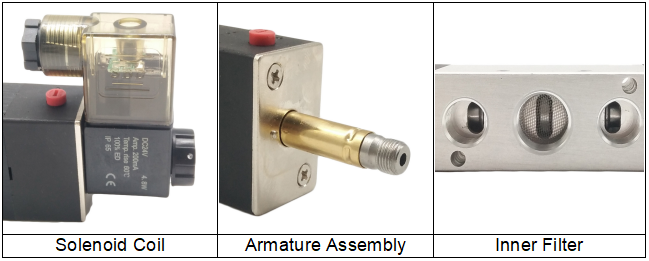

Spare part details of 4V330C-10 AirTAC Type Reverse Solenoid Valve:

Specifications of 4V300 Series AirTac Type Pneumatic Solenoid Valves:

Installation Instructions:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
