4V410-15

4V410-15 1/2'' Single Solenoid Air Control Valve

Most 5/2-way valves have a movable spool with seals along the length in a cylinder. The valve ports connect to this central cylinder. By moving the spool through the cylinder, the valve ports are connected or blocked. Furthermore, the valve can be direct operated or pilot operated. With direct operation, the actuator is directly connected to the spool. With pilot operation, the valve uses the inlet pressure to help move the spool. The valve contains a small internal pneumatic cylinder that actuates the spool. The filling and emptying of this cylinder is controlled by the actuator, for example a solenoid. 5/2-way valves are usually pilot operated.

Ordering Code:

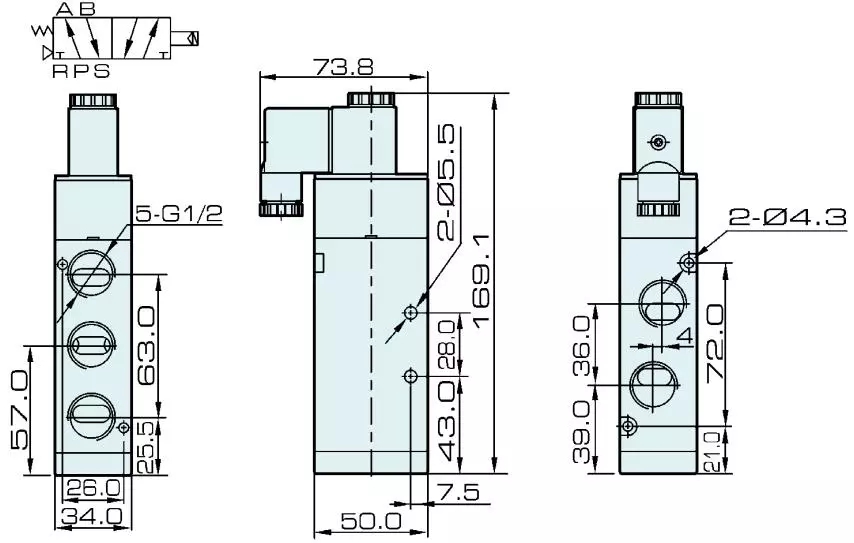

Details :

Product Features:
1. Pilot-oriented mode: Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
