4V430C-15

4V430C-15 5 Way Pneumatic Directional Control Valve AC220V

Pneumatic solenoid valves usually have a slide valve design. They consist of an aluminum body with cylindrical holes. The different ports of the valve are connected to the cylinder. The spool valve in the cylinder has multiple seals along its length. By sliding the spool back and forth, you can connect or close different ports. For spool designs, it is very difficult to achieve a leak-free seal. Therefore, the internal leakage of the pneumatic solenoid valve is always small (but acceptable). With these types of valves, air can flow through the valve in both directions. This is called bidirectional.

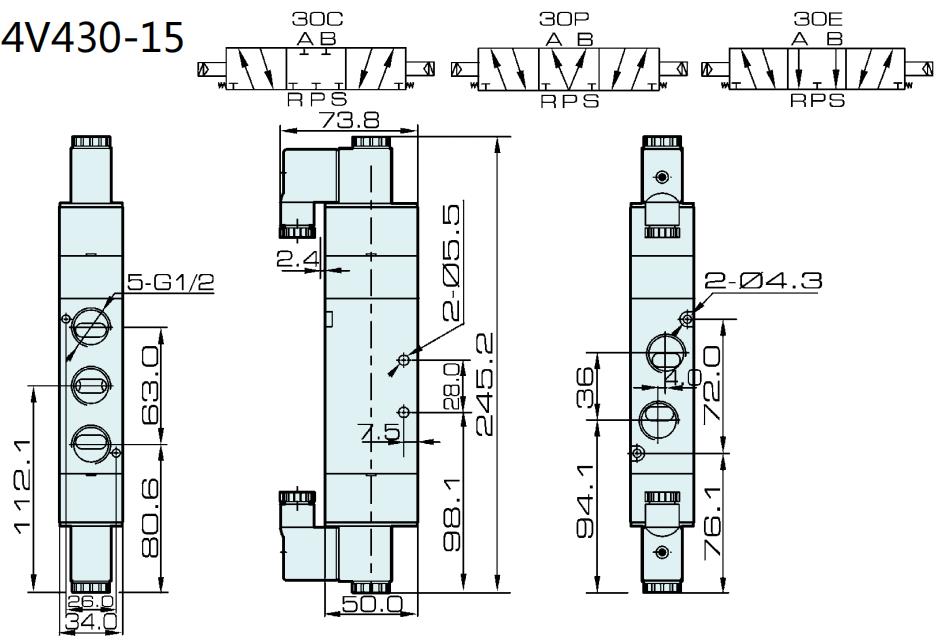

Main Dimension of 4V430C-15 Airtac Type 5/3 Way Pneumatic Solenoid Valve:

Spare Part Details of 4V430C-15 AirTac Type 5/3 Way Pneumatic Solenoid Valve:

Specifications of 4V400 Series AirTAC Type Pneumatic Solenoid Valves:

Brando Factory Production Video of 4V Series 5/3 Way Pneumatic Solenoid Valve:

Pneumatic solenoid valve can be divided into two basic types, direct-acting and pilot-operated, each type has its characteristics and advantages, depending on your requirements.

Pilot operated solenoid valves use direct acting solenoid valves as pilot operators. The pilot operator's function is to change the larger directional control valve of the piston poppet or spool valve design. Advantages of pilot operated pneumatic solenoid valves:

1. Mainly designed for effective control of cylinders and pneumatic actuators.
2. Achieve high flow relative to physical size.
3. Less current (amps) consumed relative to flow.
4. There are multiple configurations to choose from, especially the four-way function.
