Fiber Coupled High Power Laser System
5 year ago
The high power fiber coupled laser system integrates laser diode, laser cavity, fiber coupling optics, laser power supply, LD current and crystal temperature control into ONE box. The power is available up to 100W with different dimensions. The characteristics of compact design and convenient functions make it very suitable for pumping, scientific research, industrial and medical applications.
As the leading manufacturer and supplier in China, CNI is dedicated to offer best quality lasers , laser systems, High power laser, optical measuring equipment, Single longitudinal mode laser, laser processing equipment, High energy laser,machine vision and the photoelectric detection equipment.
|
111Features:
|
11Applications:1111111111111111111
|
|
Model |
FC-W-xxxA (x Stands for wavelength) |
|||||||||||||
|
Available wavelengths (nm) |
793 |
808 |
810 |
878.6 |
880/885 |
915 |
938 |
940 |
976 |
980 |
||||
|
Central wavelengths tolerance (nm) |
±3 |
±3 |
±10 |
±0.5 |
±3 |
±35 |
±3 |
±310 |
±3 |
±3/±10 |
||||
|
Available power (W) |
40 |
10, 20, 30, 40 |
20, 40 |
30 |
25, 30 |
|||||||||
|
Red pilot light (P) |
Available on request |
|||||||||||||
|
Fiber core diameter (um) |
400 |
|||||||||||||
|
Fiber NA |
0.22 |
|||||||||||||
|
Fiber connector |
SMA905 |
|||||||||||||
|
Fiber length (m) |
2 |
|||||||||||||
|
Output power |
0-100%, adjustable by knob |
|||||||||||||
|
Operating mode |
CW, TTL or Analog on request |
|||||||||||||
|

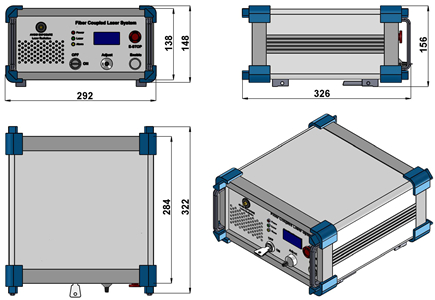

Dimensions (mm3) |
292 (L) × 322 (W) ×156 (H) |
|||||||||||||
|
Model |
FC-W-xxxB (x stands for wavelength) |
|||||||||||||
|
Available wavelength (nm) |
1064 |
1208 |
1275 |
1320 |
1380 |
1470 |
1532 |
1550 |
1600 |
1710 |
1870 |
1900 |
||
|
Central wavelengths tolerance (nm |
±20 |
±20 |
±20 |
|
|
±20 |
±3/ ±20 |
±20 |
||||||
|
Available power (W) |
30 |
12 |
15 |
10,15 |
10,15 |
10,15 |
6 |
6 |
||||||
|
Red pilot light (p) |
Available on request |
|||||||||||||
|
Fiber core diameter |
400 |
|||||||||||||
|
Fiber NA |
0.22 |
|||||||||||||
|
Fiber connector |
SMA905 |
|||||||||||||
|
Fiber length (m) |
2 |
|||||||||||||
|
Output power |
0-100%, adjustable by knob |
|||||||||||||
|
Operating mode |
CW, TTL or Analog on request |
|||||||||||||
|

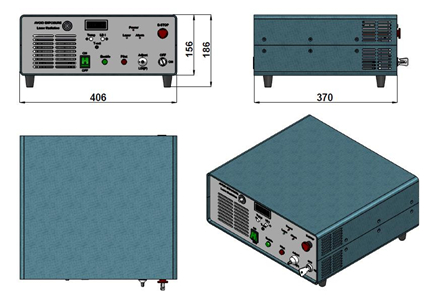

Dimension (mm3) |
406 (L) x 370 (W) x 186 (H) |
|||||||||||||
Certifications
Copmpany Information
CNI owns the core technologies in lasers- UV laser, blue laser, green laser, yellow laser, orange laser, red laser, IR laser, laser systems, optical spectrum analyzer, teaching and laboratory equipment, optical measuring equipment, laser processing equipment, machine vision and the photoelectric detection. There are over 120 technical engineers engaged in the R&D and production, 65 patents and lots of successfully international cooperation projects. The technical strength makes the possibility to serve the customers complete solutions for lasers and laser products
