Pmsm Motor Description
The pmsm motor, Permanent-Magnet Synchronous Motor, the induced electromotive force waveform is a sine wave. Permanent magnet synchronous generator is the principle of synchronous generator, high switching frequency, small torque ripple, PMSM motor is the first choice for high-end motors.
PMSM Motor Work Environment
2. Environment temperature: -25℃~+50℃
3. The most moist month average relative humidity should less than 90%, and this month's average lowest temperature should less than 25℃.
| Rated voltage | 48V |
| Rated power | 1000W |
| Rated current | 22A |
| Rated speed | 1500rpm |
| Rated torque | 6.3N.m |
| Peak torque | 19N.m |
| Motor shaft diameter | 25mm |
| Motor length | 349mm |
| Encoder | 2500ppr, optical |
| Brake | if you need brake, kindly advise |
| Weight | 9.8kg |
| Model | Voltage | Power | Rated speed | Rated current | Rated torque | Peak torque | Length | Shaft Dia | Weight | |
| Frame | Unit | V | W | RPM | A | N.m | N.m | mm | mm | kg |
| 60*60mm | KY60AS0201-30 | 24 | 100 | 3000 | 5.4 | 0.31 | 0.95 | 147 | ⌀11 | 1.4 |
| KY60AS0202-30 | 24 | 200 | 3000 | 10.4 | 0.63 | 1.89 | 147 | ⌀11 | 1.4 | |
| 80*80mm | KY80AS0202-15 | 24 | 200 | 1500 | 10.4 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 |
| KY80AS0402-15 | 48 | 200 | 1500 | 5.2 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0204-15 | 24 | 400 | 1500 | 21.3 | 2.55 | 7.65 | 185 | ⌀14 | 3.5 | |
| KY80AS0404-15 | 48 | 400 | 1500 | 10.4 | 2.55 | 7.65 | 185 | ⌀14 | 3.5 | |
| KY80AS0204-30 | 24 | 400 | 3000 | 21 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0404-30 | 48 | 400 | 3000 | 10.4 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0407-30 | 48 | 700 | 3000 | 19.4 | 2.2 | 6.5 | 185 | ⌀14 | 3.5 | |
| 110*110mm | KY110AS0405-15 | 48 | 500 | 1500 | 14 | 3.1 | 10.8 | 199 | ⌀14 | 6 |
| KY110AS0205-15 | 24 | 500 | 1500 | 26 | 3.1 | 10.8 | 223 | ⌀14 | 6.6 | |
| KY110AS0408-15 | 48 | 800 | 1500 | 21 | 5 | 17.9 | 223 | ⌀14 | 6.6 | |
| KY110AS0207-15 | 24 | 750 | 1500 | 39 | 4.7 | 16.6 | 246 | ⌀19 | 7.6 | |
| KY110AS0408-25 | 48 | 800 | 2500 | 22 | 3 | 10.5 | 223 | ⌀14 | 6.6 | |

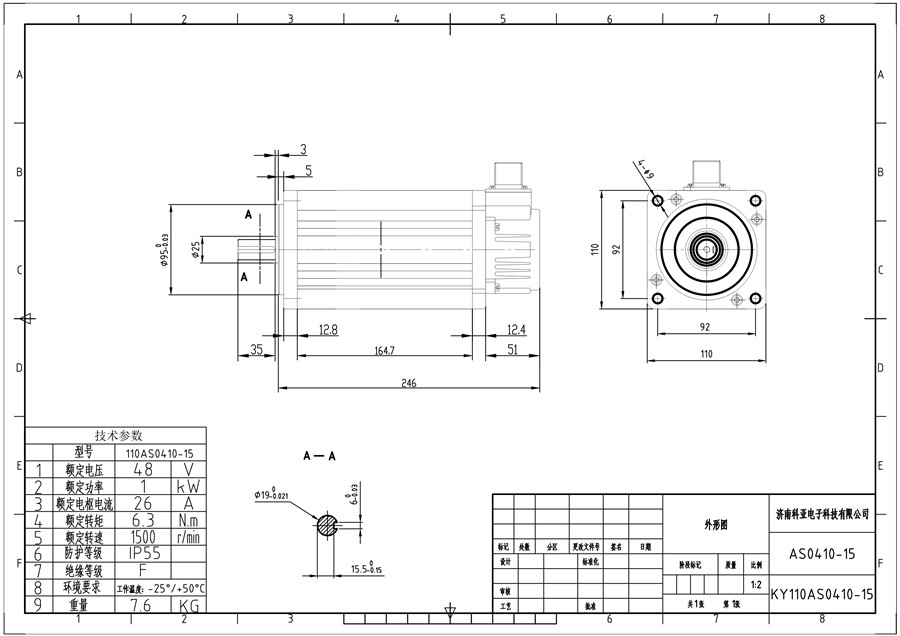

| KY110AS0410-15 | 48 | 1000 | 1500 | 26 | 6.3 | 22 | 246 | ⌀19 | 7.6 | |
| KY110AS0210-15 | 24 | 1000 | 1500 | 52 | 6.3 | 22 | 293 | ⌀22 | 10.2 | |
| KY110AS0412-25 | 48 | 1200 | 2500 | 31 | 4.5 | 15.7 | 246 | ⌀19 | 7.6 | |
| KY110AS0415-15 | 48 | 1500 | 1500 | 39 | 9.5 | 28 | 293 | ⌀19 | 10.2 | |
| KY110AS0415-30 | 48 | 1500 | 3000 | 30 | 4.7 | 14.1 | 246 | ⌀19 | 7.6 | |
| KY110AS0420-25 | 48 | 2000 | 2500 | 55 | 7.6 | 26 | 293 | ⌀22 | 10.2 | |
| 130*130mm | KY130AS0410-15 | 48 | 1000 | 1500 | 26 | 6.3 | 22 | 186 | ⌀25 | 7.6 |
| KY130AS0415-15 | 48 | 1500 | 1500 | 37.5 | 9.5 | 28 | 207 | ⌀28 | 13 | |
| KY130AS0430-15 | 48 | 3000 | 1500 | 73 | 19.1 | 57 | 273 | ⌀28 | 14.2 | |
We also can provide the matched gearbox for pmsm motor for mobile robot, to reduce the speed and get the higher torque.
Gear box range: line planetary gearbox, right angle planetary gearbox, worm gearbox, if you need other gearbox, kindly advise.
The pmsm motor be widely used in mobile robot, for example, crawler robot chassis, inspection robot, automatic guided vehicle, fire fighting robot, self-guided vehicle.
