Product details

Low noise orange laser at 593.5nm is made features of compact, long lifetime, low cost and easy operating, which is used in scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis, etc.The orange low noise lasers are based on our proprietary laser cavity technology. This new technology allows our orange CNI laser to operate in TEMoo mode with low amplitude noise and extremely low power consumption in a compact laser housing.

If you need special configurations of the orange laser, please contact us directly. CNI also provide the yellow laser,red laser, laser goggles, laser power meter for customer.

11Features:

Low moise <2% rms
HIgh beam quality, TEM00,
Fiber coupled with different diameter option
12 months warranty

11Application:11111111111111111111111111

Scientific experiment
Optical sensor
Measurement
Communication

Spectificatios

Wavelength (nm)	593.5±1
Operating mode	CW
Output power (mW)	>1, 5, 10, … , 30
Power stability (rms, over 4 hours)	<3%, <5%
Transverse mode	TEM₀₀
Noise of amplitude (rms, 20Hz~20MHz)	<2%, 3%
M² factor	<1. 2
Beam diameter at the aperture 1/e² (mm)	~1.2
Beam divergence, full angle (mrad)	<1. 5
Polarization ratio	>100:1, Horizontal±5 degree (Vertical Optional)
Warm-up time (minutes)	<10
Pointing stability after warm-up (mrad)	<0.05
Beam height from base plate (mm)	24. 8
Operating temperature (℃)	10~35
Power supply (90-264VAC or 5VDC)	PSU-III-FDA PSU-III-OEM-97
Expected lifetime (hours)	10000
Warranty	1 year

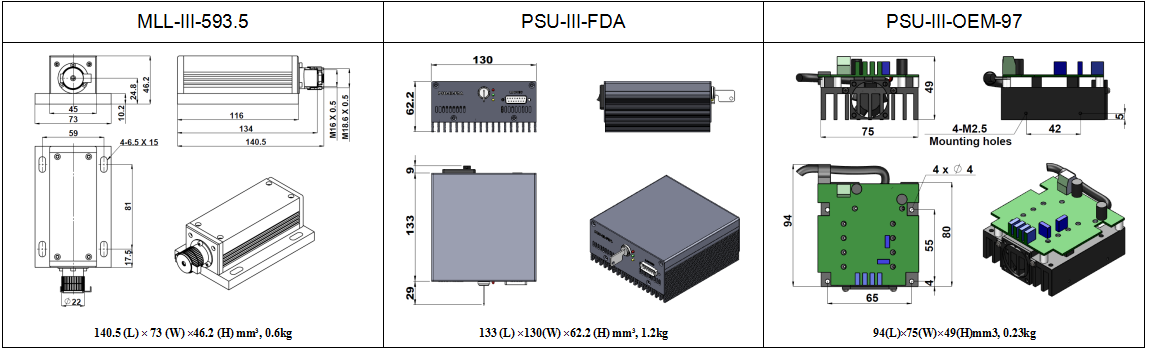

Dimensions

Orange beach Laser Tag

Certification

uv laser applications

Copmpany Information

CNI owns the core technologies in lasers, laser systems, optical spectrum analyzer, teaching and laboratory equipment, optical measuring equipment, laser processing equipment, machine vision and the photoelectric detection. There are over 120 technical engineers engaged in the R&D and production, 65 patents and lots of successfully international cooperation projects. The technical strength makes the possibility to serve the customers complete solutions for lasers and laser products
