Product details

1 1/2'' G353A045 ASCO Type Pulse Jet Valve

This is G353A045 ASCO Type Pulse Jet Valve, 1 1/2'' inlet and outlet threaded port size, Remote Pilot, NBR or TPE diaphragm for you to choose, 24V DC, 110V AC, 220V AC voltages for you to choose, other voltages can be customized.

353 Series Pulse Jet Valve:
1. Threaded Pulse Jet Valve: SCG353A043, SCG353A044, SCG353A047, SCG353A050, SCG353A051
2. Remote Pilot Pulse Jet Valve: G353A041, G353A042, G353A045
3. Immersion Pulse Jet Valve: SCXE353.060

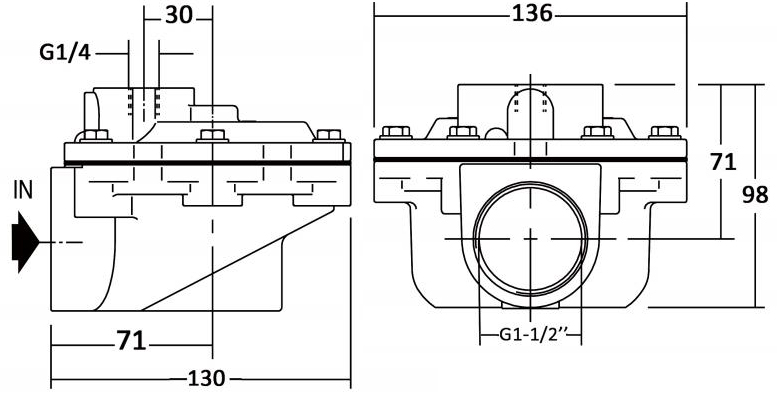

Main dimension of G353A045 1 1/2'' Pulse Jet Valve:

G353A045 dimension

Technical parameters of 353 Series Pulse Jet Valve:

Port Size	Remote Pilot Connection	Office Size	Operating Pressure Differential (Bar)		Model Number	Diaphragm Material
G	(inch)	(mm)	Min.	Max.	Aluminium	NBR/Viton
G	(inch)	(mm)	Min.	Max.	Aluminium
3/4''	1/8''	24	0.35	8.5	G353A041
1''	1/8''	27	0.35	8.5	G353A042
1 1/2''	1/8''	52	0.35	8.5	G353A045

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit.

Brando Supply:

*SBFEC Type Pulse Jet Valve *Goyen Type Pulse Jet Valve *ASCO Type Pulse Jet Valve *Other Dust Collector Valve

*Solenoid Valve Coil *Solenoid Armature/Stem *Diaphragm Repair Kit *Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
