automatic locking screw machine

Automatic Locking Screw Machine, also known as Automatic Locking Screw Robot, Automatic Tightening Screw Machine, Automatic Screwing Machine, Automatic Screw Fastening System, Automatic Screw Driving Machine, Automatic Screw Fastening Machine etc.
The Automatic Locking Screw Machine is customized according to the tighten request and screws.
According to the screw feeding, the machine can be designed as Pneumatic Automatic Screw Locking Machine, air blowing Automatic Screw Tightening Machine, Air Suction Screw Locking Machine automatic.

The Features of Air Blowing And Suction Locking Screw Robot
Adopts vacuum suction screw method, high universality, overcome the blowing screw can’t send the screw length diameter ratio less than 1.2mm, also overcomes the disadvantage of magnetic suction way can’t suction stainless steel screw . for M1.0 – M4.0 screws all can be applied, such as screw size changed, just need to change the suction nozzle.Applies to most of the screws, strong commonality, the screw length to diameter ratio and material there is no requirement.

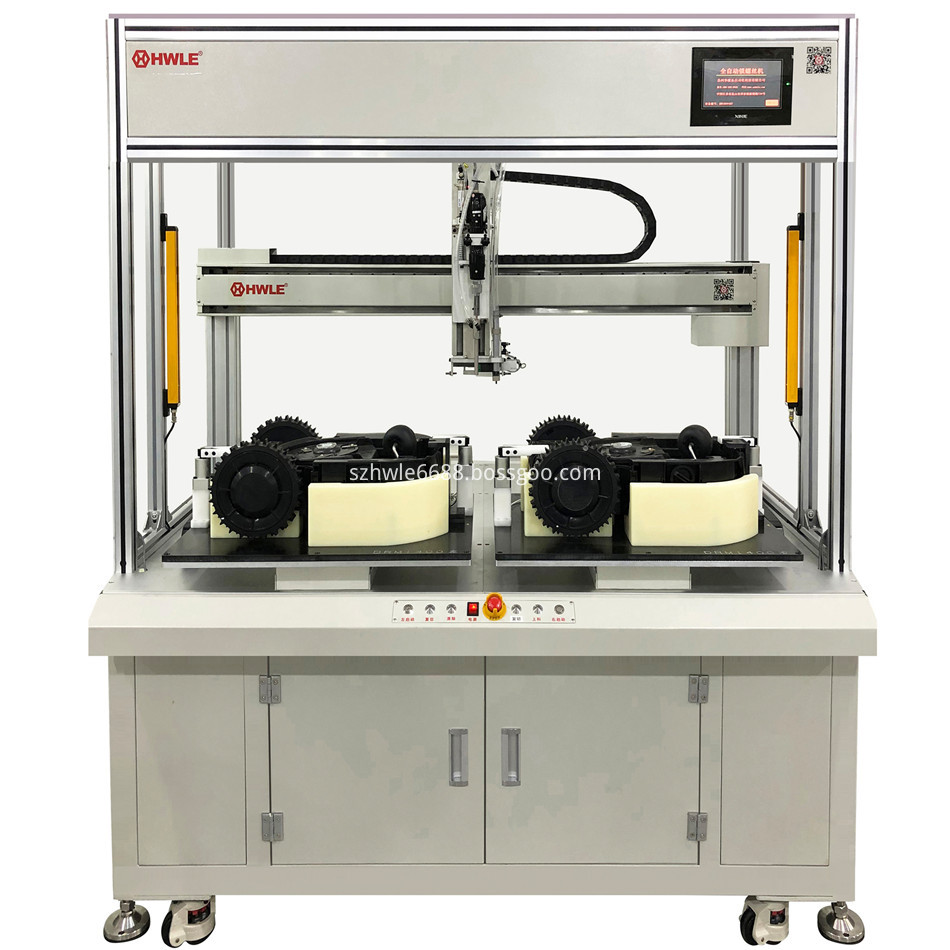

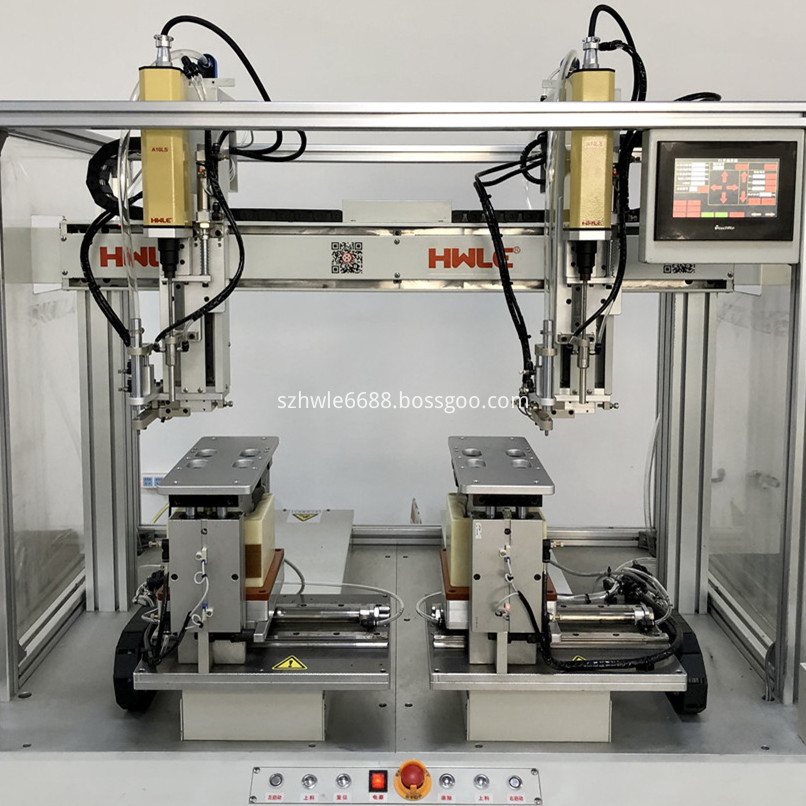

The equipment is mainly composed of screw automatic conveying system, X-Y-Z mobile platform, screw locking mechanism and electrical control system.When changing the product, you can directly replace the jig and switch to the corresponding program to start production.
