3HW-C30XYZB（锁打草机）.mp4

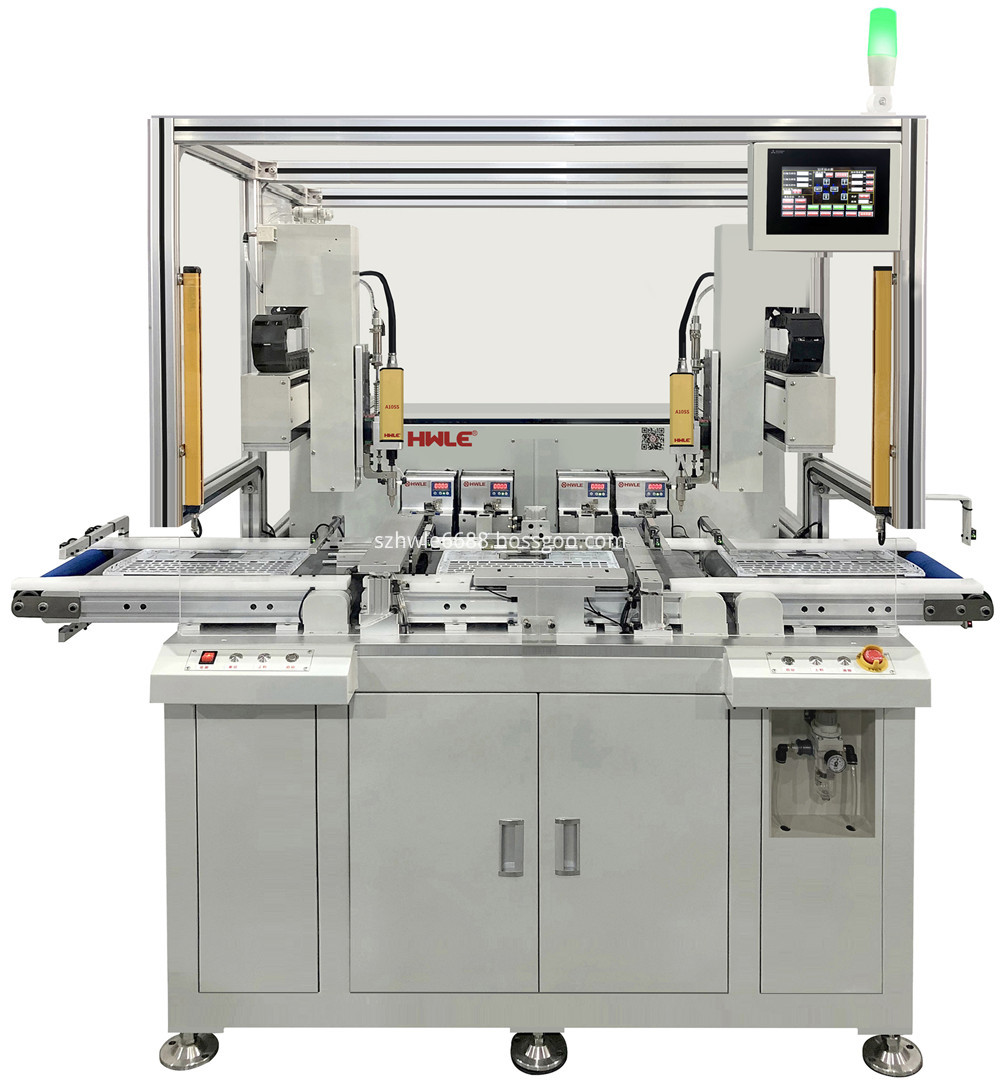

The automatic locking screw machine is customized according to the tightening request and screws.
1) According to the screw feeding, the machine can be designed as Pneumatic Automatic Screw Locking Machine, air blowing Automatic Screw Tightening Machine, Air Suction Screw Locking Machine automatic.
2) According to the coordinate axis, the machine can be divided into 3-axis Automatic Screw Tightening Robot, 6-axis Automatic Locking Screw Machines, Multi Axis Robot Screw Locking Machine Automatic.
The automatic locking screw machines are designed and produced according to the screw specifications, workpieces and tightening request. So it can be divided into Standard Automatic Screw Locking Machine and Customized Automatic Robot Screw Tightening Machine.

Features of automatic locking screw machine
1. It is mainly composed of screw automatic conveying system, screw locking mechanism, electrical control system and so on.
2. Strong applicability, changing the product, only need to change the jig, and the position of the electric batch can be adjusted.
3. The screw is automatically fed. After the screw is locked on the batch head, the screw is automatically blown to the batch nozzle by the air pipe.
4. Sliding tooth does not feed: in the locking project, the torque cannot be reached, and the screw will not be sent out.
5. Good stability, no material jam, even if the material is jammed due to a defect, the jam can be solved within a few seconds.
6. High efficiency, the time to lock and pay for a product is about 3S. (There are slight differences in the length of the screw). You don't need to grab the screw, just put the product on the fixture to operate the device.
7. It can reduce 2 to 5 workers' screw locking operation, realize fully automatic production, reduce the labor intensity of workers and improve productivity.
8. One device can lock different product models of the same screw.
