31A1 Solenoid Valve
3 year ago

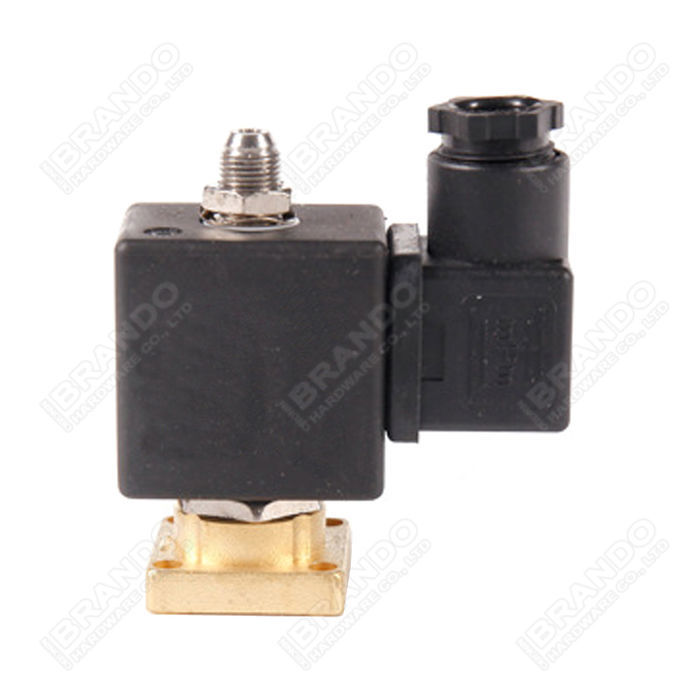

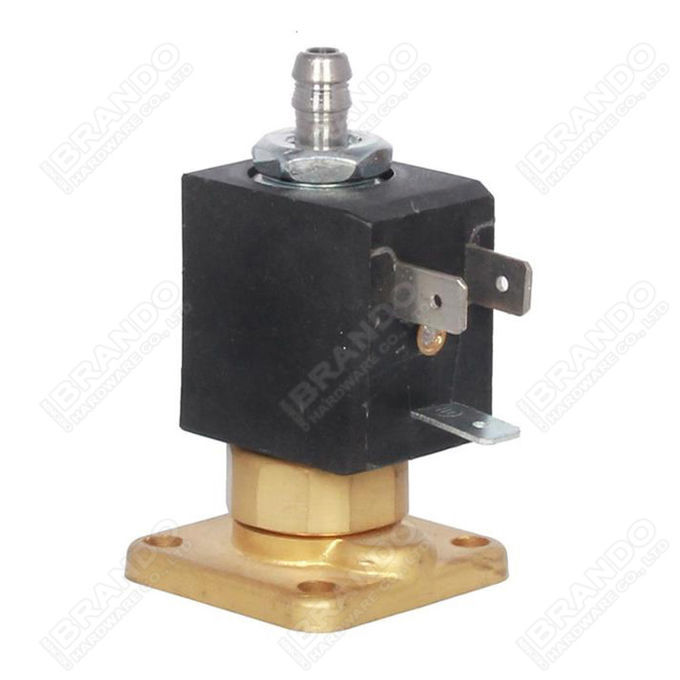

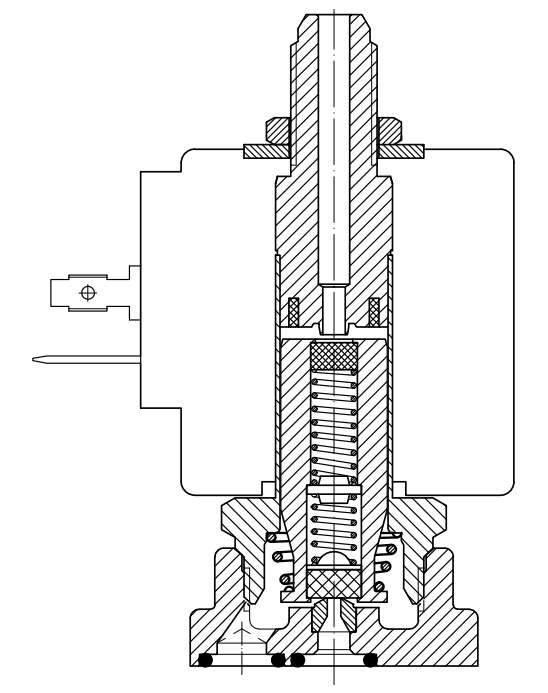

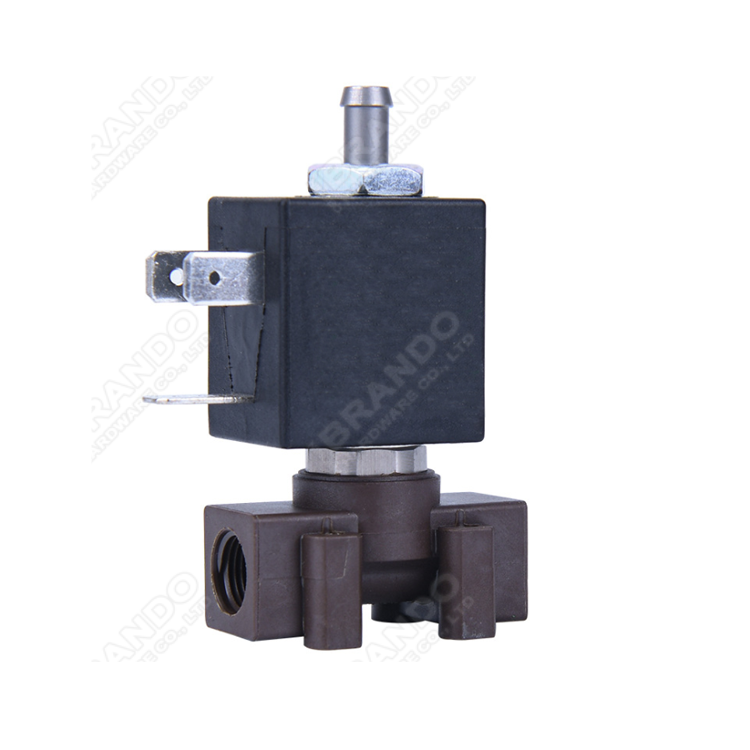

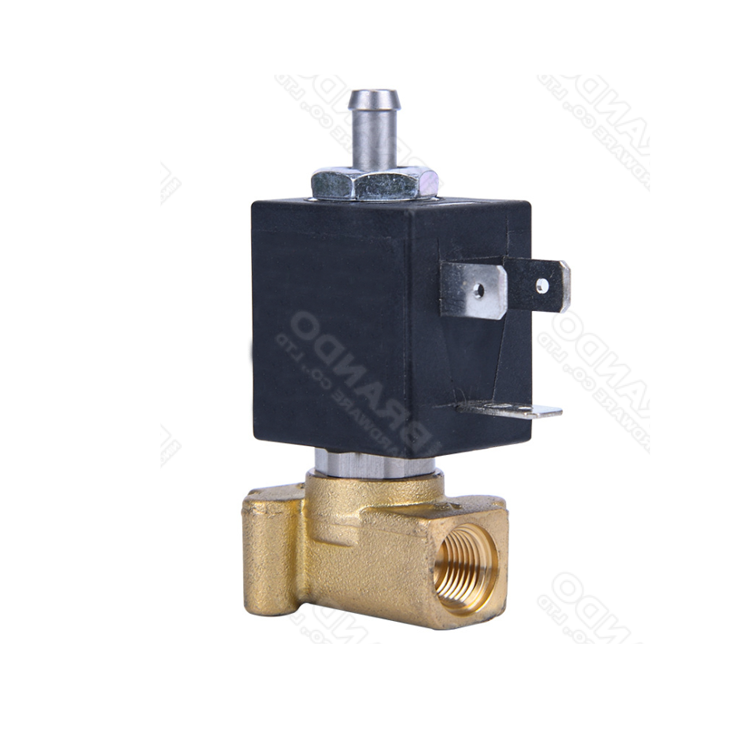

ODE Type 3 Way Coffee Machine Solenoid Valve
Product Features of 3 Way Cofffee Maker Solenoid Valve:
1. Working Medium: Air, Water, Steam, Gas, Oil, etc
2. Working Pressure Range: 0 to 15 bar (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Connection: Sub Base
5. Body Orifice Size: 1.6mm, 2.5mm, 3mm, 4mm
6. Top Orifice Size: 1.5mm
7. Body Material: Brass, Stainless Steel
8. Seal Material: NBR, EPDM, FKM
9. Function: 3 Way Normally Closed, 3 Way Normally Open
10. Operation: Direct Acting
11. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of 3 Way Coffee Machine Solenoid Valve:
 |
 |
|
Model
|
Body
Orifice Size
|
Top
Orifice Size
|
Cv
|
Min Pressure
|
Max Pressure
|
Seal Material
|
Body Material
|
|
|
AC
(22VA)
|
DC
(17W)
|
|||||||
|
7FA16
|
1.6mm
|
1.5mm
|
0.25
|
0MPa
|
1.5MPa
|
1.5MPa
|
NBR
EPDM
FKM
|
Brass
Stainless Steel
|
|
7FA25
|
2.5mm
|
1.5mm
|
0.25
|
1.2MPa
|
1.2MPa
|
|||
|
7FA30
|
3.0mm
|
1.5mm
|
0.35
|
0.9MPa
|
0.9MPa
|
|||
|
7FA40
|
4.0mm
|
1.5mm
|
0.5
|
0.6MPa
|
0.6MPa
|
|||
BRANDO Solenoid Valve Production Video:

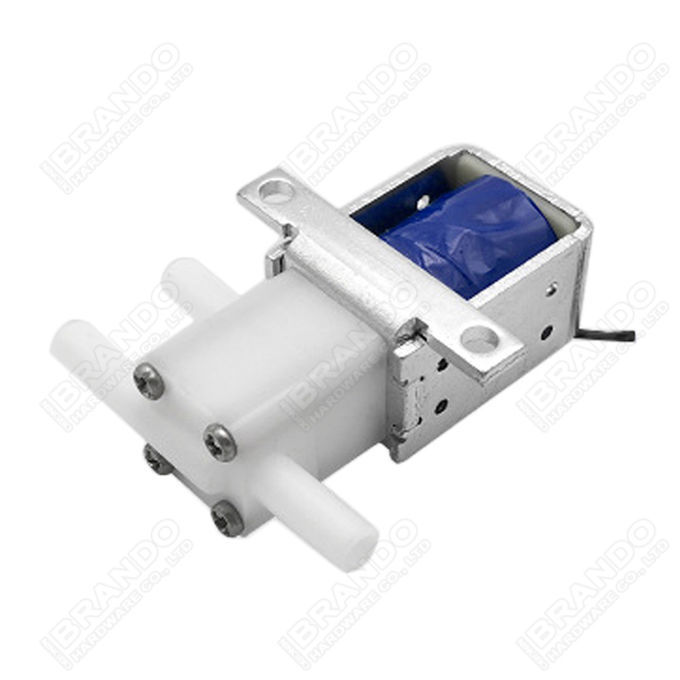

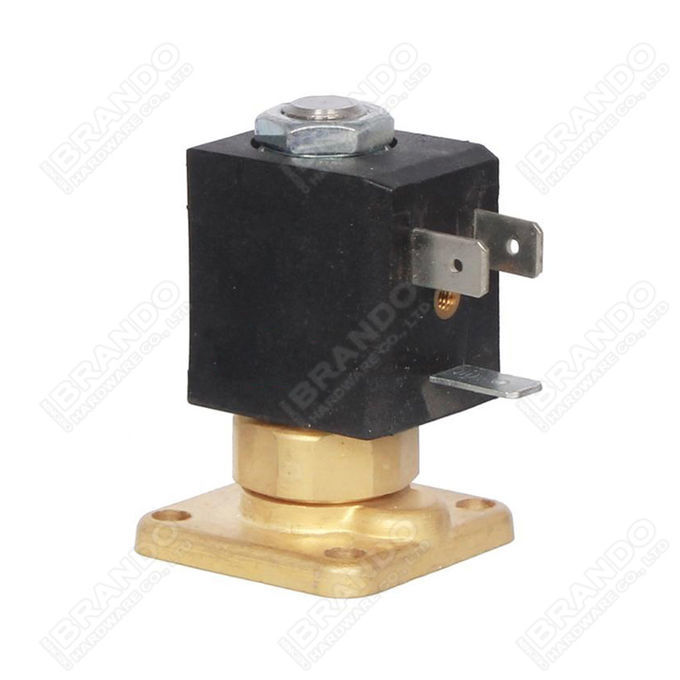

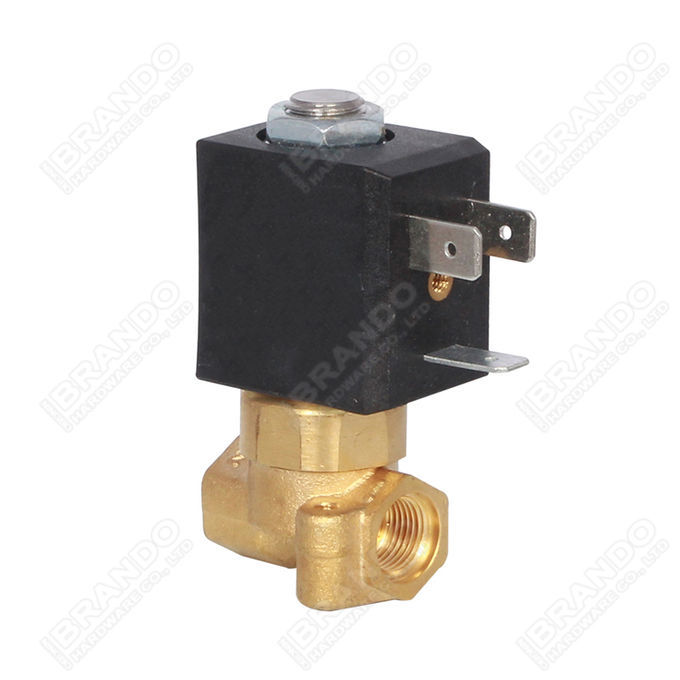

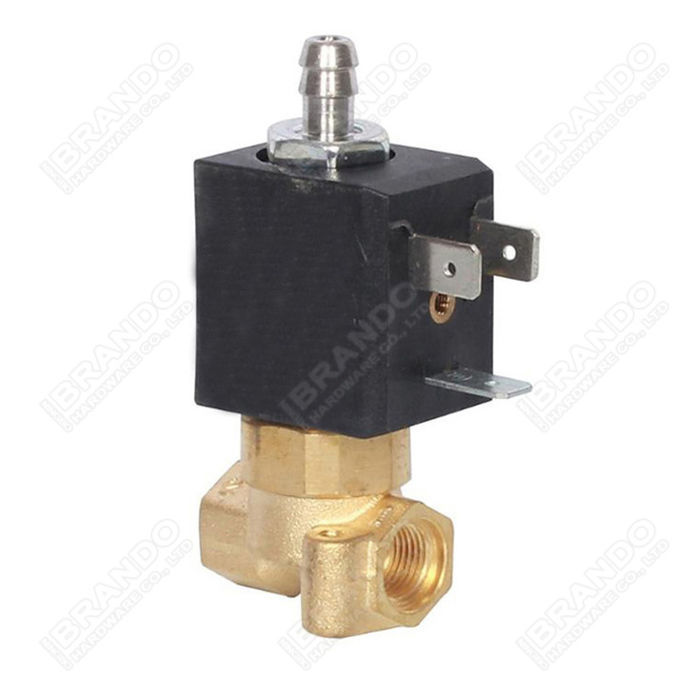

More Coffee Machine Solenoid Valves for you to choose:

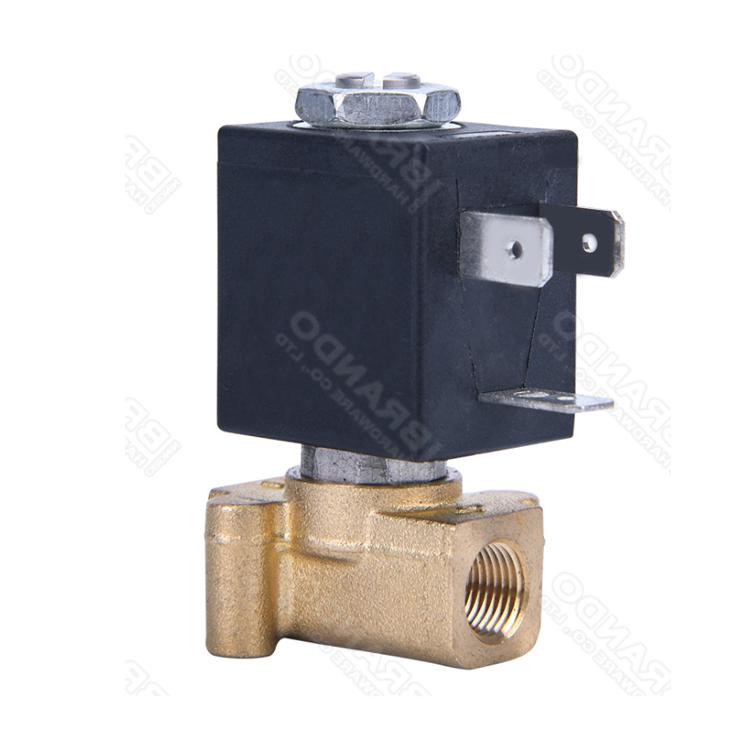

| Brass Solenoid Valve | |||
|
|
|
|
|
|
|
|

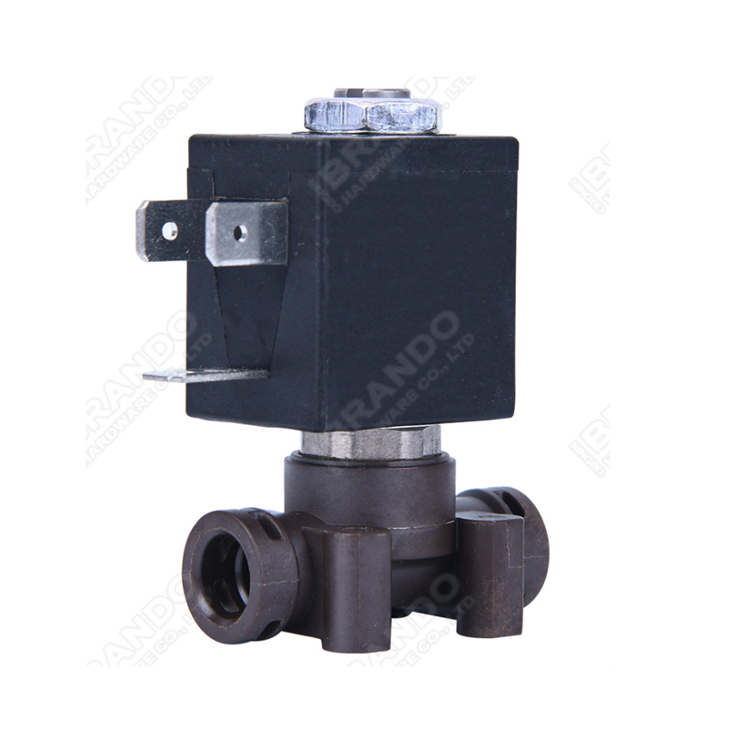

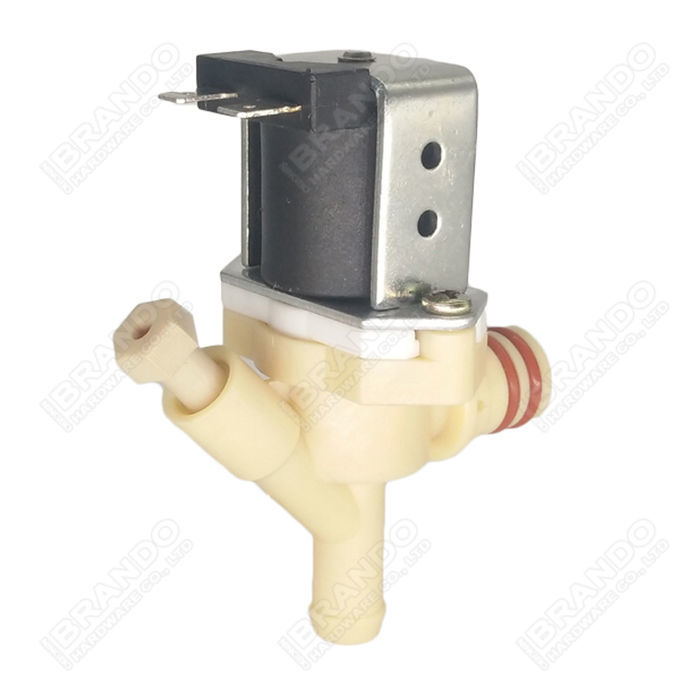

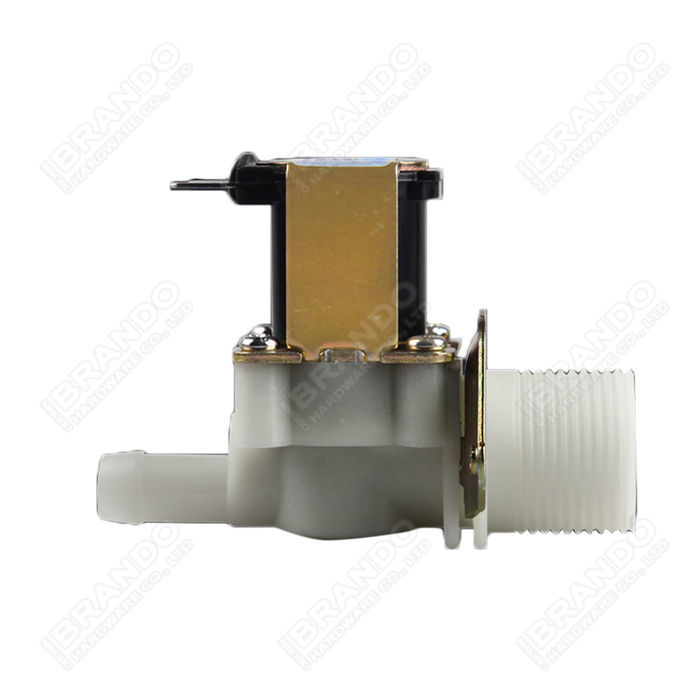

| Plastic Solenoid Valve | |||
|
|
|
|
|
|
|
|

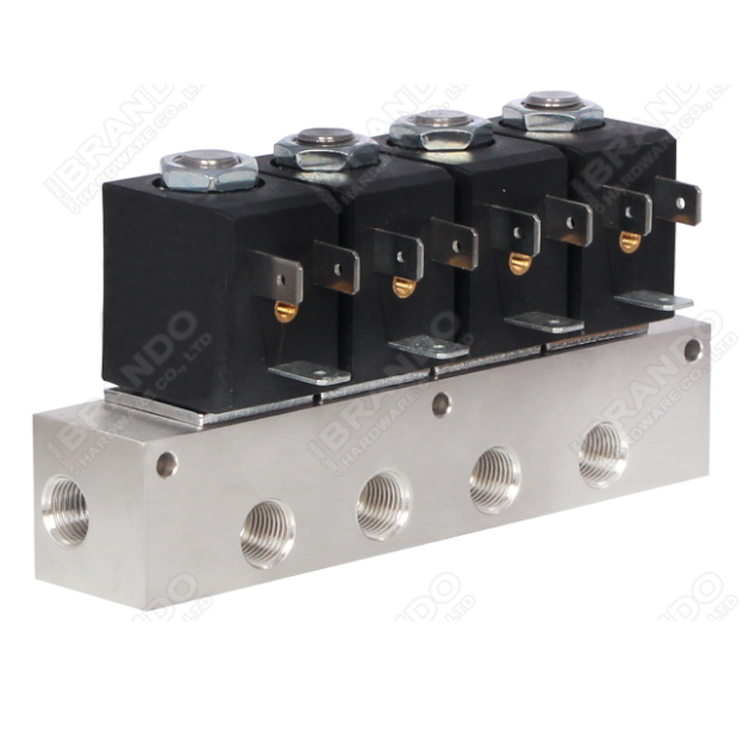

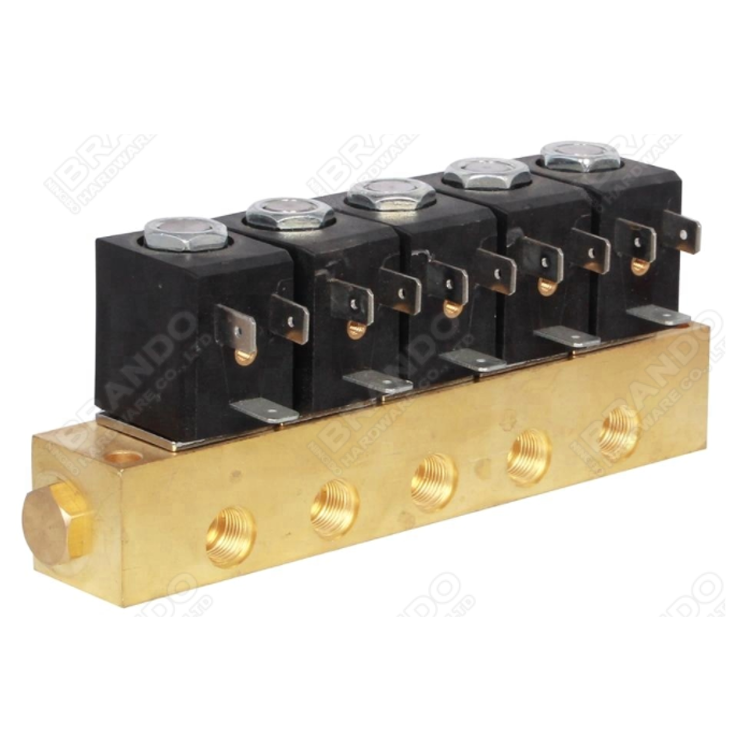

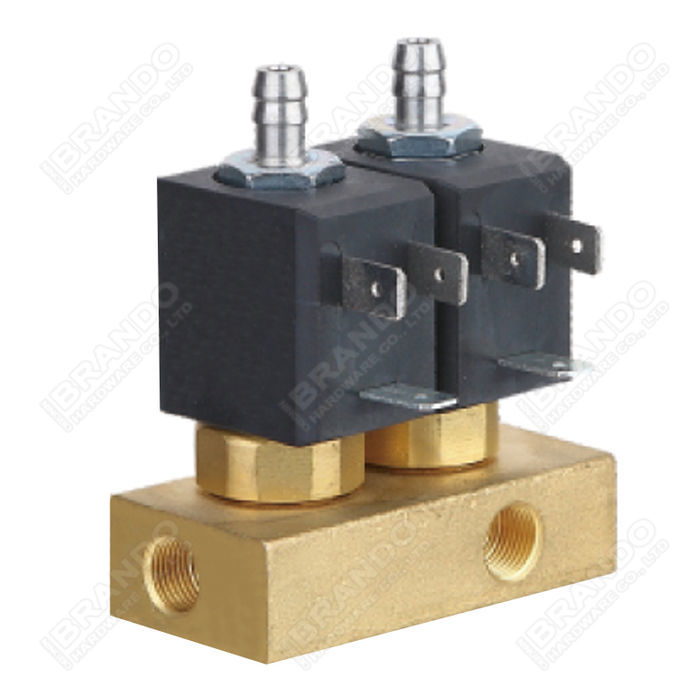

| Manifold Solenoid Valve | ||
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
