Product details

Solar Storage Bi-directional Inverter:

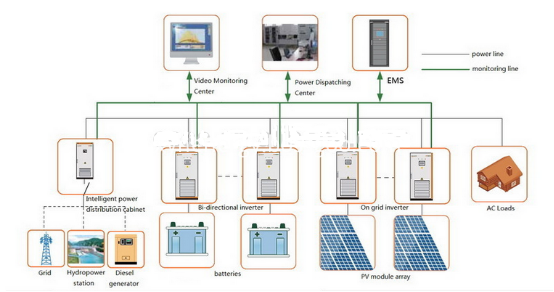

Solar Storage Bi-directional Inverter products and system solutions bring light to areas without electricity and electricity,and realize smart power supply and demand deployment,so that electricity can generate greater value.The system is aimed at three-phase energy storage system,which can realize grid-connected power generation.off-grid inverter,and city power reverse charging function;if the grid is powered off,the energy storage system can be automatically switched to the off-net work working mode to ensure uninterruoted power supply.
1. Power peak cutting and valley filling,meet customer dynamic needs.
2.Smooth output power and increase grid acceptance ratio,
3.Ensure the safety of electricity use.

Technic Parameter:

Type		XSX10KS	XSX20KS	XSX50KS	XSX100KS	XSX250KS	XSX500KS	XSX1000KS
AC side parameter
Rated capacity		10kW	20kW	50 kW	100 kW	250kW	500Kw	1000Kw
Overload		11kW	22 kW	55 kW	110 kW	275kW	550kW	1100kW
On-grid charging mode
Rated grid voltage		400 Vac
Grid voltage range		330~460Vac
Grid frequency		50Hz/60Hz
Total harmonic distortion(THD)		<3%
Power factor		≥0.99
off-grid mode
Rated output voltage		400 Vac
Output voltage accuracy		<3%
Output frequency		50Hz/60Hz
Output overvoltage		>460 Vac
Output under-voltage		<330 Vac
DC voltage range
Max DC power		11kW	22 kW	55 kW	110 kW	275kW	550kW	1100kW
DC voltage range		450-1000Vdc
Max DC current		25A	50A	122A	244A	611A	1320A	2640A
DC current ripple		<5%
System
Max efficiency	96.6%
Temperature	-25~+60°C
Humidity	0~95%,non condensing
Noise	<50dB
Protection	Polarity inverse,short circuit,island efficiency.overheat,overload.ground fault protection
Cooling method	Forced cooling
Protect degree	IP20
Indication	Touching screen
Communication	RS485(MODBUS protocol)
W×D×H(mm)	5805151250		6506101560	8006002060	10008002060	20008002060	35008002060		60008002060
Weight (kg)	150		300	700	900	1300	2500		4500
