PL Elbow Union 90 Degree Pneumatic Hose Fitting
Push to connect pneumatic elbow fittings are easy to use with quick push in capabilities. The elbow design allows for a 90° or 45° change of direction, with a variety of styles available for different pneumatic push-in fitting applications.
Elbow Push to Connect Fitting Styles:
90° Male Elbow
90° Male Elbow Extended
45° Male Elbow
90° Female Elbow
90° Union Elbow
90° Bulkhead Elbow
90° Male Elbow Banjo
Technical data of Pneumatic Hose Fittings:
|
Material
|
Plastic / Brass
|
|
Threaded Connection
|
BSP
|
|
BSPP
|
|
|
Metric Thread
|
|
|
NPT
|
|
|
Working Pressure
|
0 to 0.8MPa
|
|
Connecting Tube
|
PA
|
|
PU
|
|
|
Connecting Diameter Tube
|
3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm (Outer Diameter)
|
|
Medium
|
Compressed Air
|
|
Working Temperature
|
~60℃
|

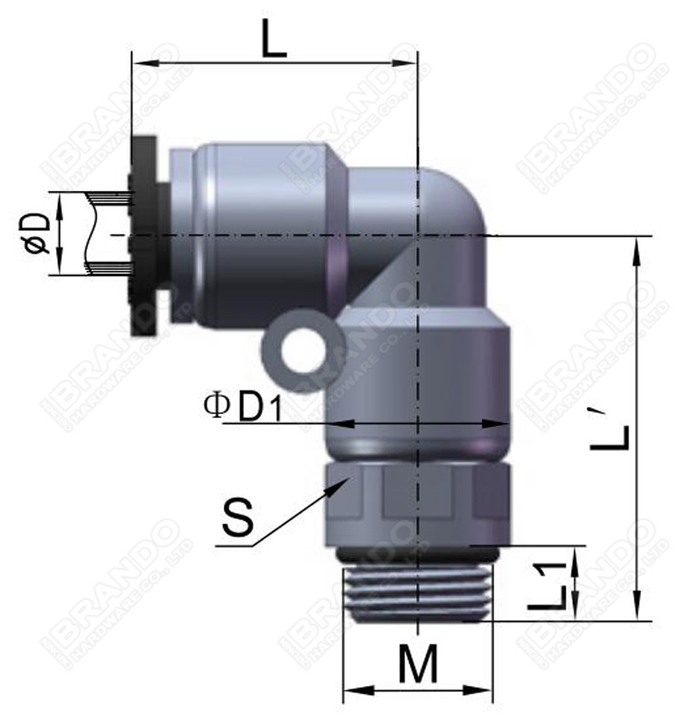

Specifications of PL-G Male Elbow Pneumatic Hose Fittings:
|
Model No
|
M
|
φD
|
φD1
|
L1
|
L
|
L'
|
S
|
|
PL4-G
|
G1/8''
|
4
|
11
|
5.3
|
19
|
26
|
12
|
|
G1/4''
|
4
|
11
|
6
|
19
|
27
|
12
|
|
|
G3/8''
|
4
|
11
|
7
|
19
|
29
|
14
|
|
|
G1/2''
|
4
|
11
|
9
|
19
|
31
|
17
|
|
|
G1/8''
|
6
|
13
|
5
|
20
|
27
|
12
|
|
|
G1/4''
|
6
|
13
|
6
|
20
|
28
|
12
|
|
|
PL6-G
|
G3/8''
|
6
|
13
|
7
|
20
|
30
|
14
|
|
G1/2'''
|
6
|
13
|
9
|
20
|
32
|
17
|
|
|
G1/8''
|
8
|
14
|
5
|
23
|
28
|
14
|
|
|
G1/4''
|
8
|
14
|
6
|
23
|
31
|
14
|
|
|
G3/8''
|
8
|
14
|
7
|
23
|
33
|
14
|
|
|
G1/2''
|
8
|
14
|
9
|
23
|
35
|
17
|
|
|
PL8-G
|
G1/8''
|
10
|
18
|
5
|
27
|
34
|
17
|
|
G1/4''
|
10
|
18
|
6
|
27
|
34
|
17
|
|
|
G3/8''
|
10
|
18
|
9
|
27
|
37
|
17
|
|
|
G1/2''
|
10
|
18
|
9
|
27
|
39
|
17
|
|
|
PL10-G
|
G1/8''
|
12
|
21
|
5
|
30
|
35
|
19
|
|
G1/4''
|
12
|
21
|
6
|
30
|
36
|
19
|
|
|
G3/8''
|
12
|
21
|
7
|
30
|
37
|
19
|
|
|
G1/2''
|
12
|
21
|
9
|
30
|
41
|
19
|
|
|
PL12-G
|
R1/8''
|
12
|
21
|
8
|
30
|
37
|
19
|
|
R1/4''
|
12
|
21
|
9
|
30
|
38
|
19
|
|
|
R3/8''
|
12
|
21
|
10
|
30
|
39
|
19
|
|
|
R1/2''
|
12
|
21
|
11
|
30
|
41
|
21
|
