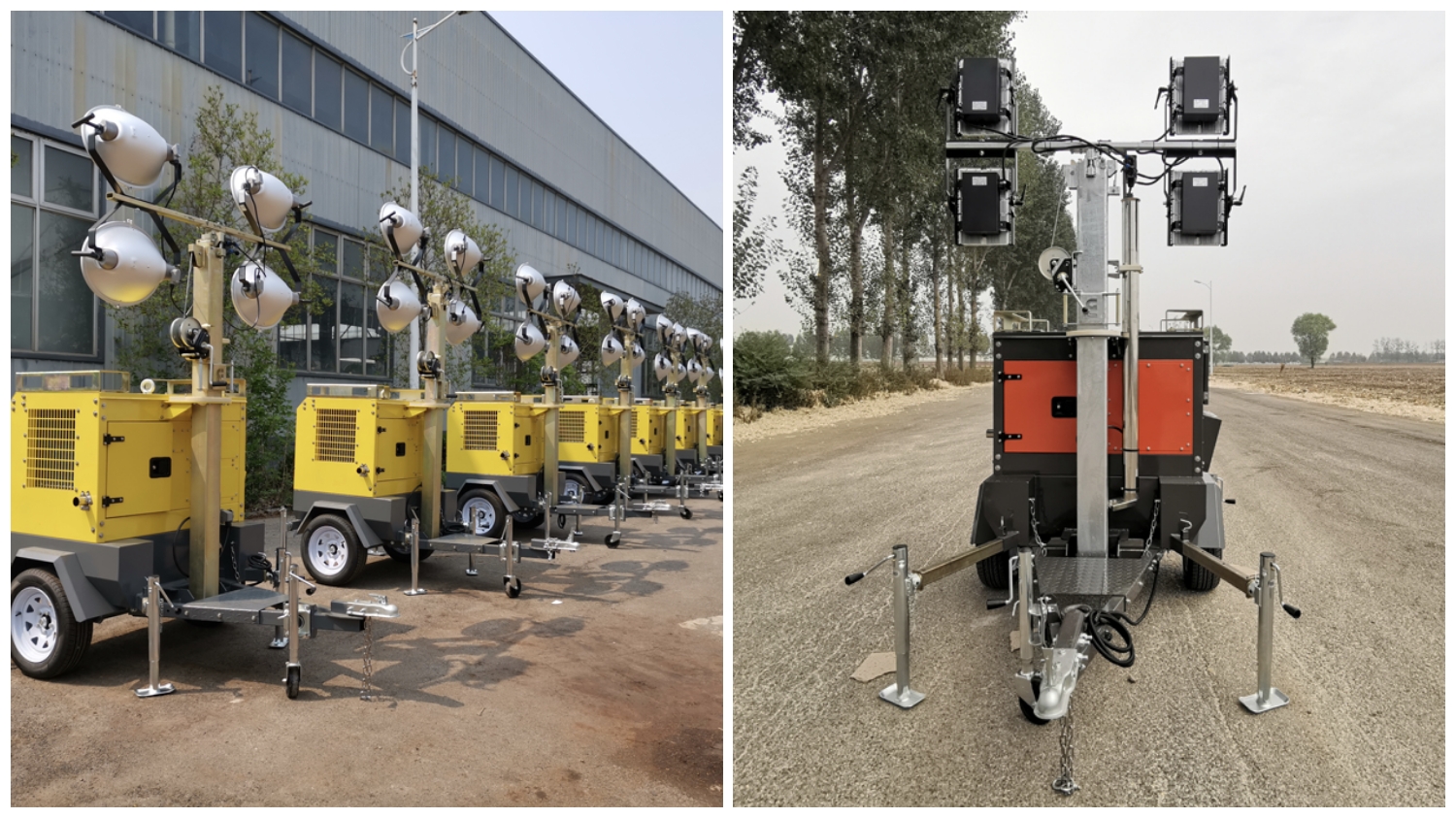

V9-R4000 mobile Light tower

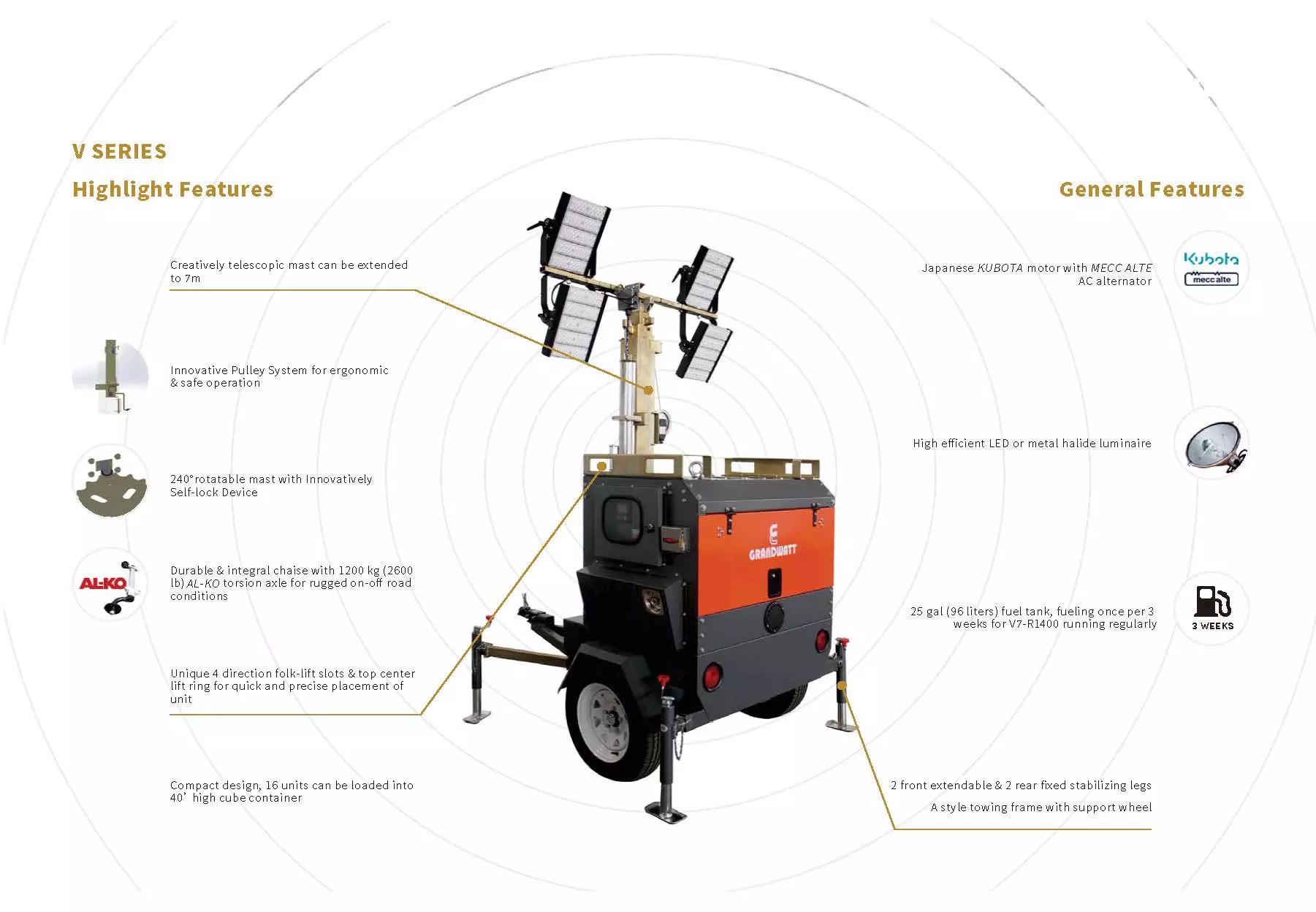

Virginia Series mobile light tower adopts vertical telescopic mast, which is more safe & reliable, and can deploy quickly and easily for fast job-site setup, and less downtime.
Besides, Virginia Series is compact designed with smaller size for transportation, and can save a lot of transportation cost!
We strive to provide you highest value-added products!
Now our products covers Environmental light tower (Solar light tower, Hybrid light tower and Portable light tower), Diesel light tower, Generator set, Solar system (Quickly layout solar power station and Mobile solar energy generator with off-grid). In addition, there are more types of light tower for you to choose from: LED light tower, Metal Halide Light Tower， Mining Light Tower, and hydraulic light tower, Vertical Light Tower, etc.
CONVENIENT AND FAST
|
V9 Series Light Tower |
||
|
Standard Model |
V9-R4000 |
|
|
Dimensions |
Length |
2,285 mm (7' 5 ½" ) |
|
Length for loading |
1,145 mm ( 3' 9" ) |
|
|
Width |
1,430 mm ( 4' 9" ) |
|
|
Height |
2,970 mm ( 9’ 9” ) |
|
|
Height for loading |
2,465 mm ( 8’ 1" ) |
|
|
Height extended fully |
8.5 m (28' ) |
|
|
Gross weight |
955 kg ( 2,100 lbs ) |
|
|
Engine |
Model |
D1105 KUBOTA |
|
Speed |
1,500 rpm |
|
|
Engine characters |
3 cylinders, 4 cycles & Water cooling |
|
|
Combustion/Aspiration |
IDI/ Naturally aspirated |
|
|
Alternator |
Model |
LT3N-130/4 MECCALTE |
|
Frequency (HZ) |
50 |
|
|
Rating voltage |
230 VAC |
|
|
Insulation & Protection |
Class H & IP23 |
|
|
Mast & Lights |
Light |
4*1,000W Metal Halide（Oval） |
|
Luminous flux |
100,000 Lumen/Light |
|
|
Mast Style |
5 sections, Manual operation |
|
|
Mast rotation |
240° Manual operation with self-locking |
|
|
Light tilt |
Manual |
|
|
Trailer |
Suspension & brake |
Torsion axle without brake |
|
Towing bar |
"A" style frame with a supporting wheel |
|
|
Stabilizing leg |
2 front extendable + 2 rear fixed jacks |
|
|
Wheel |
14" rim with regular tire |
|
|
Towing coupler |
2", 50 mm ball coupler or 3" pintle ring |
|
|
Tail lights |
Complex tail lights |
|
|
Max towing speed |
100 km/h ( 62 mph) |
|
|
General Data |
Fuel tank |
96 liters ( 25 US gal) Metal Sheet |
|
Operating hours |
70 hours |
|
|
Control system |
Grandwatt Controller 1790N |
|
|
Max. against wind |
20 m/s (45 mph) |
|
|
Max. acoustic pressure |
71 dB(A) at 7 meters away |
|
|
Max. load in 40’ high cube |
16 | |
|
Designed by GRANDWATT Electric Corp. (U.S.A.) Made by GRANDWATT Electric Co., Ltd. (China) |
||
