BV9 Solar light tower

4 year ago

148 0 

5 year

Product details

PRODUCT OVERVIEW

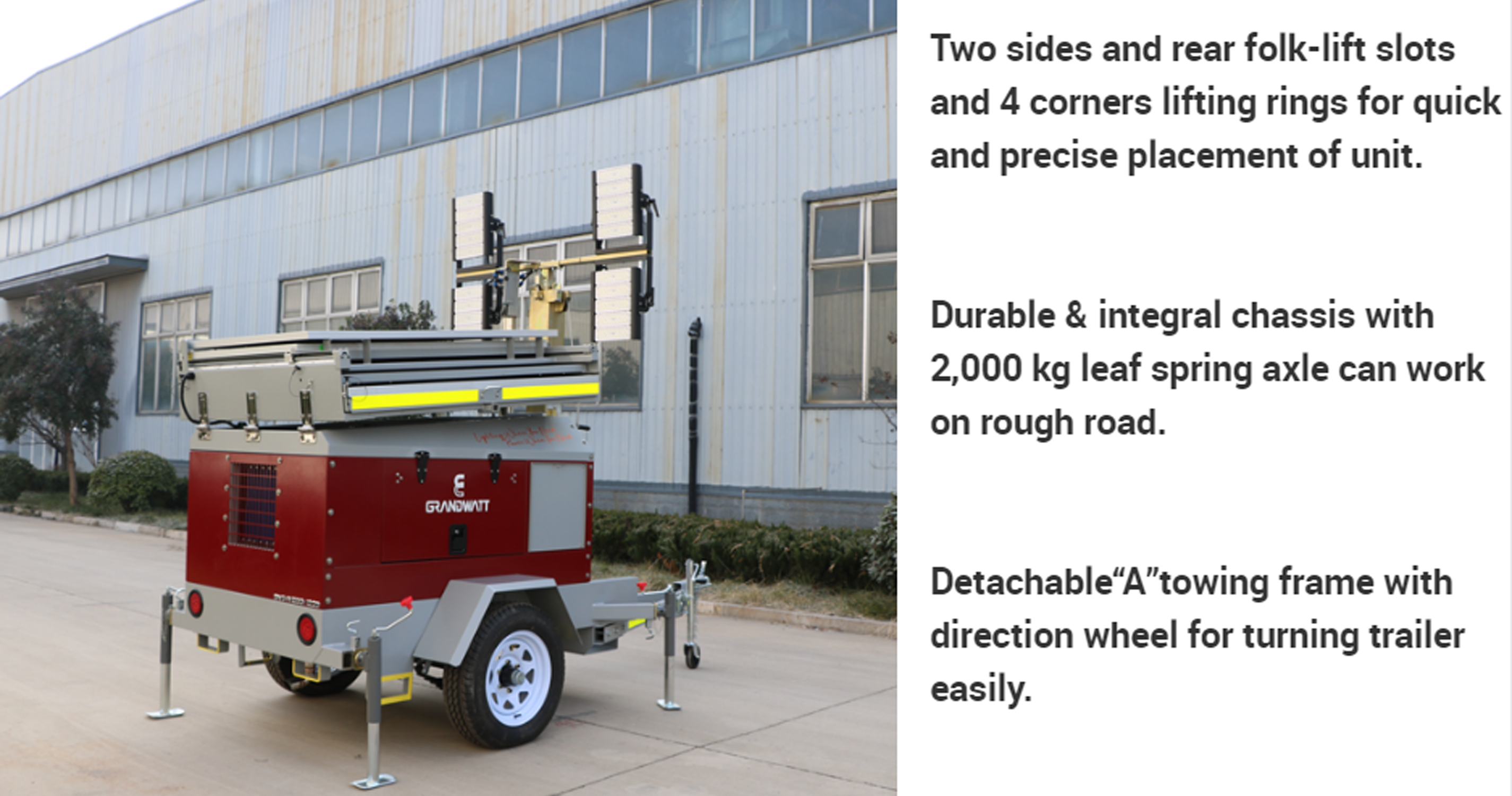

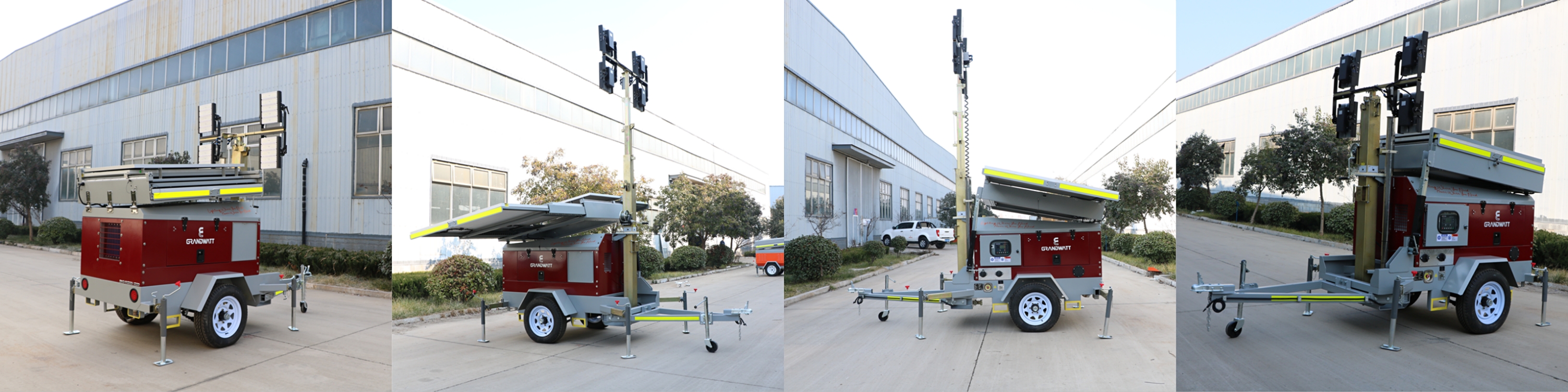

BV9-R1200/1220 Hybrid Light Tower

Mobile LED hybrid tower, using retractable mast, with solar power generator set, more safe and reliable.Reliable, fast deployment,easy and fast job site setup, reducing downtime.

In addition, the compact design, smaller in volume during transportation, can save a lot of transportation costs!

We strive to provide you with the highest value added products.

General Features

SPECIFICATIONS

Hybrid Light Tower
Standard Model		BV9-R1200/1220
Dimensions	Length	3,860 mm ( 12' 8")
	Length for loading	2,200 mm (7' 3“ )
	Width	1,670 mm (5' 5½")
	Height/Hight for loading	2,540 mm ( 8' 4" )
	Height fully extended	8.30 m (27'3" )
	Gross weight	1,500 kg ( 3,300 lb )
Solar panel & battery system	Solar panel & battery system	48 VDC
	Solar panel	1,220 W- 4*305 W Mono
	Retracted panel system	Manual sliding system with guide rail
	Panel kit tilt	Manually 7.5°- 35° adjustable with 7,000 lb jack
	Battery	4250 Ah gel or 1100Ah lithium battery
	Controller (Day time)	30 A MPPT controller
Controller (Day time)	Engine model	Z482-B-CHN-1 Kubota
	Engine speed	1,800 rpm
	Engine characters	2 cylinders, 4 cycles & Water cooling
	Combustion/Aspiration	IDI/ Natural aspiration
	Alternator model	RFDC-3.3 RFL
	Alternator voltage	48 VDC
	Alternator Protecting grade	IP23
	Controller (Night time)	Grandwatt hybrid DC light tower controller
	Fuel tank	135 liters ( 35 US gal) bunded metal tank
	Full fuel for generator running	320 hours
	Full fuel for hybrid energy running	≥480 hours
	Refuel cycle	≥ 8 weeks (5 working days/week)
Mast & Lights	Light	4*300 W LED
	Luminous flux	45,000 Lumen/ Light
	Mast style	5 sections; 2,500 lb manual winch
	Mast rotation	Manual 240 ° with self-lock
	Light tilt	Manual
Trailer	Suspension & brake	Single leaf-spring axle without brake
	Tow bar	"A" style frame with a directional wheel
	Stabilizing leg	4 retractable jacks
	Wheel	16" rim with regular tire
	Tow Coupler	2", 50 mm ball coupler or 3" pintle ring
	Tail lights	Night, turning & stopping taillights
	Max towing speed	100 km/h ( 62 mph)
General Data	Fuel consumption advantage	Save 40% or more fuel than same power diesel light tower
	Max. against wind	20 m/s (45 mph, solar panels must be retracked)
	Max. load in 40' high cube	7
Designed by GRANDWATT Electric Corp. (U.S.A.) Made by GRANDWATT Electric Co., Ltd. (China)

Product Display

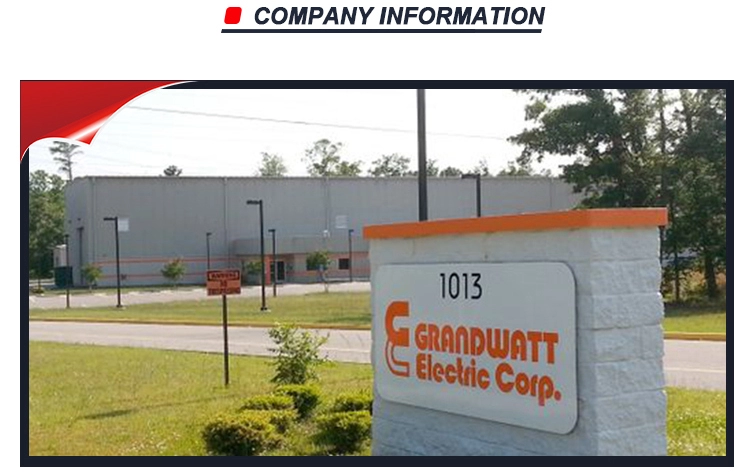

COMPANY PROFILE
