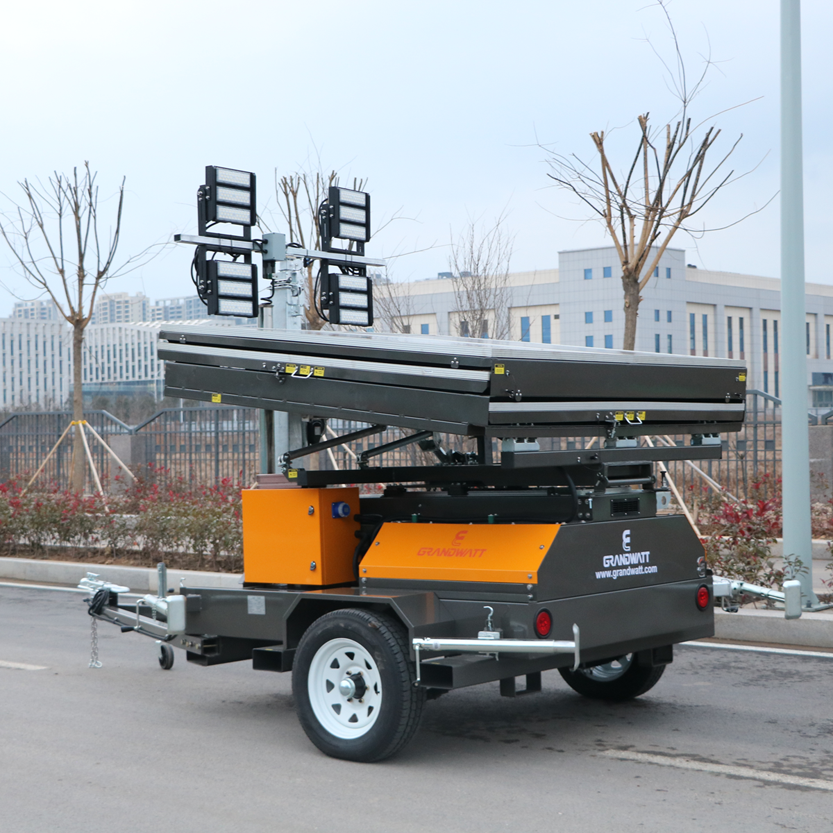

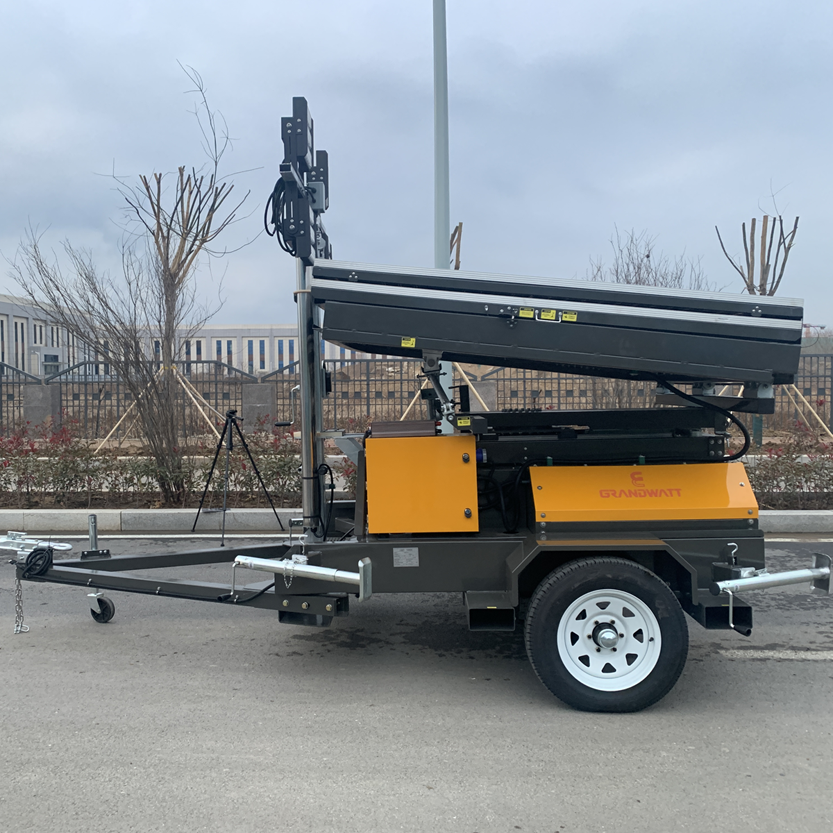

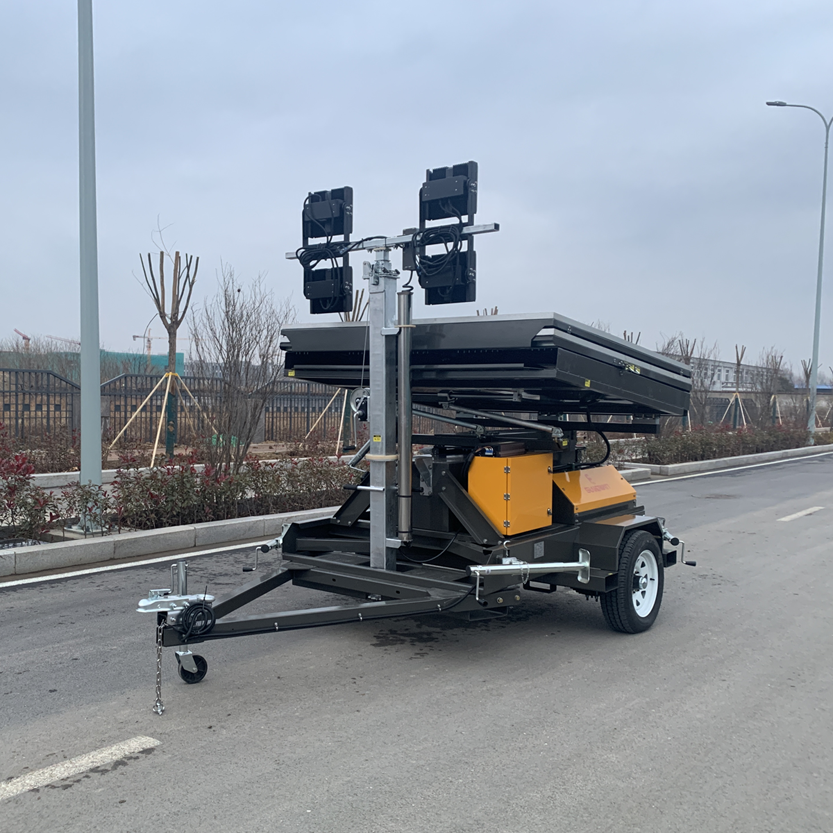

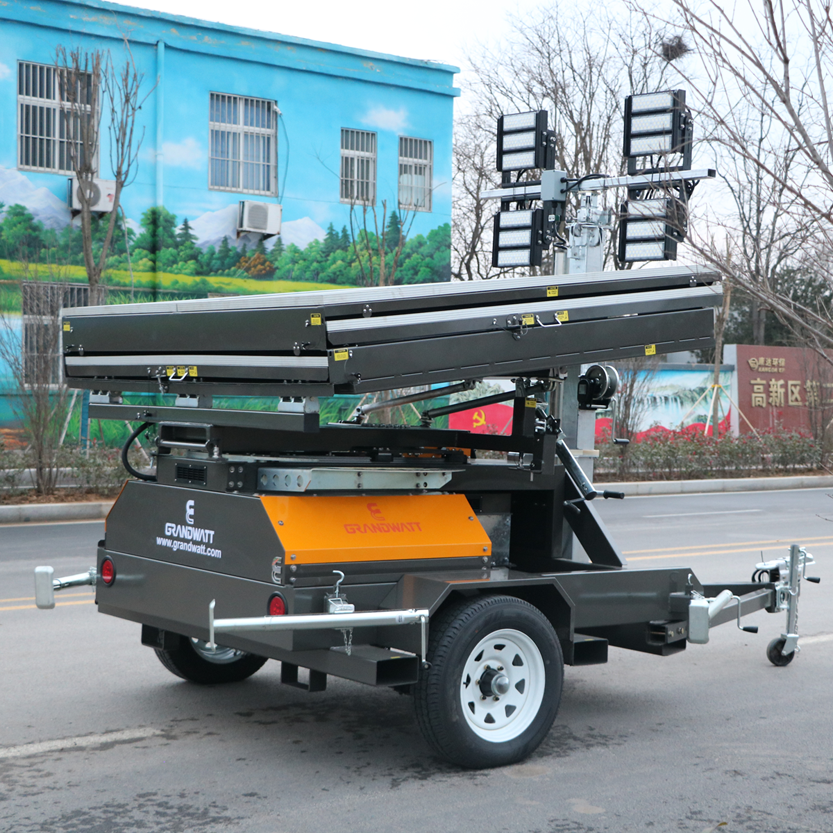

Solar Light Tower
The Grandwatt innovative SX9 series
solar light tower is efficient and delivers high performance, giving workers
good visibility while allowing sites to increase sustainability with zero CO₂
emissions and zero noise, zero operating costs (diesel fuel, maintenance,
labor), it is 100% renewable energy, stronger structure can load more power
solar panels and batteries, patented rotating mechanism can adjust angle of
solar panel to best align with the sun's location to achieve maximum solar
yield. Equip with latest photovoltaic and Energy storage controller system,
very intelligent, it can be monitored by phone APP to set auto timer switches
auto turn on-off the lights.
Now our products covers Environmental light tower (Solar light tower, Hybrid light tower and Portable light tower), Diesel light tower, Generator set, Solar system (Quickly layout solar power station and Mobile solar energy generator with off-grid). In addition, there are more types of light tower for you to choose from: LED light tower, Metal Halide Light Tower， Mining Light Tower, and hydraulic light tower, Vertical Light Tower, etc.

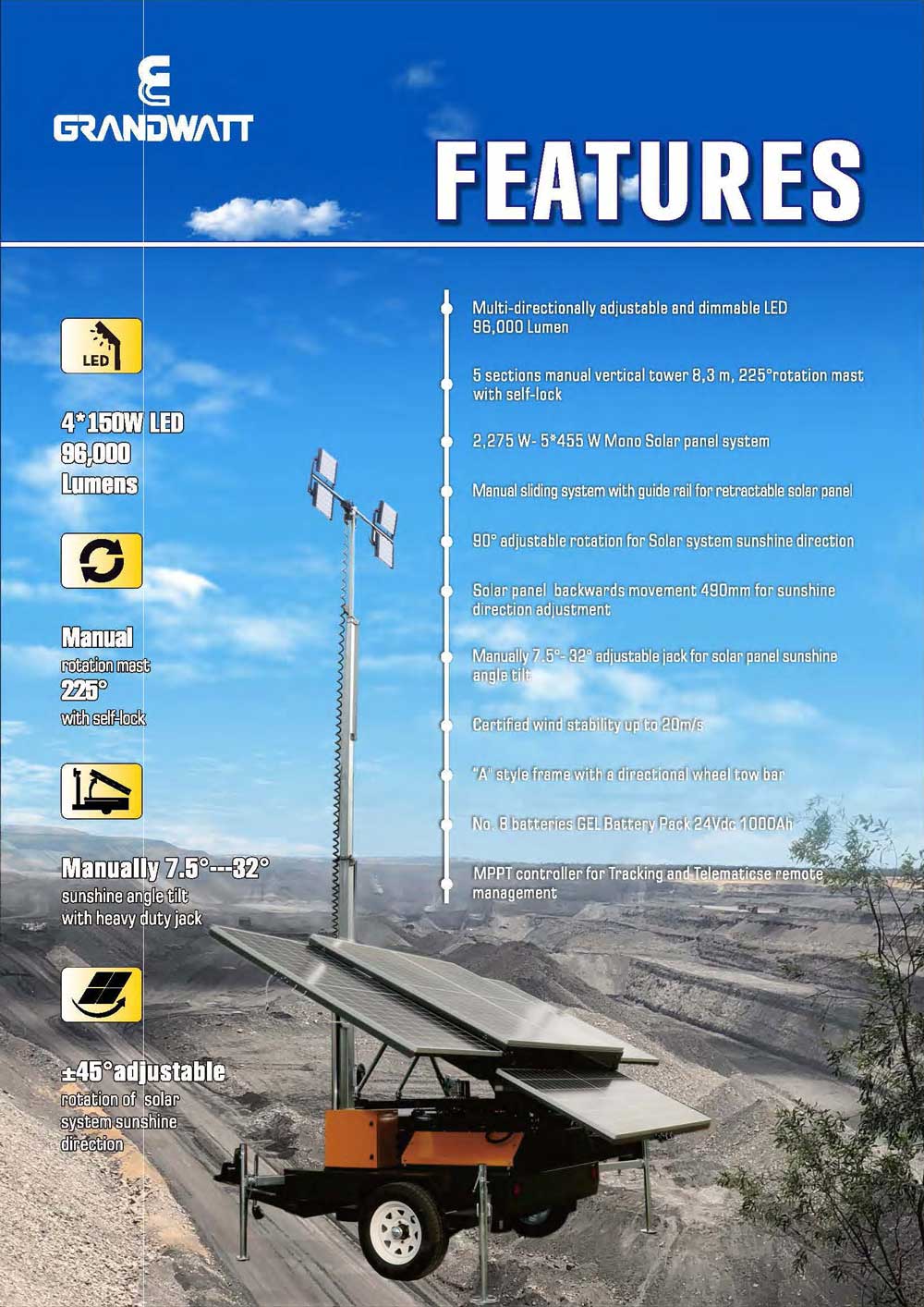

FEATURES
PRODUCT SPECIFICATIONS
1. How full the batteries be charged by solar are completely depend on the weather, season and location.
2. For keeping the lighting hours you need, please adjust the lighting time of controller or LED load by the dimming knob as the weather & season.
Solar Light Tower
Standard Model
SX9-R750/2275
SX9-P750/2275
Dimensions
Trailer Length
4,140 mm (13' 7")
Length for loading
2,375 mm (7' 9½")
Width
2,170 mm (7' 1½")
Max. length × Max. width
4,850 mm (15'11") × 4,570 mm (15')
Height/Hight for loading
2,840 mm (9'4")/ 2,530 mm (8'3½")
Height fully extended
8.3m ( 27'3" )
Gross weight
2,220 kg (4,894 lb)
Solar panel & battery system
System voltage
24 VDC
Solar panel system
2,275 W- 5*455 W Mono
Retractable panel system
Manual sliding system with guide rail
Solar system backwards movement
490mm for sunshine direction adjustment
Solar system sunshine direction
90°(± 45°) adjustable
Solar system sunshine tilt
Manually 7.5°- 32° adjustable with a jack
Battery
1000 Ah Gel battery
450Ah Lithium battery
Controller (Day time)
1*100 A MPPT controller
Mast & Luminaire
Luminaire(DC 24V with dimming)
750 W-5*150 W LED
750 W-5*150 W LED
Luminous flux
112,500 Lumen
112,500 Lumen
Auto LED turn on-off
Controlled by timer of MPPT controller
Manual LED turn on-off
Circuit breaker
Mast style
5 sections; 2,500 lb manual winch

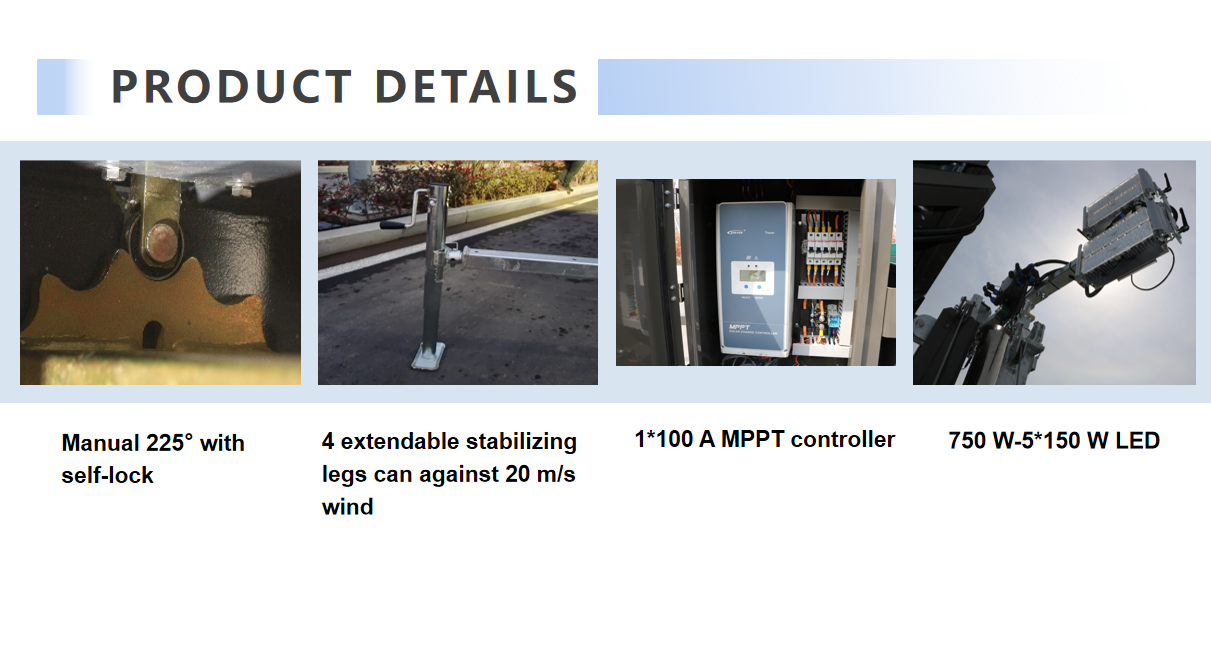

Mast rotation
Manual 225° with self-lock
Light tilt
Manual
Trailer
Suspension & brake
Single leaf-spring axle without brake
Tow bar
"A" style frame with a directional wheel
Forklift slots
2 sides + rear
Stabilizing leg
4 retractable jacks
Wheel
16" rim with regular tire
Tow Coupler
Switchable 2" ball coupler with 2½" pintle ring
Taillights
Night, turning & stopping taillights
Max towing speed
100 km/h (62 mph)
General Data
Max. lighting hours with batteries fully charged
12 hours (Theoretical data for reference only)
Max. wind resistance (All solar panels retracked)
20 m/s (45 mph)
Max. quantity for loading in 40' high cube
5
Optional parts or accessories
External DC power input
DC 24V receptacle
Battery Charger with cable & plug
1 pcs
R-Regular configuration—Gel batteries; P-Premium configuration—Iron-lithium batteries
