AK7 Series Gas Light Tower
AK7-GAS light tower is powered by durable and famous America Kohler engine and Italy Mecc Alte alternator, a brand new gas light tower with big gas fuel tank. It is compact and lightweight, one 40’ container can load 24 sets to save much transport cost. It is with 1 retractable tow bar with a supporting jack, 2 front & 1 rear extendable jacks to be stable, Each LED can be adjusted 360° by individually adjustable 4 light mounting bar to provide clear, direct light to suit any application. This small light tower can be extended to 7 meters.

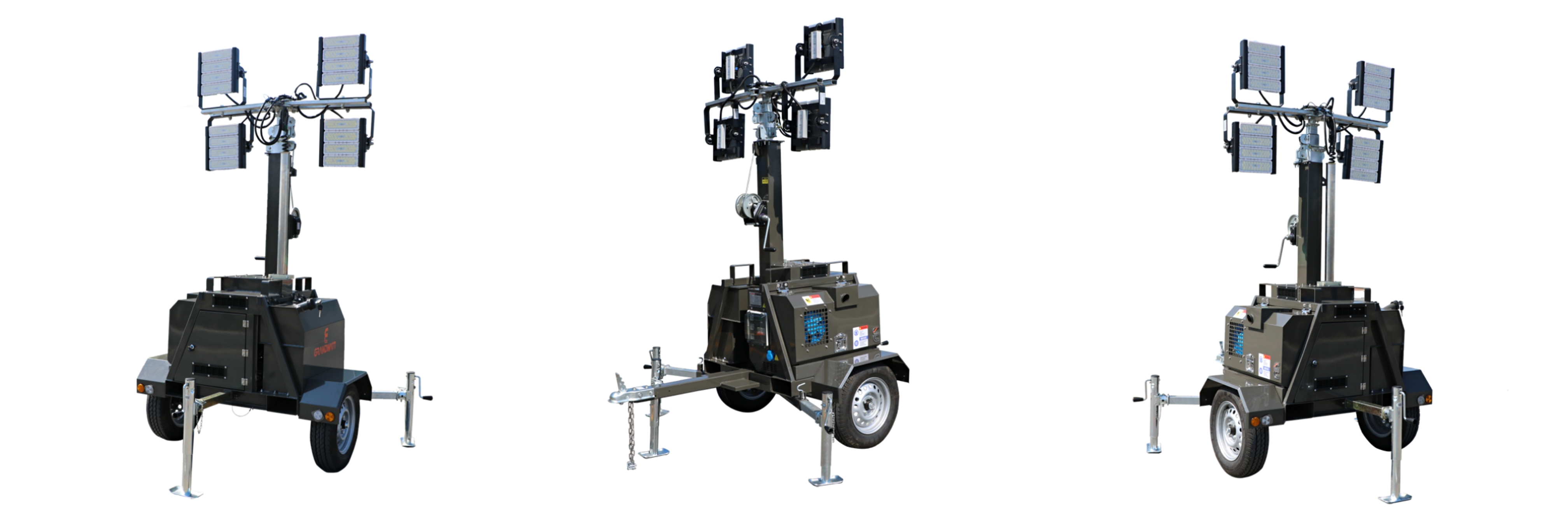

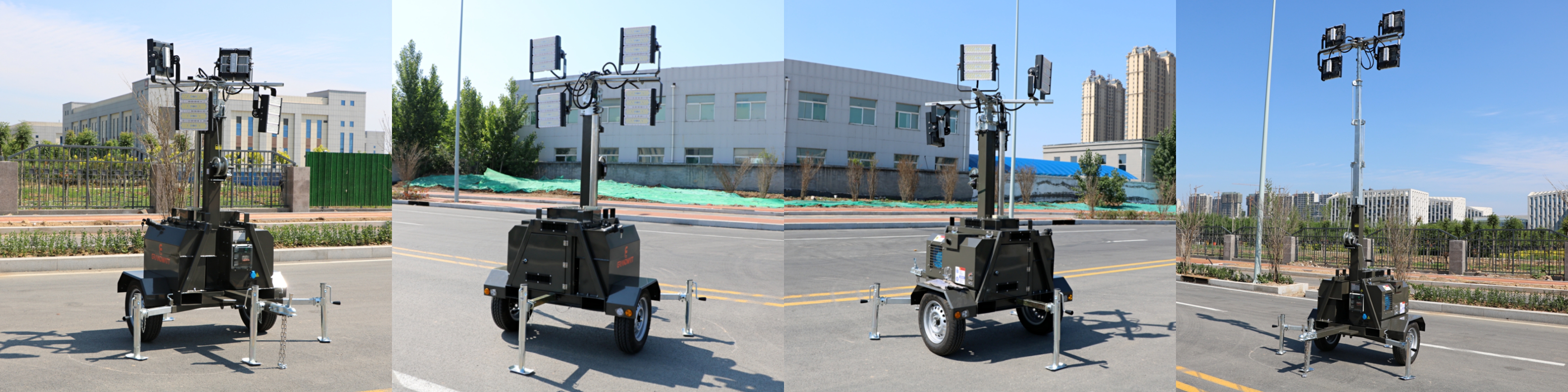

Physical display
|
AK7 Series Gas Light Tower |
||
|
Standard Model |
AK7-R800-gas |
|
|
Dimensions |
Length |
2,150 mm (7' ¾" ) |
|
Length for loading |
765 mm ( 2' 6" ) |
|
|
Width |
1,420 mm ( 4' 8" ) |
|
|
Height |
2,615 mm ( 8'7") |
|
|
Height for loading |
2,250 mm ( 7' 4½" ) |
|
|
Height fully extended |
7 m (23' ) |
|
|
Gross weight |
445 kg ( 1,200 lb ) |
|
|
Generator & Engine |
Engine model |
CH440 Kohler (gas) |
|
Engine start |
Manual |
|
|
Engine speed (rpm) |
3000 |
|
|
Engine characters |
1 cylinders, 4 cycles & Air cooling |
|
|
Combustion & Aspiration |
Direct injection & naturally aspirated | |
|
Alternator model |
S16W-90HD Mecc Alte |
|
|
Hz & voltage |
50Hz 230VAC |
|
| Alternator insulation & IP |
Class H & IP23 |
|
|
Fuel tank |
64 liters ( 16.5 US gal) Metal Sheet |
|
|
Operating hours |
145 hours |
|
|
Control system |
Cylinder temp & oil pres alarm, battery volt & hour gauges & Hz display |
|
|
Max. acoustic pressure |
65 dB(A) at 7 meters away |
|
|
Mast & Lights |
Light |
4*200W LED |
|
Luminous flux |
29,000 Lm/Light |
|
|
Mast sections |
5 |
|
|
Mast extension |
Manual |
|
|
Lighting direction |
Torsion axle without brake |
|
|
Light tilt |
Manual |
|
|
|
Suspension & brake |
Torsion axle without brake |
|
|
Tow bar & Stabilizing leg |
1 retractable tow bar with a supporting jack, 2 front & 1 rear extendable jacks |
|
General Data |
Wheel |
12" rim with regular tire |
|
|
Tow Coupler |
2", 50 mm ball coupler or 3" pintle ring |
|
|
Tail reflectors |
Fitted |
|
|
Max. against wind |
20 m/s (45 mph) |
|
|
Max towing speed |
100 km/h ( 62 mph) |
|
Max. load in 20/40' container |
12/24 | |
|
Designed by GRANDWATT Electric Corp. (U.S.A.) Made by GRANDWATT Electric Co., Ltd. (China) |
||
