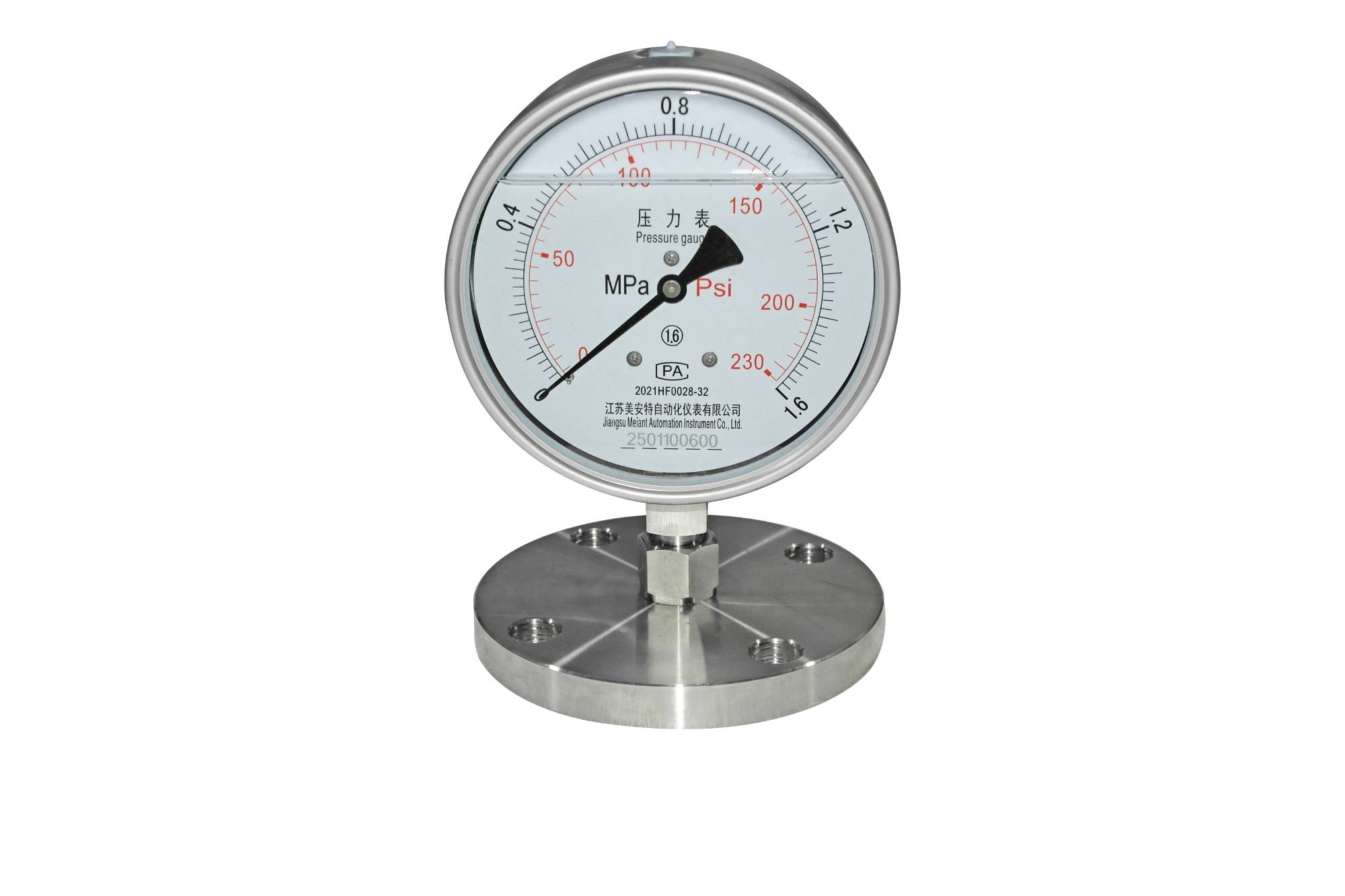

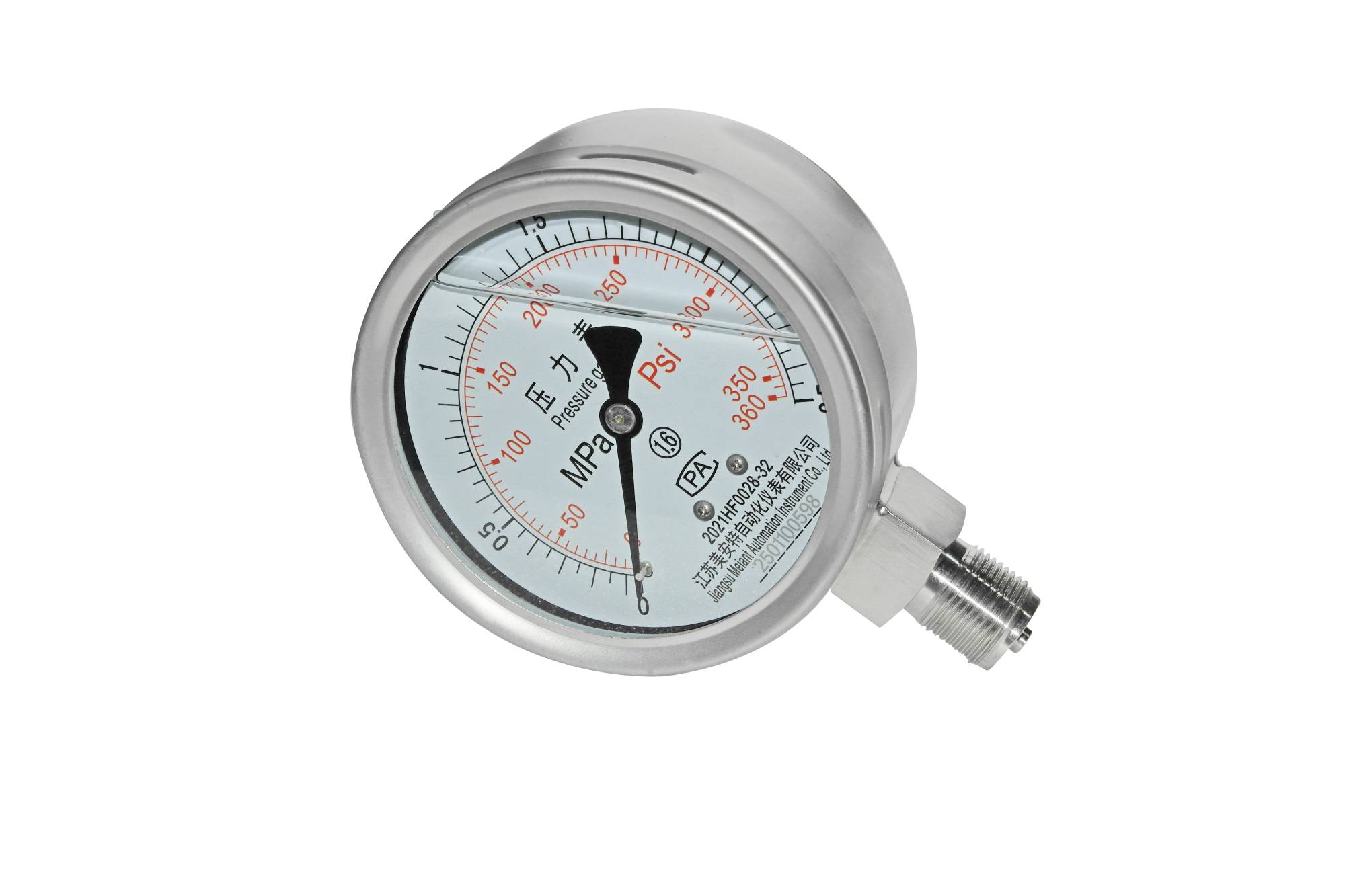

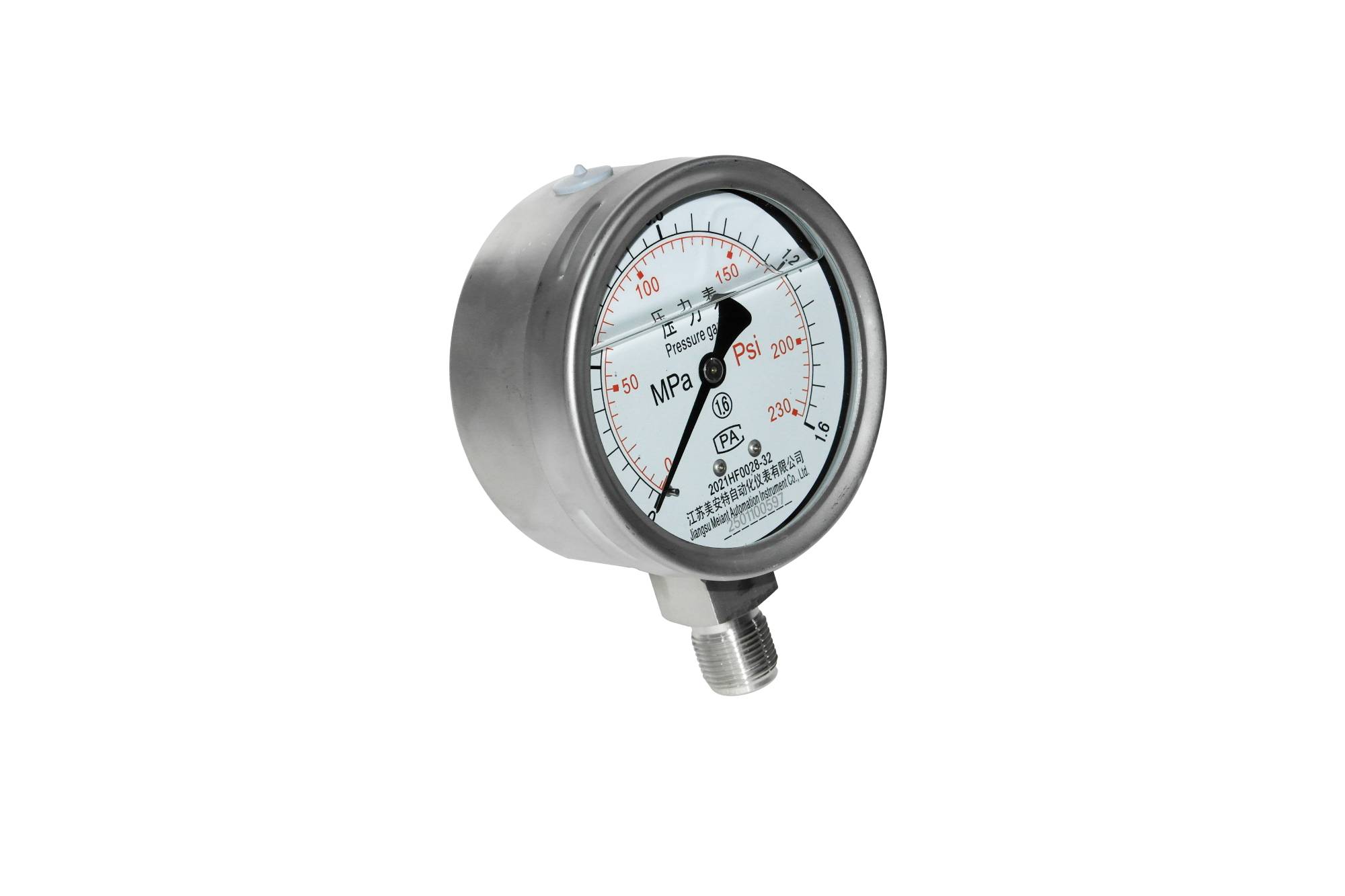

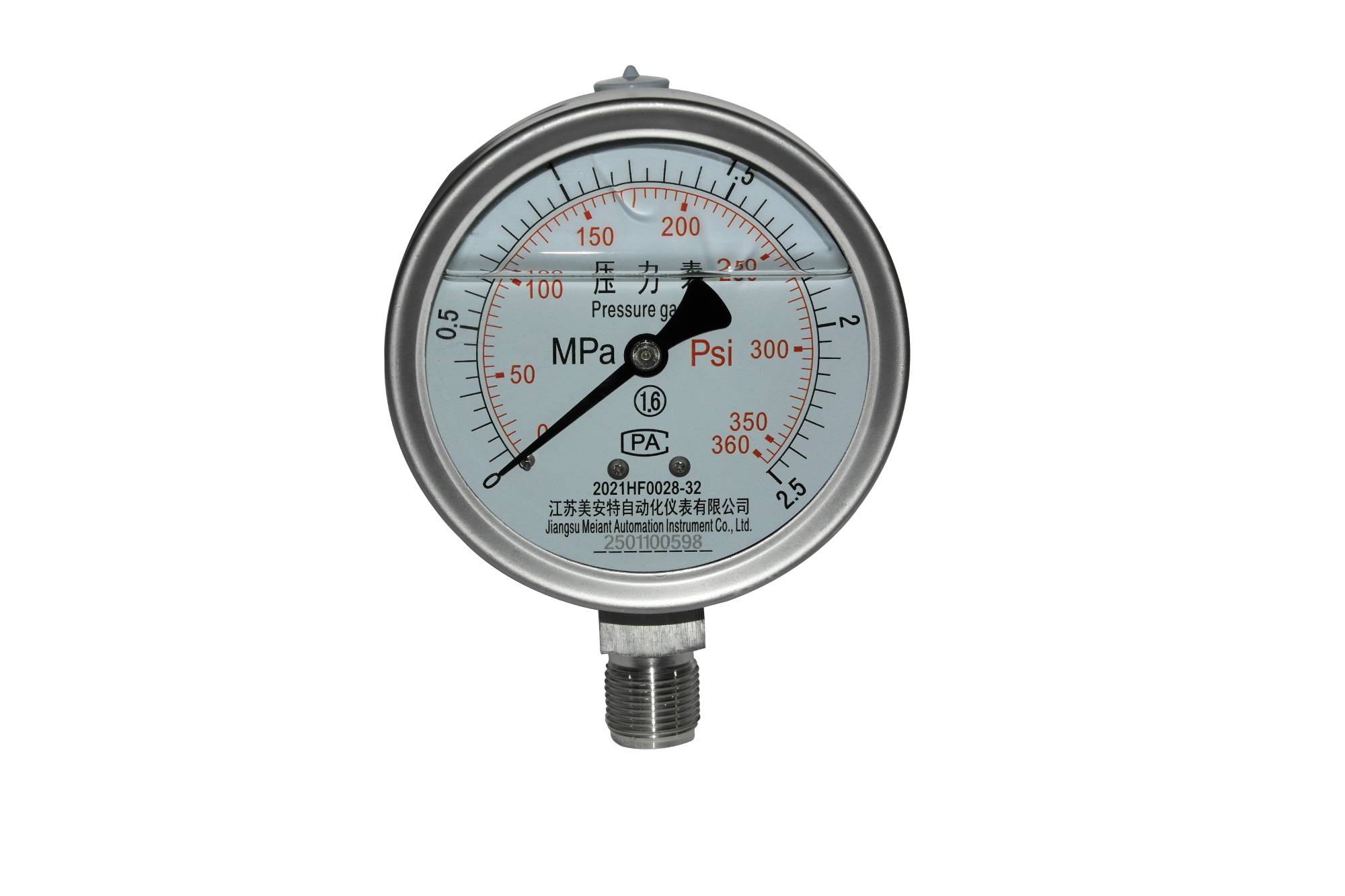

Stainless steel pressure gauge
2 month ago
Product details
Product Overview
Stainless steel pressure gauges are widely used in industrial sectors such as petroleum, chemical industry, chemical fiber, metallurgy, power stations, etc. to measure the pressure of various fluid media in process flows with high requirements for corrosion resistance and earthquake resistance. They are suitable for detecting the pressure of media with strong corrosive properties and in harsh external corrosive environments. The overall structure of this instrument is reasonably designed and the process is exquisite, with high measurement accuracy and lasting stability.
Working Principle
The stainless steel pressure gauge works based on the Bourdon tube principle. When the pressure medium enters the Bourdon tube, the pressure in the tube causes the Bourdon tube to deform elastically, and the free end of the Bourdon tube is displaced. The displacement is transmitted to the pointer through the connecting rod and gear transmission mechanism, and the pointer rotates on the dial to indicate the corresponding pressure value. The entire measurement process is intuitive and accurate, and can quickly reflect the pressure changes.
Stainless steel pressure gauges are widely used in industrial sectors such as petroleum, chemical industry, chemical fiber, metallurgy, power stations, etc. to measure the pressure of various fluid media in process flows with high requirements for corrosion resistance and earthquake resistance. They are suitable for detecting the pressure of media with strong corrosive properties and in harsh external corrosive environments. The overall structure of this instrument is reasonably designed and the process is exquisite, with high measurement accuracy and lasting stability.
Working Principle
The stainless steel pressure gauge works based on the Bourdon tube principle. When the pressure medium enters the Bourdon tube, the pressure in the tube causes the Bourdon tube to deform elastically, and the free end of the Bourdon tube is displaced. The displacement is transmitted to the pointer through the connecting rod and gear transmission mechanism, and the pointer rotates on the dial to indicate the corresponding pressure value. The entire measurement process is intuitive and accurate, and can quickly reflect the pressure changes.
Performance indicators
| Ambient operating temperature | -25~70℃℃ (liquid is filled in the shell) -40~70℃C (no liquid is filled in the shell) |
| Temperature influence | no more than 0.4%/10℃C (operating temperature deviates from 20+5°C) |
| Vibration resistance in working environment | V·H·4 level (liquid is filled in the shell) V·H·3 level (no liquid is filled in the shell) |
| Shell protection level | IP64 |
| Weight | 0.2kg (Y-60B-F) 06kg (Y-100B-F) 1.0kg (Y-150B-F) |
Performance Advantages
High-precision measurement: Using advanced manufacturing technology and precision adjustment technology, it can accurately measure the pressure value, and the minimum scale can accurately display the subtle fluctuations in pressure, providing reliable data for production process control and equipment operation monitoring, helping enterprises to accurately control the production links.
Excellent corrosion resistance: The key components such as the case, joints and Bourdon tube are made of high-quality stainless steel, such as 304, 316L, etc., which can effectively resist the erosion of various corrosive media, including acids, alkalis, salt solutions and various chemical gases. Whether in the highly corrosive environment of chemical production or in the humid marine environment, it can work stably to ensure long-term reliable measurement.
High stability: The internal structure has been optimized, the transmission mechanism is stable and reliable, and has good seismic resistance. Under complex working conditions such as equipment vibration and impact, it can still maintain accurate pressure indication, effectively avoid measurement errors caused by environmental factors, and ensure the continuity and stability of pressure monitoring.
Wide range coverage: The measurement range is wide, from micro pressure to high pressure, which can meet the needs of different scenarios. Whether it is pressure monitoring of low-pressure pipelines or pressure control of high-pressure reactors, you can find suitable range specifications to achieve all-round pressure measurement.
Clear and easy-to-read dial: The dial adopts a large size design, with clear scales, clear markings, and eye-catching pointers, making it easy to read the pressure value even at a long distance or in poor lighting conditions. Some models are also equipped with luminous pointers and scales to further improve readability at night or in dim environments.
Meiante Technology Co., Ltd. mainly deals in various measuring instruments, including Level Instrument, Flow Meters, Pressure Instruments, Temperature Instrument and Calibration Instrument, etc.
If you have any needs, please contact us.
If you have any needs, please contact us.
