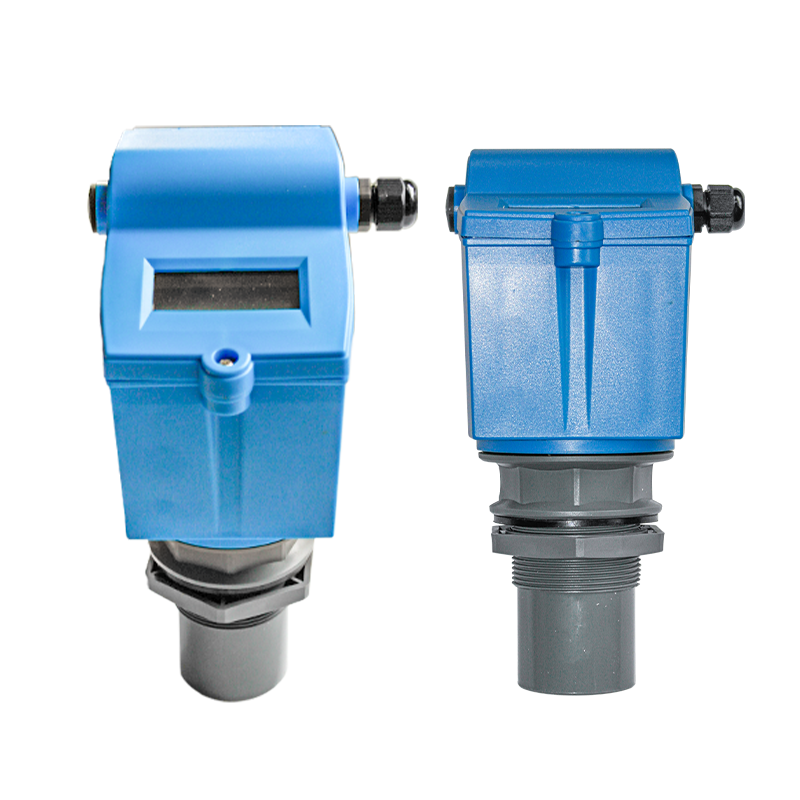

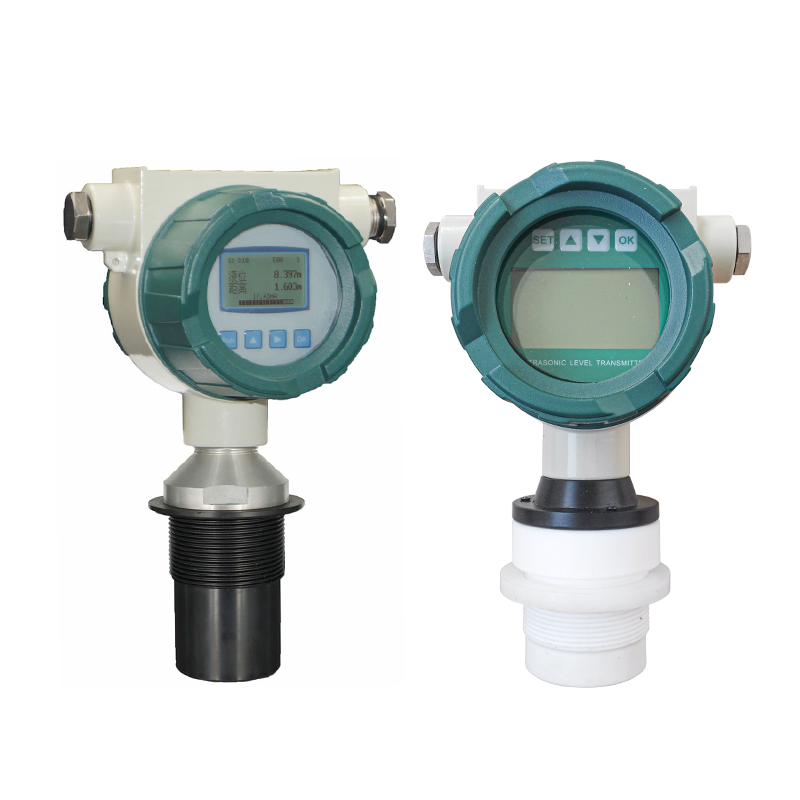

Ultrasonic level meter

4 week ago
1 0
Product details
Ultrasonic level meters are widely used in many fields due to their non-contact measurement, high precision, and strong anti-interference ability. The following are some common application scenarios:

Chemical industry
Various chemical raw material storage tanks: used to measure the liquid level of corrosive chemical raw material storage tanks such as sulfuric acid and hydrochloric acid, avoid corrosion of contact measurement equipment, and ensure the accuracy of liquid level measurement and the safety of equipment.

Reactor level monitoring: During the chemical reaction process, the liquid level in the reactor is monitored in real time to provide accurate liquid level data for reaction process control, ensuring the smooth progress of the reaction and safe production.

System: integrated / two-wire / four-wire
Basic parameters
Measuring range 0~5m, 0~10m, 0~15m, 0~20m
Blind zone 0.25~0.6m
Measurement accuracy ±0.3%FS (standard conditions)
Resolution ±1mm
LCD display Chinese and English display of liquid level, distance, current, echo waveform / English display of liquid level, distance

Input
Power supply voltage DC12~36V/AC100~240V DC12~36V
Current >100mA
Ripple requirement less than ±50mV

Output
Analog signal 4~20mA/12bit/load 500Ω
Digital signal digital signal RS485 interface/Modbus RTU protocol
Switch quantity SPST relay, contact power 3A250VAC/5A30VDC

Material
Transmitter die-cast aluminum alloy ABS engineering plastic
Probe waterproof ABS/corrosion-resistant ETFE/PTFE
Flange ABS nut/ETFE nut/DN32 carbon steel flange, flanges of other materials can also be customized

Environmental conditions
Ambient temperature -20°℃~+60°℃*
Protection level IP67/IP66/IP65


Process conditions
Process temperature 40℃~+90℃℃, high temperature probe is required when the temperature exceeds 60℃
Process pressure ar/0.08~0.2Mbar/below 3000 meters above sea level

Petroleum and natural gas industry
Crude oil tank level measurement: Accurately measure the liquid level of crude oil tanks to help companies grasp crude oil reserves in real time and provide data support for production scheduling and sales.

Liquefied natural gas (LNG) tank level monitoring: Due to the low temperature and flammability of LNG, the non-contact measurement method of ultrasonic level meters can safely and accurately monitor its liquid level to ensure the safe operation of the tank.

Water treatment industry
Water plant clear water tank level monitoring: real-time monitoring of the clear water tank level, providing data for the dispatch of the water supply system, and ensuring the stability and sufficiency of urban water supply.

Sewage treatment plant sedimentation tank level measurement: During the sewage treatment process, monitoring the level of the sedimentation tank helps to control the sewage treatment process and sludge discharge, and improve the sewage treatment efficiency.

Meiante Technology Co., Ltd. mainly deals in various measuring instruments, including Level Instrument, Flow Meters, Pressure Instruments, Temperature Instrument and Calibration Instrument, etc.

If you have any needs, please contact us.
