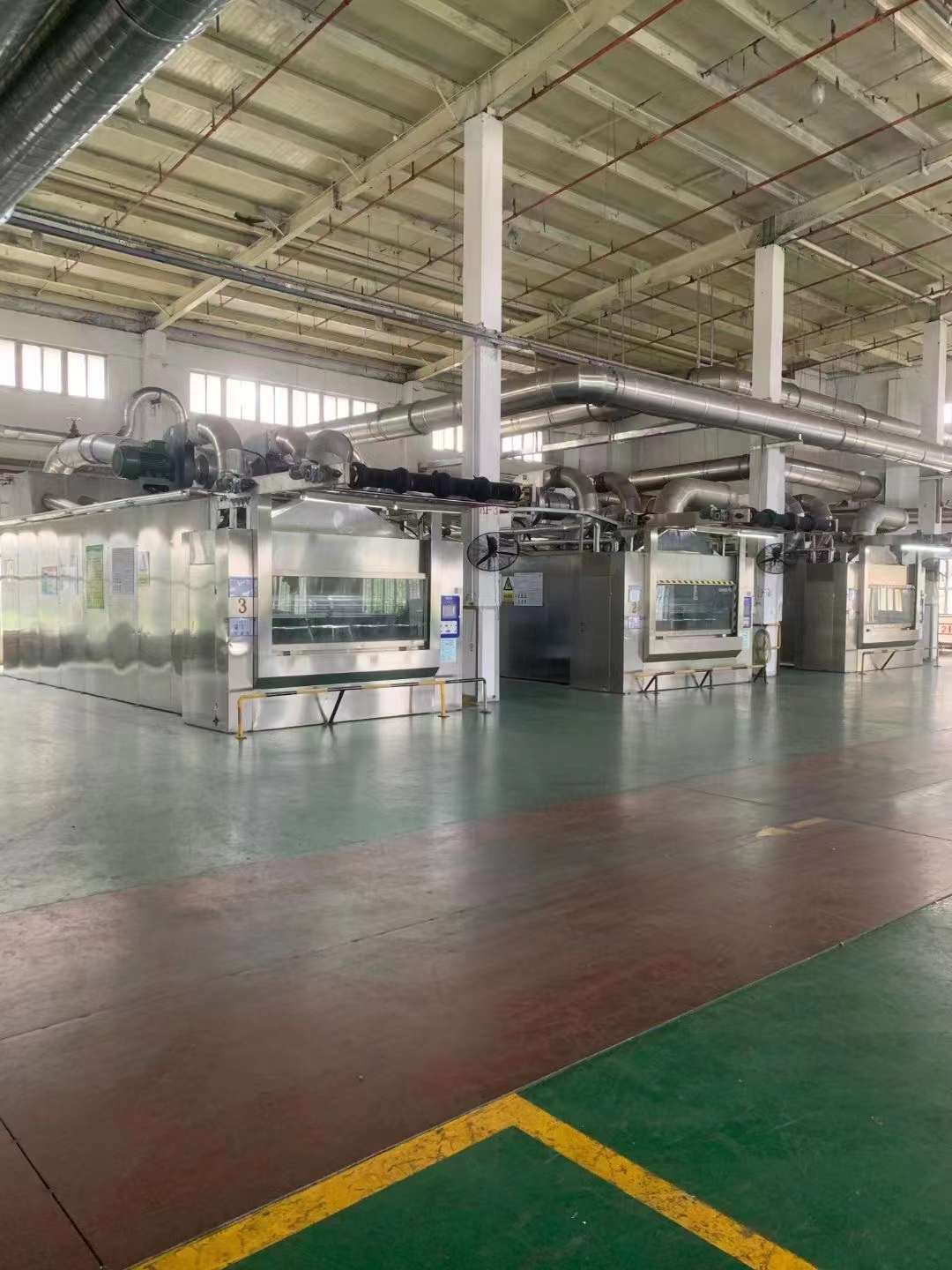

tumbling machine
3 year agoTumbling Machine for Flannel
Main Introduction:
Tumbling machine is suitable for velvet fabric, makes fabric with a fluffy and softening touch feeling, it can also shrinking and drying fabric.
Tumbling machine is driven by air based on aerodynamics. Under the condition of high temperature and pressure inside tumbling machine, the cloth sucked into the venture tube in the form of a rope, the cloth rubbed inside of tube and spurted out and become expanded. Then knocked onto the stainless-steel grid plates and falled into the Teflon skid and automatically slided to the front of the tumbling machine, then recycle processed cloth, fabric will be obtained the unique style. Our tumbling machine is designed for woven cotton, linen and polyester pile fabrics like coral fleece, flannel, velvet, pv fleece and so on, making the fabric a soft touch and fluffy appearance. Tumbling machine with a high production is popular in fabric manufacturer around the world. At the same time, tumbling machine also has preshrinking and drying functions, which can also be customized.
- Suitable Fabric: velvet fabric, fleece, cashmere
- Daily production: 10 to 20 tons
- Heating: Hot oil/steam/natural gas
- Speed: 30-700M/min
Machine Model
QY3000-4DRY-10000
GY-400
Pipe Quantity
4
1
Machine Capability
100-600KG
180KG
Fabric Speed
30-700M/min
28RPM
Heating source
Hot
oil/steam/narural gas
Thermal
oil
Max Temperaure
165 ℃
160 ℃
Max Installde Power
135.5KW
14 KW
Actual Consumption
60KW
8.4 KW
Steam Pressure
1.0-3.0Kg
0.4-0.8 Mpa
Air Pressure
0.4-07Mpa
0.4-0.8 Mpa
Total weight
11.5Ton
1.2 TONS
Dimensions
15.5m*5.9m*4.9m
2.24*1.86*2.78
