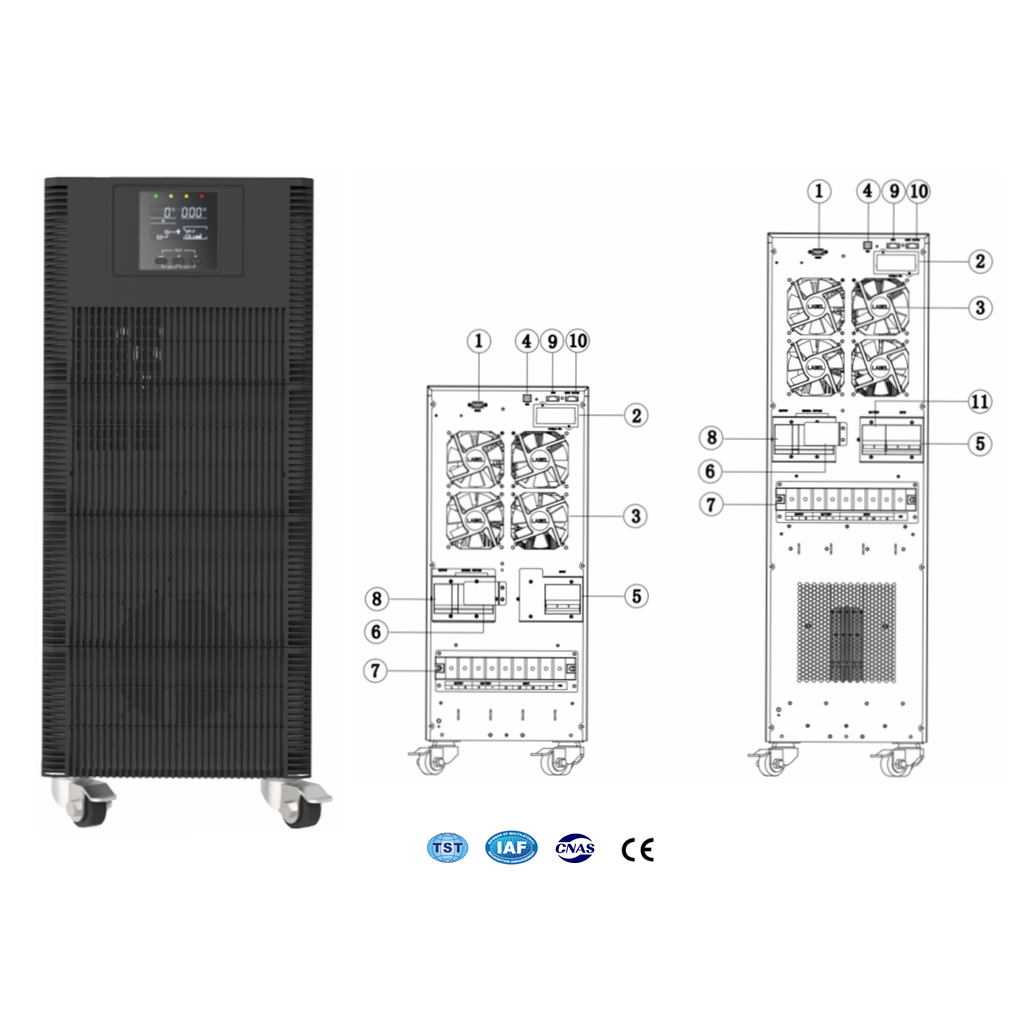

UN11 Series High Frequency Online UPS: Your Reliable Power Protection Solution

The UN11 Series High Frequency Online UPS is a cutting-edge power protection solution designed to provide reliable and efficient backup power for various applications. With a capacity of 15kVA/15kW and 20kVA/20kW, this Tower Online UPS system ensures continuous power supply and protects your critical equipment from power outages and voltage fluctuations.

Single Phase Online UPS Key Features

- True Online Double-Conversion Technology: Ensures stable and high-quality power output, providing pure sine wave power with a power factor of 1 (kVA/kW) to support your equipment efficiently.

- Wide Input Voltage Range: Capable of handling input voltages from 95Vac to 300Vac, making it highly adaptable to different power conditions.

- Intelligent Slot and Communication Interface: Equipped with an intelligent slot that supports SNMP, RS485, and AS400 cards (optional), as well as Smart RS232/USB ports with monitoring software, allowing for easy remote management and monitoring.

- Auto Fan Speed Adjustment: Automatically adjusts fan speed based on the system's temperature and load, ensuring optimal cooling and energy efficiency.

- Advanced PFC Technology: Features advanced power factor correction (PFC) technology with an input power factor of over 99%, reducing energy consumption and improving power quality.

- ECO Mode Operation: Offers an energy-saving ECO mode with an efficiency of up to 98%, helping to reduce power consumption and lower operating costs.

- Adjustable Battery Configuration: Allows for flexible battery setup with 16/20pcs * 7/9AH 12VDC batteries, ensuring customized backup time to meet your specific needs.

- Generator Compatible: Designed to work seamlessly with generators, providing reliable power protection even in remote or off-grid locations.

- Emergency Power Off (EPO) Function: Includes an emergency power off function for added safety and control.

- External Maintenance Status Interface: Features an external maintenance status interface that can be linked with an external switch, facilitating easy maintenance and monitoring.

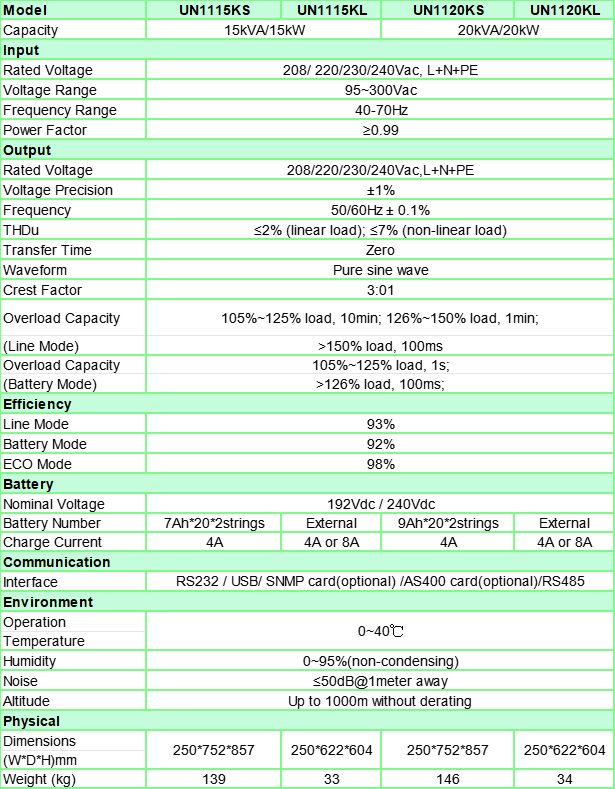

Specifications

- Input Voltage Range: 95~300Vac

- Output Voltage Precision: ±1%

- Frequency Converter Mode: 50Hz/60Hz settable

- Overload Capacity: Up to 150% load in line mode and battery mode, providing robust protection against sudden power surges.

- Efficiency: Line Mode 93%, Battery Mode 92%, ECO Mode 98%

- Battery Options: 7Ah*20*2strings or 9Ah*20*2strings external battery options

- Operating Environment: 0~40℃ temperature, 0~95% humidity (non-condensing), up to 1000m altitude without derating

-Noise Level: ≤50dB@1meter away, ensuring quiet operation

Models Available

- UN1115KS: 15kVA/15kW, dimensions: 250*752*857mm, weight: 139kg

- UN1115KL: 15kVA/15kW, dimensions: 250*622*604mm, weight: 33kg

- UN1120KS: 20kVA/20kW, dimensions: 250*752*857mm, weight: 146kg

- UN1120KL: 20kVA/20kW, dimensions: 250*622*604mm, weight: 34kg
