Product details

About braided sleeve: Silicone Glass fiber tube is woven from imported high silicon and glass fiber, which belongs to Insulation Tubes. It has the characteristics of extremely low thermal conductivity, stable chemical property, good electrical insulation, tight preparation, not easy to loose, non asbestos products, non-toxic and harmless to human body; Its SiO2 content is ≥ softening point close to 1700 ℃. It can be exposed to the high temperature open fire area of 1000 ℃ for a long time, and can effectively protect hoses and cables in extremely high temperature environment.

Technique Data-Sheet
Material:	Imported high silica fiber
Temperature resistance:	The continuous working temperature is 1000 ℃, and it can withstand 15 ~ 30 seconds under the high temperature of 1650 ℃.
SiO2 content:	≥96%
Color:	White
Cutting Tool:	Hot Knife
tensile strength:	＞6000MPa
Application:	The products are widely used in cables, hoses, oil pipes, exhaust pipes, etc. in high-temperature environment in metallurgy, petrochemical, electric power, automobile, aviation and other fields.

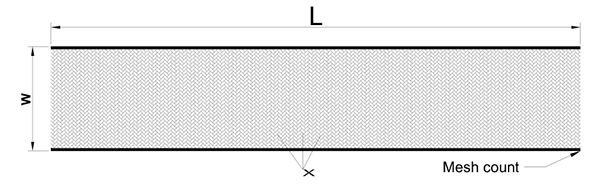

Product Drawing

About Silicon Glass Fiber Tube

Size specification
Model No.	Natural Width(W)	Packing（L）
HTS-G5	Φ5	30m
HTS-G8	Φ8	30m
HTS-G10	Φ10	30m
HTS-G15	Φ15	30m
HTS-G20	Φ20	30m
HTS-G25	Φ25	30m
HTS-G30	Φ30	30m
HTS-G35	Φ35	30m
HTS-G40	Φ40	30m
HTS-G64	Φ64	30m
HTS-G76	Φ76	30m
HTS-G80	Φ80	30m
HTS-G86	Φ86	30m
HTS-G90	Φ90	30m
HTS-G96	Φ96	30m
HTS-G120	Φ120	30m

Unit：mm

Remarks:

1. W means natural and flat width.

2. Special packaging, special size not listed in the specification can be customized according to customer requirements.

3. Please make the confirmation refer to the sample acknowledgement for detailed product parameters.
