Rotary arm pre-stretch wrapping machine
3 year ago

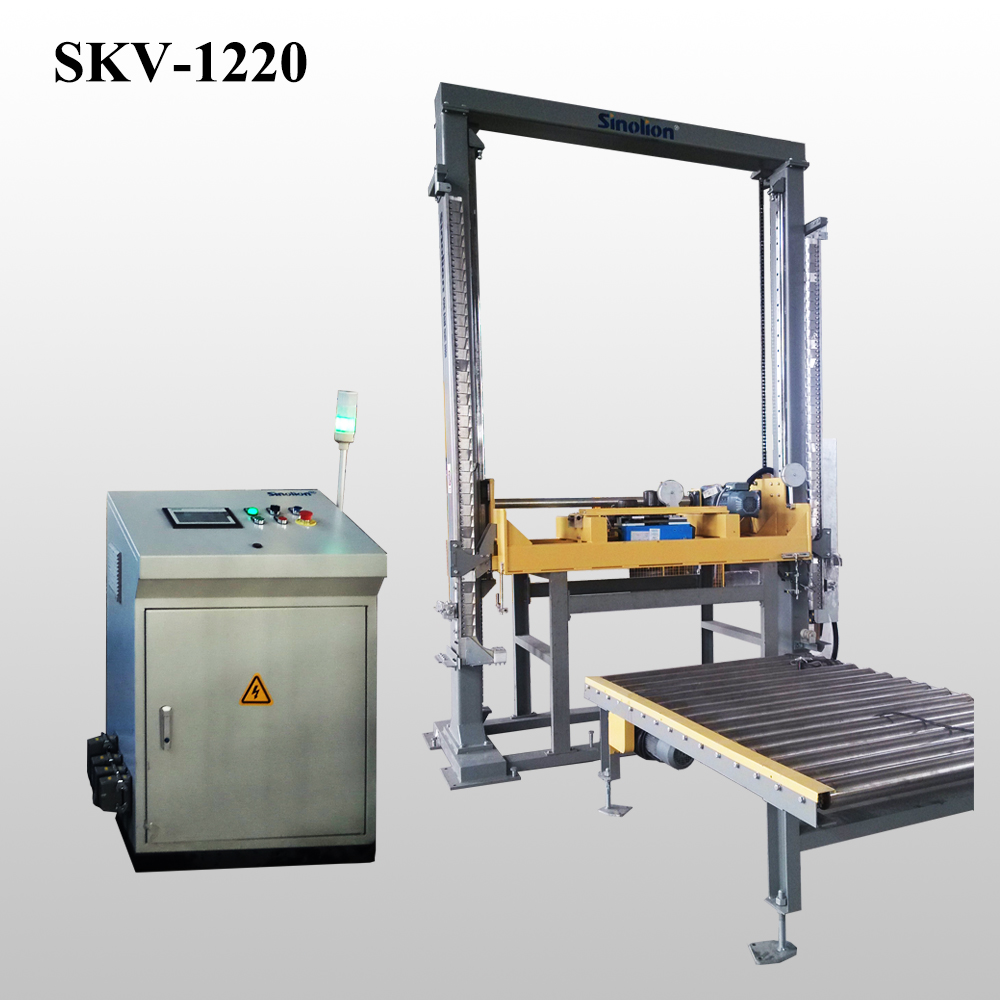

The on-line strapping machine SKV-1220 is specially suitable for strap the pallets horizontally. The PLC is made by world-famous brand, which ensure the advanced property and reliable operation. This machine is used with the pallet wrapping and conveying line automatically in no need of manual operation. The strapping head is extremely reliable robust mechanism design and high engineering standard strapping head.
I. PLC is easy to operation and TEACH-IN programming. It has 10 strapping patterns with up to 10 different strapping positions.
II. The sealing time and cooling time are adjustable, which guarantee high sealing efficiency.
III. Vertical arch movement with inverter to avoid vibrations.
IV. Strapping head VK10K120-16 in brand TITAN Germany is imported from Germany, which can guarantee the high efficiency and stability.
Technical data
|
Item |
Specifications |
|
Strapping width |
Max. 1200mm |
|
Strapping height |
Max. 2000mm |
|
Feeding speed of strap |
4.6m/second |
|
Tension force |
200-2500N |
|
Material of strap |
PET |
|
Width of strap |
9.5mm, 12.5mm, 15.5mm |
|
Thickness of strap |
0.6-0.8mm |
|
Strapping efficiency |
13-15 second/strapping |
|
Power supply |
220V, 380V, 400V 50/60Hz 3PH |
|
Power |
3 kw |
|
Inner diameter of strap roll |
406mm |
|
Width of strap roll |
150mm |
|
Air pressure |
0.5-0.7Mpa |
