Integrated wrapping and strapping machine
3 year ago
T1650FM
It is a semi-automatic machine for wrapping palletized loads with stretch film.This packaging machine has been widely used in various packaging areas including glass products, hardware tool, electric product,paper, ceramic,chemical, food, beverage, building material.

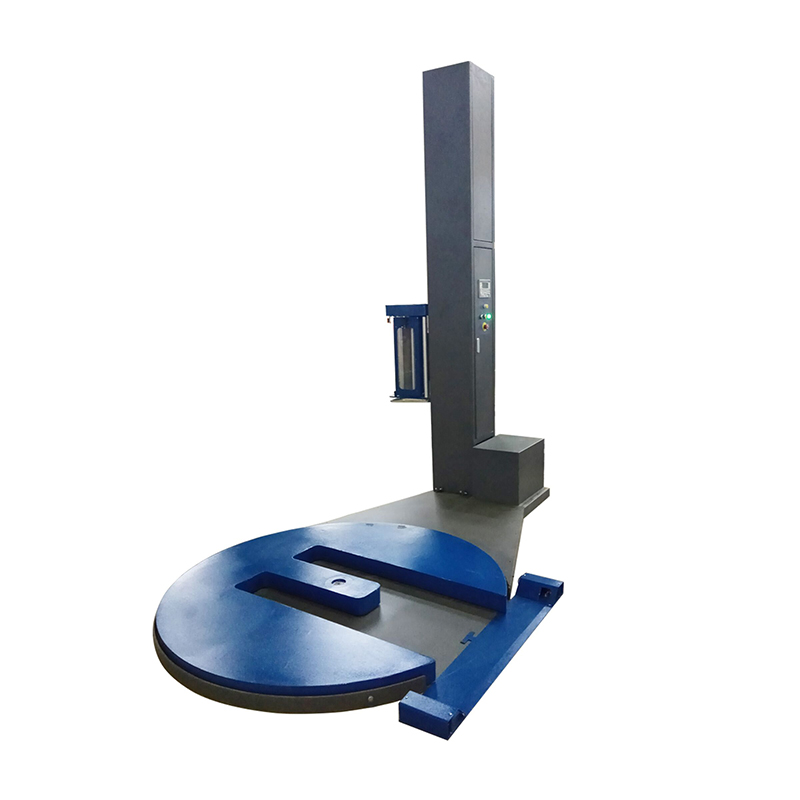

Horse Shoe turn table designed
although the Horse Shoe turntable is helpful for working with hand pallet Jack But the maximum load-bearing capacity of the turntable is only 1000kg.So you need to know your cargo weight before buy the machine
1. Wrapping size
500-1200mm (L) *500-1200mm (W)
2. Packaging height
Max.2400mm (1800/2800mm availiable)
3. Work efficiency
20-40 loads/H
4. Turntable speed
0-12RPM (adjustable, soft start & stop)
5. Bearing
Max. 1000kgs
6. Turntable size
D=1650mm, H=76mm
7. Film carriage
motorised pre-stretch
8. Tower
Height 2800mm
9. Control system
PLC
10. Weight
600kgs

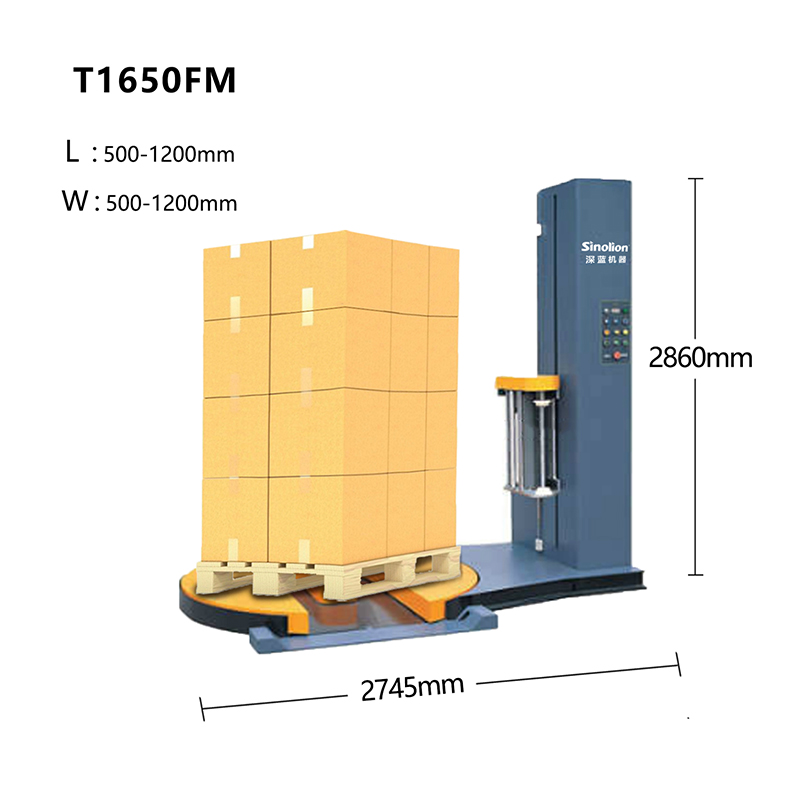

11. Dimension
2745mm*1784mm*2860mm
12. Power
Turntable 0.75kw;film carriage 0.35kw;tower 0.37kw 220V 50 HZ 1Phase
Some parts of the machine can be exchanged according to customer requirements
