Pallet on-line turntable stretch wrapper

An automatic pallet stretch wrapper is a machine used to efficiently and securely wrap pallets with stretch filim. This type of machine is commonly used in warehouses, distibution centers, and manutacturing faciities to streamline the palet wrapping process and ensure that products are properly protected during storage and transportation.In addition to increasing efficiency, automatic pallet stretch wrappers also help to reduce waste by using the exact amount of stretch filmneeded to wrap each pallet, This not only saves money on materials but also helps to minimize the environmental impact ot packagingwaste.
Overall, an automatic pallet stretch wrapper is a valuable tool for any facility that regularly wraps pallets. lt can help to improveproductivity, reduce costs, and ensure that products are properly protected during shipping and storage.

Machine and wrapping size

Max load size: L1200 × W1200 × H2400mm

Turntable diameter: 1650mm

Mast height: 2800mm

Turntable height: 78mm

Turntable speed: 0-12rpm

Bearing: Max 2000kgs

Machine weight: 550 kg

Electrics: 220V, 50HZ, 1P

Controls
Photo-eye on film carriage to detect pallet height
Separate top wrap,bottom wrap & up-down wrap count select buttons
Reinforce wrap on certain height with button
0-12RPM variable turntable speed by frequency inverter
Separate variable carriage up/down speed
Cycle pause capability
Turntable
Go home position after wrap cycle finished
Soft start/soft stop
Heavy duty chain drive
Film carriage
Powered pre-stretch system up to 1:3.5 to min film consumption
Carriage door opens for effortless roll change and thread film
Film delivery variable speed by separate AC Drive Motor.
Heavy duty double-chain carriage lift, calm and safety.

Option:

Turnable diameter: 1800mm;

Mast height: 2200mm (for pallet height max. 1800mm)

Ramp

Auto cut and clamp

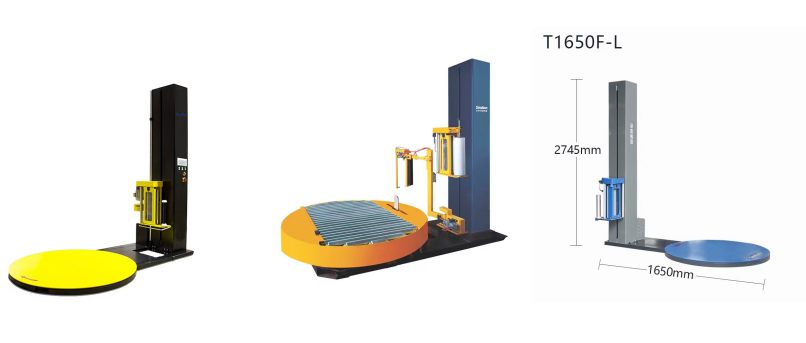

product images:
