CNC Horizontal Drilling Machine

3 year ago

19 0 

3 year

Product details

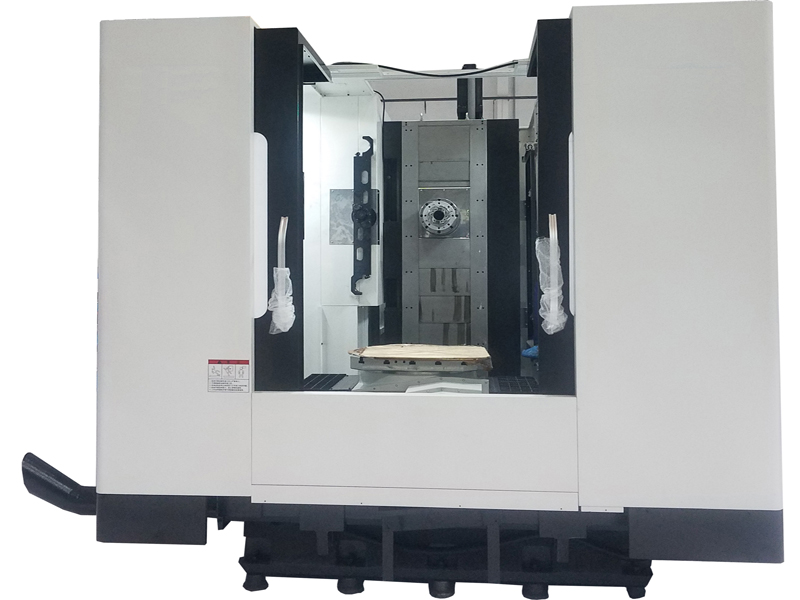

Horizontal CNC Machine Tool

Product Characteristic

1.The spindle of a horizontal machining center is oriented horizontally, allowing for the workpiece to be loaded on a horizontal table.
2.Bed body structure are designed in Inverted T-type.
3.Many horizontal machining centers are equipped with automation systems, such as pallet changers and robotic loading systems, to increase productivity and reduce labor costs.
4.The overall structure of the machine is compact, small thermal deformation, high rigidity and high precision.
5.It's one kind of CNC Machine Tools.
6.It is equipped with Robotic Part Loader or Overhead Gantry Robot Arm, it reduced labor cost greatly.

Technical Parameters

CNC Horizontal Machine Tool HMC630

Technical Parameters	Unit	HMC630
Travels
X/Y/Z Axis	mm	1000/800/800
Work table
Table Number	#	Single
Size (LxW)	mm	630x630
Maximum loading capacity	kg	1200
Indexing	°	1^。X360^。
Positioning accuracy	arc-second	10"
Repeated positioning accuracy	arc-second	2"
Feed rate
Rapid feed rate(X/Y/Z)	m/min	32/32/32
Spindle
Speed	rpm	30-3000
Maximum torque	N.m	235 (Belt)
Spindle motor power	kw	15/18.5
Tool change system
Tool magazine capacity	pcs	32
Maximum weight of tool	kg	25
Type of tool shank	#	BT50
Accuracy
Positioning accuracy	mm	±0.005/300 JIS
Repeated positioning accuracy	mm	±0.003/300 JIS
CNC control system
Controller	#	FANUC 0I-MF
Others
Weight	kg	16000

Standard configuration:

※Chain Type Tool Magazine With 32 Tools,

※Taiwan BT50 Spindle

※Taiwan HIWIN Ball screw And Linear Guideway

※Taiwan CNC Rotary Table

※Germany Bearing, Centralized Lubrication,Full Protection

※Electrical Hand Wheel,Alarm Light,Rs232 Interface

※Screw Type Chip Conveyor With Chip Flush
