CNC Horizontal Milling Machine

3 year ago

19 0 

3 year

Product details

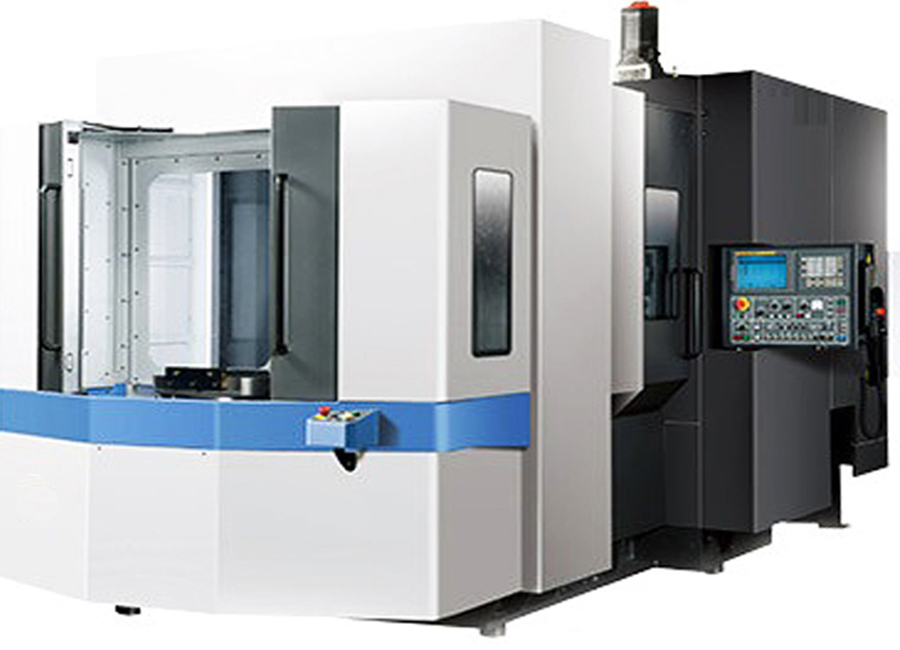

CNC 3-Axis Horizontal Machining Center

Product Characteristic

① HMC500B of CNC Horizontal Machining Center has high spindle speed, strong rigidity and large torque.
② The spindle is equipped with a cooling circulation system.
③ This series of CNC Machine Tools has perfect performance and stable precision.
④ It’s a key equipment for machining box-type parts in machinery, automobiles, ships, textile machinery, printing machinery, agricultural machinery and other industries.
⑤ It can link Vertical Machining Centers , Linear Robot to form Machining Center Flexible Manufacturing Systems to realize the function of automatic production.

Technical Parameters

CNC 3-Axis Horizontal Machining Center HMC500

Technical Parameters	Unit	HMC500B
Travels
X/Y/Z Axis	mm	800/650/800
Work table
Table Number	#	Single
Size (LxW)	mm	500x500
Maximum loading capacity	kg	500
Indexing	°	1^。X360^。
Positioning accuracy	arc-second	10"
Repeated positioning accuracy	arc-second	2"
Feed rate
Rapid feed rate(X/Y/Z)	m/min	32/32/32
Spindle
Speed	rpm	30-3000
Maximum torque	N.m	235
Spindle motor power	kw	15/18.5
Tool change system
Tool magazine capacity	pcs	24
Weight of tool	kg	25
Type of tool shank	#	BT50
Accuracy
Positioning accuracy	mm	±0.005/300 JIS
Repeated positioning accuracy	mm	±0.003/300 JIS
CNC control system
Controller	#	FANUC 0I-MF
Others
Weight	kg	10000

Standard configuration:

※Chain Type Tool Magazine With 32 Tools,

※Taiwan BT50 Spindle

※Taiwan HIWIN Ball screw And Linear Guideway

※Taiwan CNC Rotary Table

※Germany Bearing, Centralized Lubrication,Full Protection

※Electrical Hand Wheel,Alarm Light,Rs232 Interface

※Screw Type Chip Conveyor With Chip Flush
