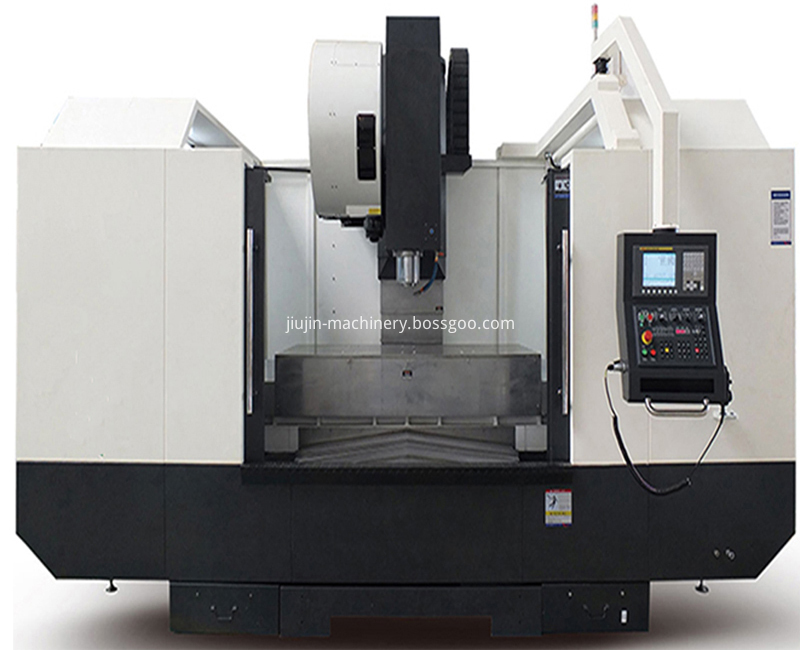

CNC Vertical Machining Centers VMC1890B
Product Performance
① The X、Y axis adopts Taiwan HIWIN ball type linear guideway and Z-axis adopts box way to ensure the precision and rigidity of the machine tool. It is mainly suitable for efficient and powerful cutting of forged steel parts in the
railway industry.
② UntilizesTaiwan high speed and high precision 8000-10000rpm spindle.
③The CNC Machine Tools can be serialized and customized according to the market demand through modular design. The good performance and price ratio is the best choice for customers at home and abroad.
④The designs of Vertical Machining Center meet ISO international standards, and all parts, component and various instruments are measured by the international system of units (SI) standards.
⑤ It can link Horizontal Machining Centers, Rotation Type Stock Bin, Gripper And Claw to form Flexible Manufacturing Systems to realize the function of automatic production.
Technical Parameters
|
Technical Parameters |
Unit |
VMC1890B |
|
Travels |
|
|
|
X/Y/Z Axis |
mm |
1800/900/800 |
|
Distance from spindle nose to table |
mm |
160-900 |
|
Distance from spindle center to the column guideway |
mm |
950 |
|
Work table |
|
|
|
Size (LxW) |
mm |
2000x900 |
|
T-Slot (width x slot number x spacing) |
mm |
12x5x165 |
|
Maximum loading capacity |
kg |
1600 |
|
Spindle |
|
|
|
Speed |
rpm |
6000 |
|
Taper |
# |
BT50 |
|
Spindle motor power |
kw |
22 |
|
Feed rate |
|
|
|
Rapid feed rate(X/Y/Z) |
m/min |
15/15/12 |
|
Cutting feed rate(X/Y/Z) |
mm/min |
1-5000 |
|
Auto tool change system |
|
|
|
Tool magazine capacity |
pcs |
24 |
|
Maximum tool diameter |
mm |
112 |
|
Maximum tool diameter (adjacent empty) |
mm |
200 |
|
Maximum tool weight |
kg |
18 |
|
Time of tool change (Tool to Tool) |
sec |
3 |
|
Accuracy |
|
|
|
Positioning accuracy |
mm |
0.01 |
|
Repeated positioning accuracy |
mm |
0.0075 |
|
CNC control system |
|
|
|
Controller |
# |
FANUC |
|
Others |
|
|
|
Guide rail type |
# |
Linear guide rail |
|
Overall dimension (LxWxH) |
mm |
5100x3800x3200 |
|
Weight |
kg |
15000 |
Standard configuration:
※Taiwan spindle
※Taiwan round disc type tool magazine with 24 tools capacity,
※Taiwan Ball Screws,
※3 Axes Linear Guide Way,
※Spindle Blowing Chip Removal System,
※Auto Centralized Lubrication System,
※Stainless Steel Inside Protection And Full Outer Protection,
※Rigid Tapping,
※Safety Door Lock
※Two Water Cooling, One Air Cooling
※Electrical Hand Wheel,
※Working Lamp,
※Alarm Light
Optional accessory:
Please kindly note that optional accessory will be charged separately.
*4 axis(Taiwan) 250mm
