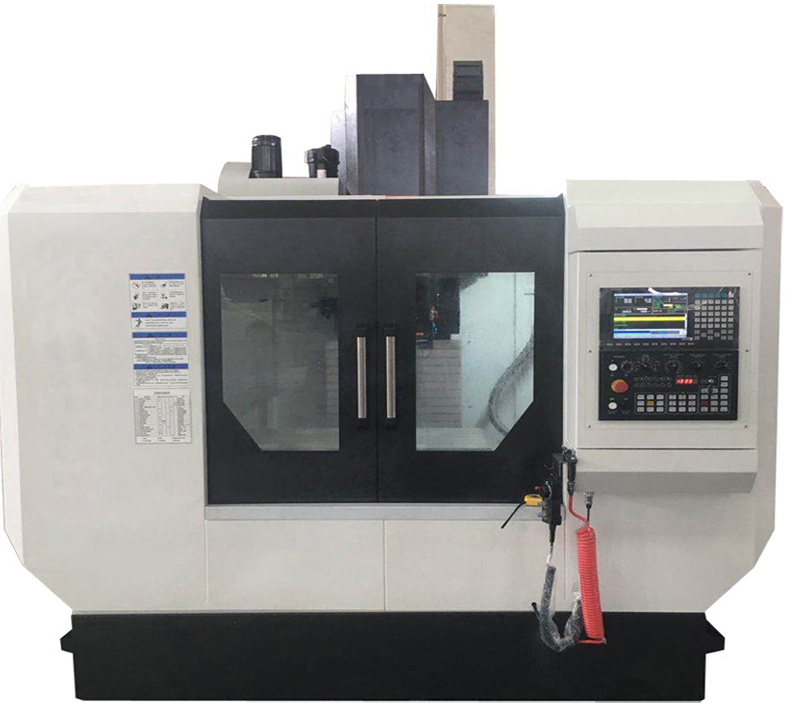

CNC 3 Axis Vertical Machining Center
Product Characteristics
1.The series of Vertical Machining Centers can be used to machine a wide range of materials, including metal, plastic, and composite materials.
2.X, Y, Z three-axis roller linear guides to ensure the machining rigidity andrunning accuracy of Vertical Machining Centers.
3.The CNC Machine Tools utilize Taiwan high- speed, high- precision spindle is 10000rpm.
4.Taiwan famous brand arm type tool magazine with a capacity of 24 tools are used on it.
5.Vertical Machining Centersoften more cost-effective than horizontal machining centers because they require less floor space and are easier to set up and operate.
6.VMCs have a vertical spindle orientation, which makes it easier to load and unload parts, especially for smaller parts that require more frequent loading and unloading.
7.It can be equipped with Cartesian Axis Robot and Stock Bin Silo to realize the function of automatic production.
Technical Parameters
|
Technical Parameters |
Unit |
VMC855B |
|
Travels |
|
|
|
X/Y/Z Axis |
mm |
800/550/550 |
|
Distance from spindle nose to table |
mm |
150-700 |
|
Distance from spindle center to the column guideway |
mm |
610 |
|
Work table |
|
|
|
Size (LxW) |
mm |
1000x550 |
|
T-Slot (width x slot number x spacing) |
mm |
18x5x90 |
|
Maximum loading capacity |
kg |
500 |
|
Spindle |
|
|
|
Speed |
rpm |
40-6000 |
|
Taper |
# |
BT40 |
|
Spindle motor power |
kw |
11 |
|
Spindle output torque(Max) |
Nm |
35.8/70 |
|
Feed rate |
|
|
|
Rapid feed rate(X/Y/Z) |
m/min |
30/30/24 |
|
Cutting feed rate(X/Y/Z) |
mm/min |
1-10000 |
|
Ball Screw |
|
|
|
Ball screw of X axis (Dia×Pitch) |
mm |
φ40 x P16 |
|
Ball screw of Y axis (Dia×Pitch) |
mm |
φ40 x P16 |
|
Ball screw of Z axis (Dia×Pitch) |
mm |
φ40 x P16 |
|
Auto tool change system |
|
|
|
Tool magazine capacity |
pcs |
24 |
|
Maximum weight of tool |
kg |
8 |
|
Maximum tool diameter (full/empty) |
mm |
78/120 |
|
Maximum tool length |
mm |
300 |
|
Time of tool change |
sec |
1.55/5 |
|
Accuracy |
|
|
|
Positioning accuracy |
mm |
±0.005/300 JIS |
|
Repeated positioning accuracy |
mm |
±0.003/300 JIS |
|
CNC control system |
|
|
|
Controller |
# |
KND or FANUC |
|
Others |
|
|
|
Axis |
Axes |
3 |
|
Linkage |
Axes |
3 (linear axis) |
|
Power supply |
# |
3ph, 380V±10%,50Hz |
|
Air pressure |
Mpa |
0.5-0.7Mpa |
|
Overall dimension (LxWxH) |
mm |
2550x2280x2800 |
|
Weight |
kg |
5000 |
Standard configuration:
※Taiwan spindle
※Taiwan round disc type tool magazine with 24 tools capacity,
※Taiwan Ball Screws,
※3 Axes Linear Guide Way,
※Spindle Blowing Chip Removal System,
※Auto Centralized Lubrication System,
※Stainless Steel Inside Protection And Full Outer Protection,
※Rigid Tapping,
※Safety Door Lock
※Two Water Cooling, One Air Cooling
※Electrical Hand Wheel,
※Working Lamp,
※Alarm Light
Optional accessory:
Please kindly note that optional accessory will be charged separately.
*4 axis(Taiwan) 250mm
*screw type chip conveyor
*chain type chip conveyor
