CNC Electron Discharge Machine

3 year ago

18 0 

Qingdao Jiujin Machinery Co., Ltd

3 year

Product details

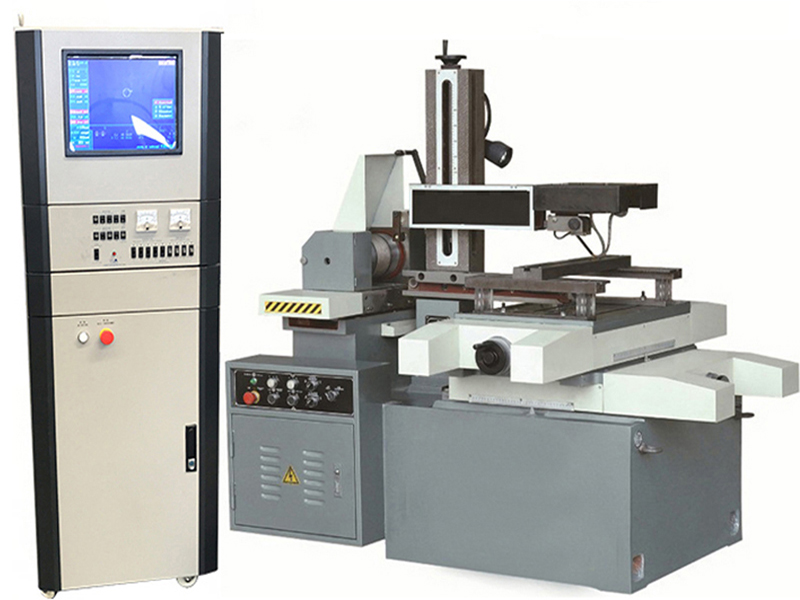

One Pass Wire Cut EDM Machine

Product Characteristic

①Guide Wheel: V shaped are waterproof and easy to setup wire.

②Stepper motor: Axes are driven by stepper motors.

③Wire Spool: Wire Spool with Chrome plating reduces run out on wire and improves stability.

④Linear guide rails: And utilize Taiwan brand linear guide rails to prevent the loosening of one-sided wire and prevent the wire broken.

⑤Z axis motor: Saving money by utilize Electric adjustment in Z axis.

Technical Parameters

One Pass Wire Cut EDM Machine DK7732

Technical Parameters	Unit	DK7732
Travel of X and Y Axes	mm	320x400
Maximum cutting thickness	mm	400
Maximum Work piece weight	kg	300
Wire diameter	mm	Standard 0.18 mm; Optional: 0.12-0.2 mm.
Cutting Taper	°/mm	6°/ 80 mm
Work Table Size (LxWxH)	mm	360x610x400
Surface Roughness /Ra	u.m	Ra≤2.5
Numerical Control System	#	X8, HF SYSTEM or HL SYSTEM
Display	#	Latest
Serial Interfaces (V.24)	#	RS 232C, Ethernet port, USB
Remote control	#	Including
3-D Graphical Preview	#	Including
Total machine power	KV	1.8
Precision	mm	0.015
Maximum cutting speed	mm²/min	150
Wire speed	m/s	11
Minimum feed increment	mm	0.001
Pulse width adjustable range	us	15-150
Maximum power consumption	KVA	≤2
Machine size (LxWxH)	mm	1200x1170x1400
Machine weight	kg	1150
Machine control cabinet size (LxWxH)	mm	1200x800x800
Machine control cabinet weight	kg	150

Standard configuration:

※AC Power Supply:220 or 380V, 50 Hz, 3 phase

※Molybdenum Wire:200 M

※Remote Control:1 Piece

※Wire Tensioner:1 Piece

※Coolant Filter:1 Piece

※Coolant:1 Piece

※Work Lamp:Including

※Work Piece Fixture:1 Set
