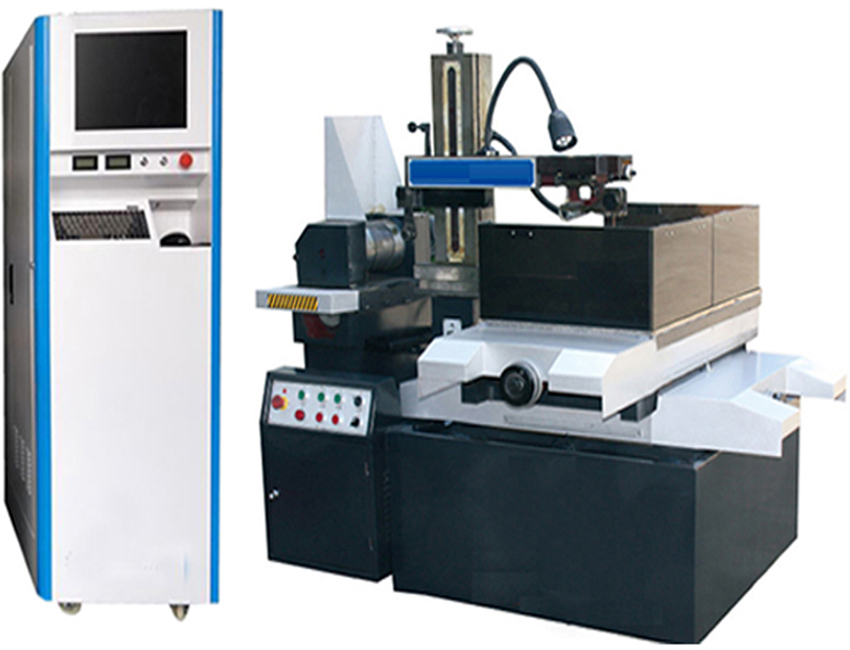

CNC Taper Wire-Cut EDM Cutting Machine
3 year ago
Taper Wire-Cut Electrical Discharge Machine
Product Characteristic
①DK7740B of CNC Wire Cut EDM Machine saves a large number of processing files: Wire Cut EDM Machine users can not only save a large number of WEDM processing files on the hard disk, but also on other physical storage devices, such as U disks and CDs. The number of files that can be saved is only subject to storage. The capacity of the CNC Machine Toolsis limited, that is, in theory, a 1GU disk can store 50,000 WEDM files.Multi-function control: one computer can control up to 6-8 machines at the same time to cut different work pieces at the same time.
②One Pass Wire Cut EDM Machine has a good chip removal function, stable cutting, high efficiency, not easy to short circuit and wire breakage.
③This series of One Cut Wire Cut EDM Machine is widely used in aerospace, automotive, molds, and other industries
Technical Parameters
|
Technical Parameters |
Unit |
DK7740B |
|
Travel of X and Y Axes |
mm |
400x500 |
|
Maximum cutting thickness |
mm |
460 |
|
Maximum Work piece weight |
kg |
450 |
|
Wire diameter |
mm |
Standard 0.18 mm; Optional: 0.12-0.2 mm. |
|
Cutting Taper |
°/mm |
6°/ 80 mm |
|
Work Table Size (LxWxH) |
mm |
460x690x460 |
|
Surface Roughness /Ra |
u.m |
Ra≤2.5 |
|
Numerical Control System |
# |
X8, HF SYSTEM or HL SYSTEM |
|
Display |
# |
Latest |
|
Serial Interfaces (V.24) |
# |
RS 232C, Ethernet port, USB |
|
Remote control |
# |
Including |
|
3-D Graphical Preview |
# |
Including |
|
Total machine power |
KV |
1.8 |
|
Precision |
mm |
0.015 |
|
Maximum cutting speed |
mm2/min |
150 |
|
Wire speed |
m/s |
11 |
|
Minimum feed increment |
mm |
0.001 |
|
Pulse width adjustable range |
us |
15-150 |
|
Maximum power consumption |
KVA |
≤2 |
|
Machine size (LxWxH) |
mm |
1600x1240x1400 |
|
Machine weight |
kg |
1250 |
|
Machine control cabinet size (LxWxH) |
mm |
1200x800x800 |
|
Machine control cabinet weight |
kg |
150 |
Standard configuration:
※AC Power Supply:220 or 380V, 50 Hz, 3 phase
※Molybdenum Wire:200 M
※Remote Control:1 Piece
※Wire Tensioner:1 Piece
※Coolant Filter:1 Piece
※Coolant:1 Piece
※Work Lamp:Including
※Work Piece Fixture:1 Set
