CNC Wire EDM Machine
3 year ago

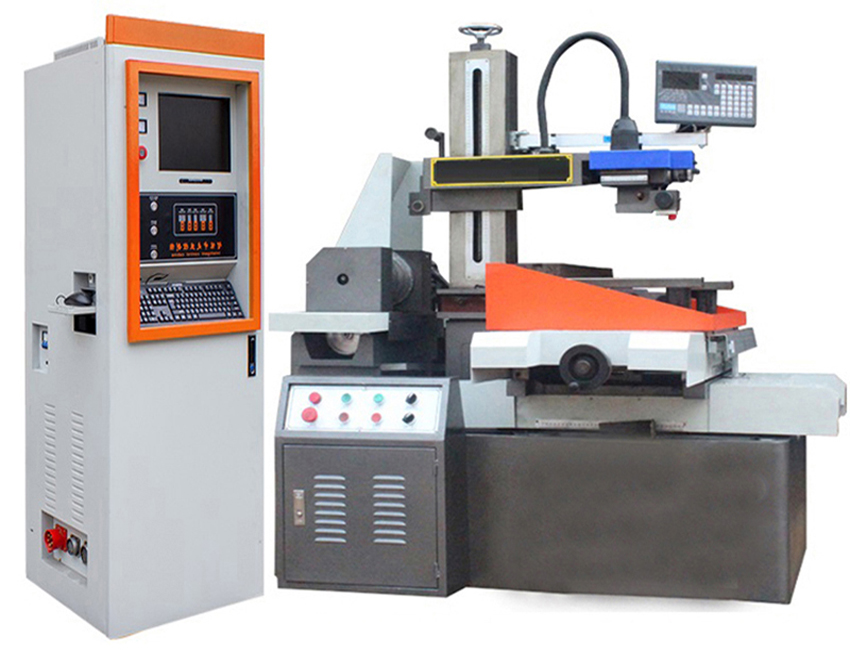

CNC Wire Metal Cutting EDM Machine
Product Characteristic
①DK7735B of
CNC Wire Cut EDM Machine use new type of high-power field effect tube as
the power tube, strong and powerful, high cutting efficiency, high
cutting smoothness, and Wire Cut EDM has a good comprehensive processing
performance.
②CNC Wire Cut EDM Machine is one kind of CNC Machine Tools that feature with taper cutting: It not only
supports up and down special-shaped and large taper processing, but
also has real-time compensation for the offset of the guide wheel
tangent point.
③The wire cut EDM machine consists of a worktable, where the material to be cut is placed, and a wire guide system that controls the movement of the wire. The wire guide system is connected to a computer that controls the movement of the wire and the intensity of the electrical discharge. In addition, the cutting method of variable taper cutting can be realized on the series of CNC Machine Tools.
④This series of Wire-Cut EDM Machine is widely used in aerospace, automotive, molds, and other industries.
Technical Parameters
|
Technical Parameters |
Unit |
DK7735B |
|
Travel of X and Y Axes |
mm |
350x450 |
|
Maximum cutting thickness |
mm |
460 |
|
Maximum Work piece weight |
kg |
300 |
|
Wire diameter |
mm |
Standard 0.18 mm; Optional: 0.12-0.2 mm. |
|
Cutting Taper |
°/mm |
6°/ 80 mm |
|
Work Table Size (LxWxH) |
mm |
400x650x460 |
|
Surface Roughness /Ra |
u.m |
Ra≤2.5 |
|
Numerical Control System |
# |
X8, HF SYSTEM or HL SYSTEM |
|
Display |
# |
Latest |
|
Serial Interfaces (V.24) |
# |
RS 232C, Ethernet port, USB |
|
Remote control |
# |
Including |
|
3-D Graphical Preview |
# |
Including |
|
Total machine power |
KV |
1.8 |
|
Precision |
mm |
0.015 |
|
Maximum cutting speed |
mm2/min |
150 |
|
Wire speed |
m/s |
11 |
|
Minimum feed increment |
mm |
0.001 |
|
Pulse width adjustable range |
us |
15-150 |
|
Maximum power consumption |
KVA |
≤2 |
|
Machine size (LxWxH) |
mm |
1200x1170x1400 |
|
Machine weight |
kg |
1440 |
|
Machine control cabinet size (LxWxH) |
mm |
1200x800x800 |
|
Machine control cabinet weight |
kg |
150 |
Standard configuration:
※AC Power Supply:220 or 380V, 50 Hz, 3 phase
※Molybdenum Wire:200 M
※Remote Control:1 Piece
※Wire Tensioner:1 Piece
※Coolant Filter:1 Piece
※Coolant:1 Piece
※Work Lamp:Including
※Work Piece Fixture:1 Set
