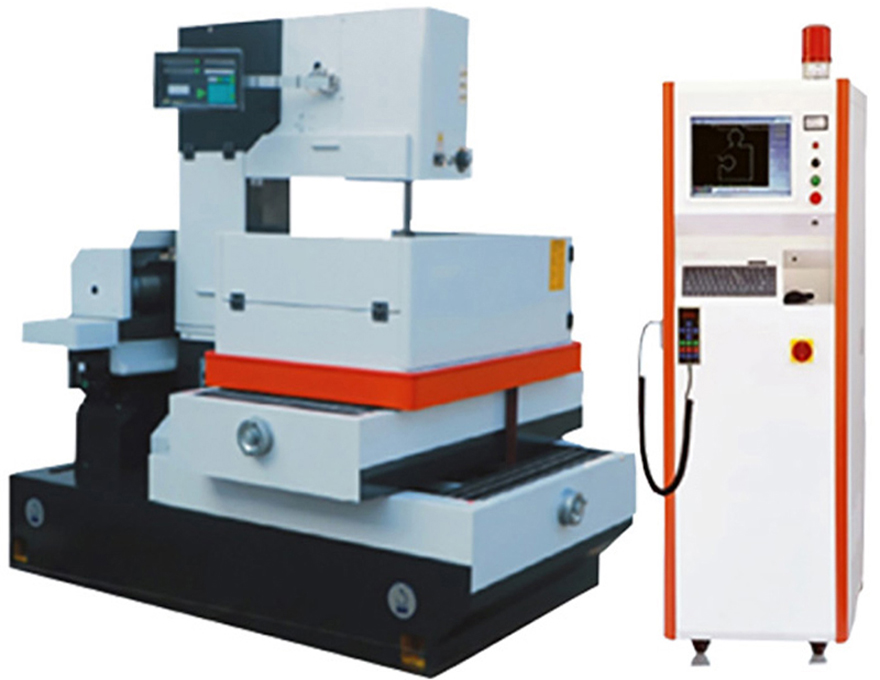

Multi Cut Wire Cutting EDM Machine
Product Characteristic
① ZBJ400 of Multi Pass Wire Cut EDM Machine is a specialized tool used in the manufacturing industry to cut complex shapes and designs in metal and other conductive materials. The machine uses a thin, electrically charged wire that is guided by computer-controlled movements to cut through the material precisely.
②It has Unlimited Code Segment: The code segment is only limited by the computer's physical memory. Under normal circumstances, the system can achieve at least 100,000 processing codes.
③ Wire-Cut EDM Machine adopts electrostatic sprayed surface chassis, beautiful appearance and easy to clean. In addition, the cutting method of variable taper cutting can be realized on the series of CNC Machine Tools.
④Multi Cut Wire Cut EDM Machine has optional cutting section: you can choose any section to start processing, and at the same time to choose any section to end.
⑤ This series of CNC Machine Tools are widely used in aerospace, automotive, molds, and other industries.
Technical Parameters
|
Technical Parameters |
Unit |
ZBJ400 |
|
Travel of X and Y Axes |
mm |
500x400 |
|
Maximum cutting thickness |
mm |
300 |
|
Wire diameter |
mm |
Standard 0.18 mm; Optional: 0.12-0.2 mm. |
|
Cutting Taper |
°/mm |
6°/ 80 mm |
|
Work Table Size (LxWxH) |
mm |
850x540x300 |
|
Maximum Work piece weight |
kg |
450 |
|
Surface Roughness /Ra |
u.m |
Ra≤1.2 |
|
Numerical Control System |
# |
X8, HF SYSTEM or HL SYSTEM |
|
Display |
# |
Latest |
|
Serial Interfaces (V.24) |
# |
RS 232C, Ethernet port, USB |
|
Remote control |
# |
Including |
|
3-D Graphical Preview |
# |
Including |
|
Total machine power |
KV |
1.8 |
|
Precision |
mm |
0.015 |
|
Maximum cutting speed |
mm2/min |
≥120 |
|
Wire speed |
m/s |
11.5 |
|
Minimum feed increment |
mm |
0.001 |
|
Pulse width adjustable range |
us |
15-150 |
|
Maximum power consumption |
KVA |
≤2 |
|
Machine size (LxWxH) |
mm |
1960x1620x2160 |
|
Machine weight |
kg |
1800 |
|
Machine control cabinet size (LxWxH) |
mm |
1200x800x800 |
|
Machine control cabinet weight |
kg |
150 |
Standard configuration:
※AC Power Supply:220 or 380V, 50 Hz, 3 phase
※Molybdenum Wire:200 M
※Remote Control:1 Piece
※Wire Tensioner:1 Piece
※Coolant Filter:1 Piece
※Coolant:1 Piece
※Work Lamp:Including
※Work Piece Fixture:1 Set
