Middle Speed Multi Pass Wire Cut EDM Machine
3 year ago

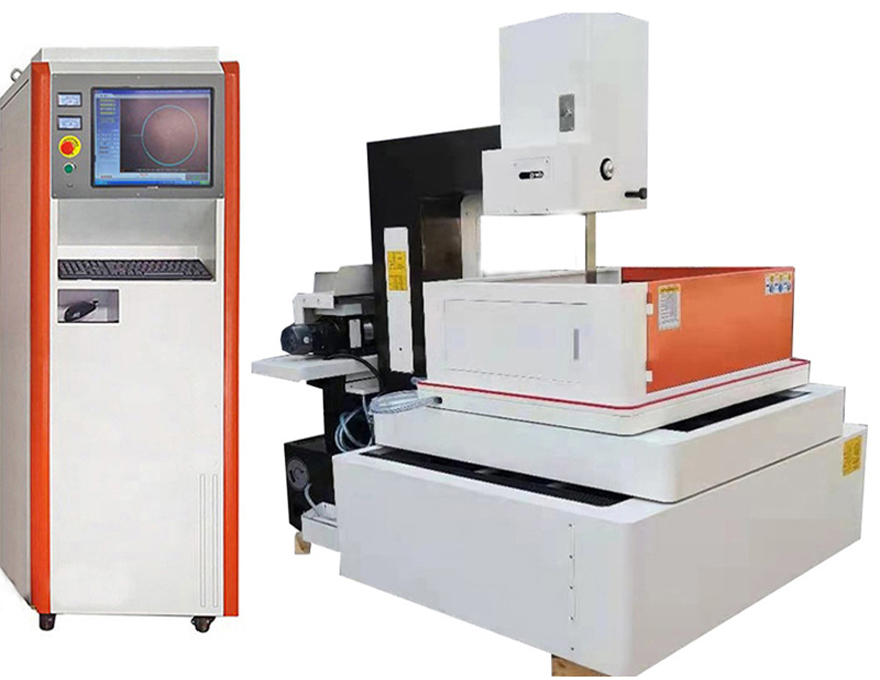

Multi-Pass Wire EDM Cutting Machine
Product Characteristic
① Multi Pass Wire Cut EDM Machine (ZBJ630) has Code Compatibility: It can accurately identify 3B/G codes generated by mainstream WEDM programming software, such as CAXA, KS and AUTOP.
② Multi-function control is one of function of Wire-Cut EDM Machine: one computer can control up to 6-8 machines at the same time to cut different work pieces at the same time.
③ Multi Cut Wire Cut EDM Machine has clear angle function that can effectively eliminate the collapse angle.
④ In addition, the cutting method of variable taper cutting can be realized on the series of CNC Machine Tools.
⑤ This series of Wire Cut EDM Machine are widely used in aerospace, automotive, molds, and other industries to realize machining different workpieces.
Technical Parameters
|
Technical Parameters |
Unit |
ZBJ630 |
|
Travel of X and Y Axes |
mm |
800x630 |
|
Maximum cutting thickness |
mm |
300 |
|
Wire diameter |
mm |
Standard 0.18 mm; Optional: 0.12-0.2 mm. |
|
Cutting Taper |
°/mm |
6°/ 80 mm |
|
Work Table Size (LxWxH) |
mm |
1130x9500x300 |
|
Maximum Work piece weight |
kg |
750 |
|
Surface Roughness /Ra |
u.m |
Ra≤1.2 |
|
Numerical Control System |
# |
X8, HF SYSTEM or HL SYSTEM |
|
Display |
# |
Latest |
|
Serial Interfaces (V.24) |
# |
RS 232C, Ethernet port, USB |
|
Remote control |
# |
Including |
|
3-D Graphical Preview |
# |
Including |
|
Total machine power |
KV |
1.8 |
|
Precision |
mm |
0.015 |
|
Maximum cutting speed |
mm2/min |
≥120 |
|
Wire speed |
m/s |
11.5 |
|
Minimum feed increment |
mm |
0.001 |
|
Pulse width adjustable range |
us |
15-150 |
|
Maximum power consumption |
KVA |
≤2 |
|
Machine size (LxWxH) |
mm |
2200x1650x1910 |
|
Machine weight |
kg |
3000 |
|
Machine control cabinet size (LxWxH) |
mm |
1200x800x800 |
|
Machine control cabinet weight |
kg |
150 |
Standard configuration:
※AC Power Supply:220 or 380V, 50 Hz, 3 phase
※Molybdenum Wire:200 M
※Remote Control:1 Piece
※Wire Tensioner:1 Piece
※Coolant Filter:1 Piece
※Coolant:1 Piece
※Work Lamp:Including
※Work Piece Fixture:1 Set
