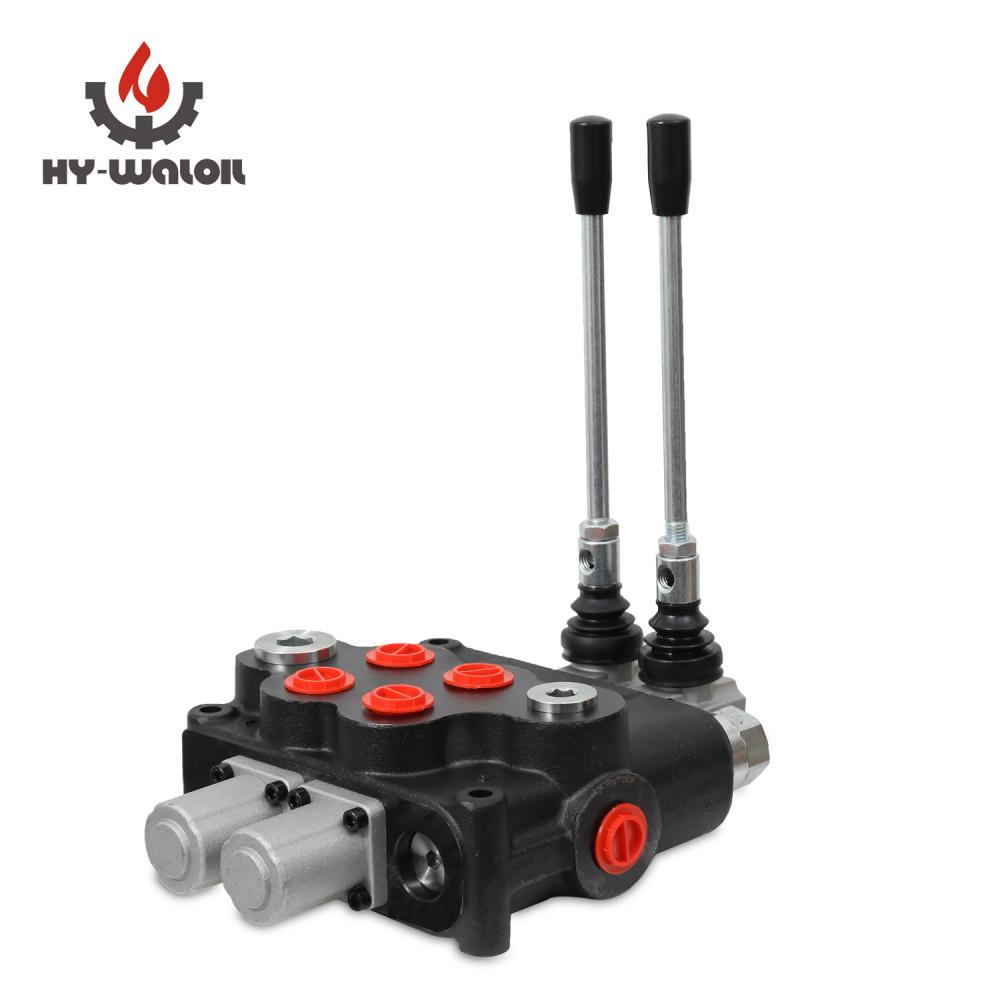

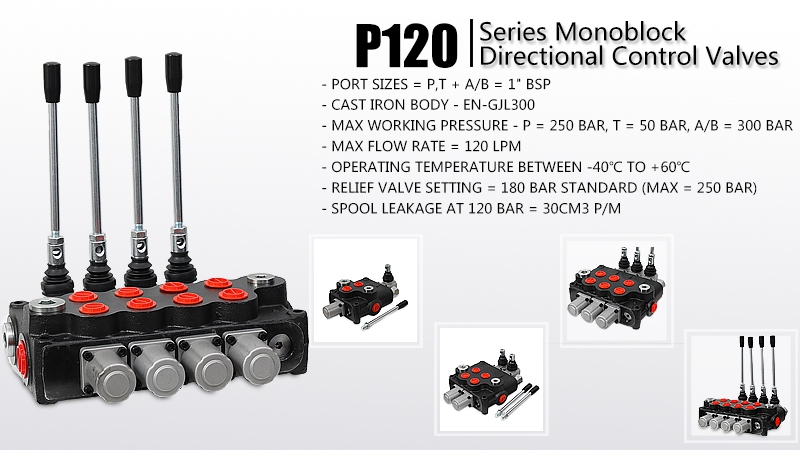

1P120 Series Monoblock Control Valves
2 year ago
Drilling Machine P120 Monoblock Directional Control Valve Description:
Hydraulic directional control valve 32gpm 1P120, double acting cylinder spool
* Flow Hydraulic Directional Valve Max operating pressure P=3600psi (250bar); T=150psi (10bar); A , B = 4300psi (300bar)
* Open center system (pump-to-tank flow) * Nominal flow 32gpm ( 120l/min )
* Monoblock Valve Adjustable relief valve * A, B, P, T ports 1″BSPP (British Standard Parallel Pipe, not NPT)
* All P120/ Sd18 Series Monoblock Control Valve spools are standard double acting with spring return in neutral position
* Specify if you need additional options as follows (by extra costs): special spools or spool controls (table 5 and 6) pneumatic or cable control high pressure carry over/ power beyond, closed center plug adapters BSP/NPT or BSP/JIC etc
Mineral based hydraulic oil
Nominal flow rate
80 L/min
Max pressure
P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type
Standard open center spool (A spool), different spool options
Number of spools

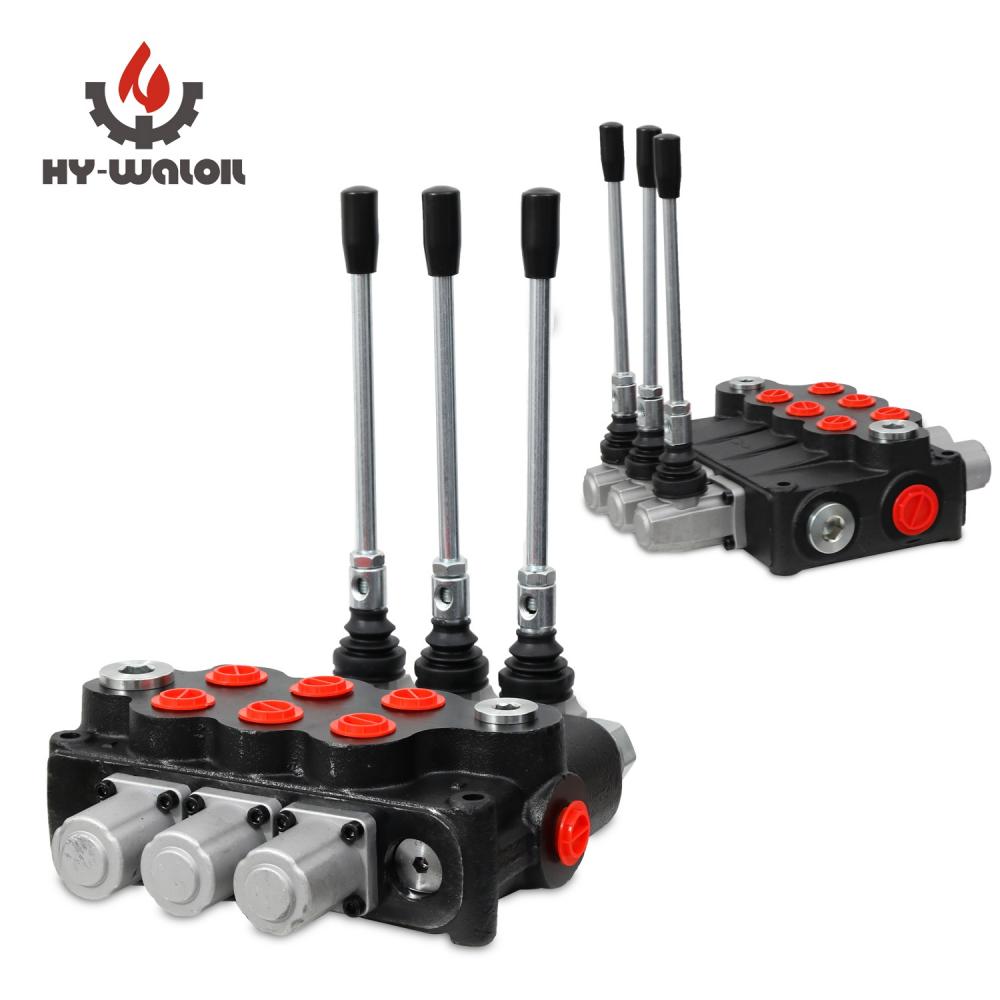

From 1 to 6
Leakage
6 cm3/min at 100 bar (From A,B to T)
Fluid temperature range
-10 ° C to + 80 ° C
Working fluid
Viscosity
10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Benefits
Precise, Perfect, Powerful, Integrally casted by forging, which has good sealing performance and does not leak oil, long lasting.
Application
forklifts, sanitation vehicles, small loaders, light-duty machinery and other construction machinery.
