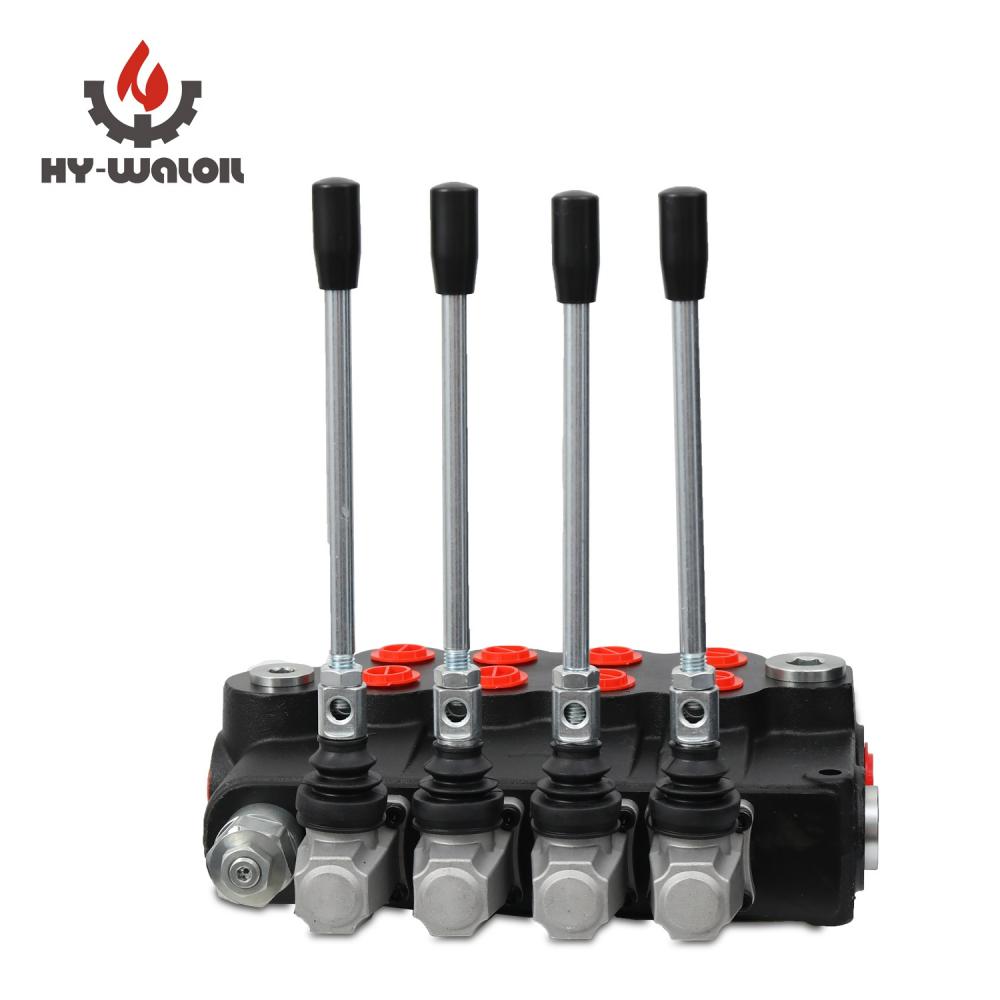

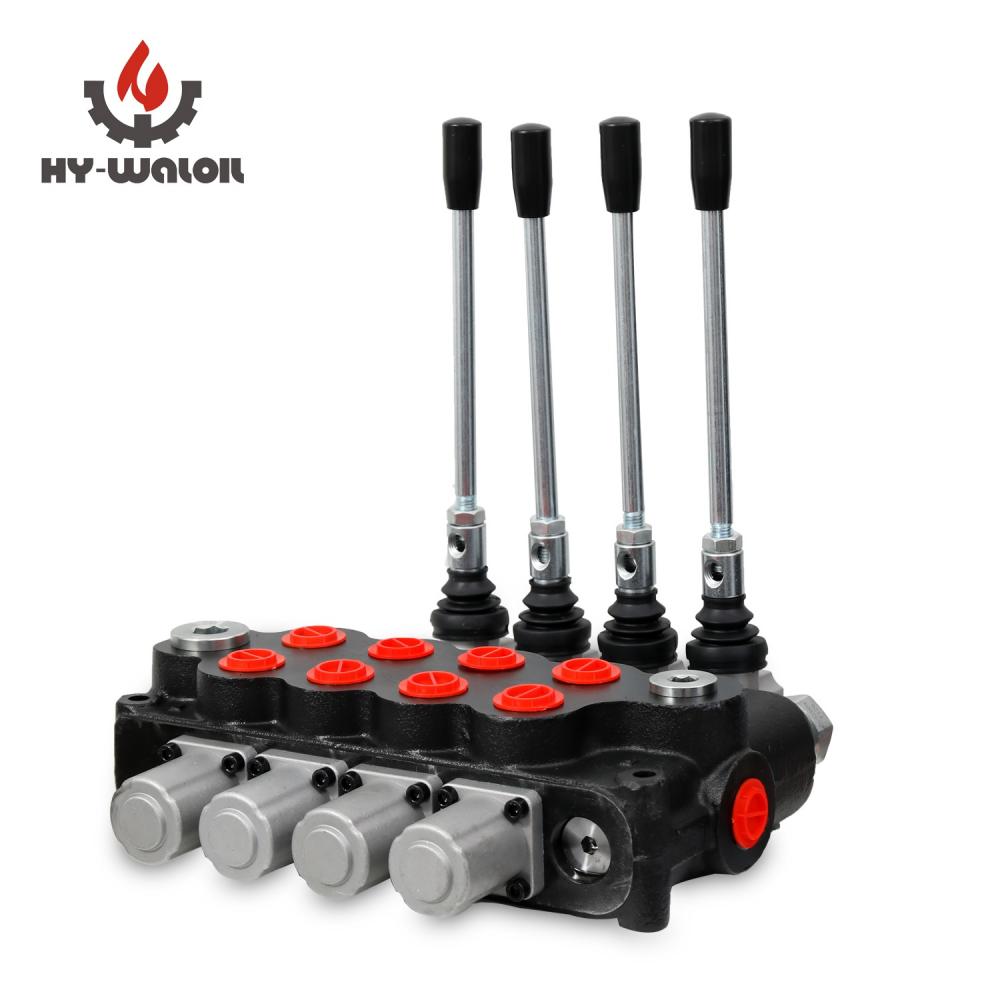

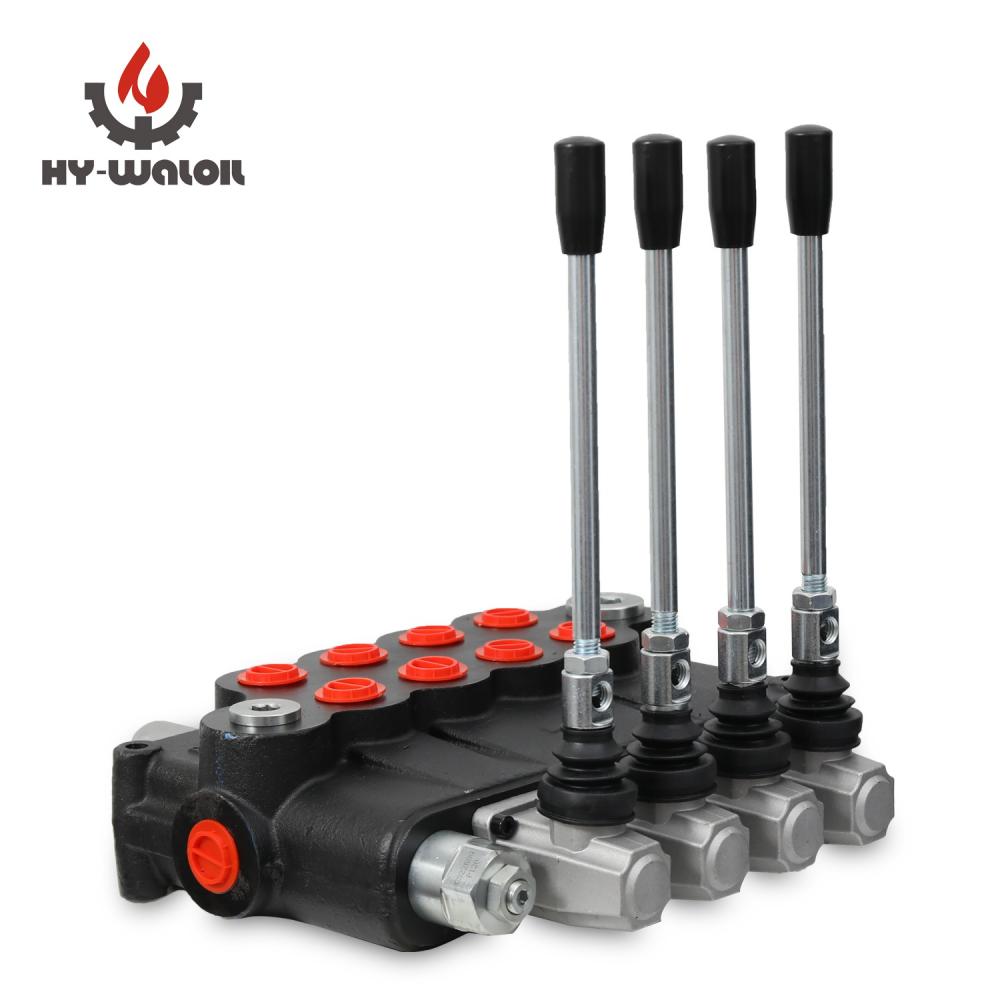

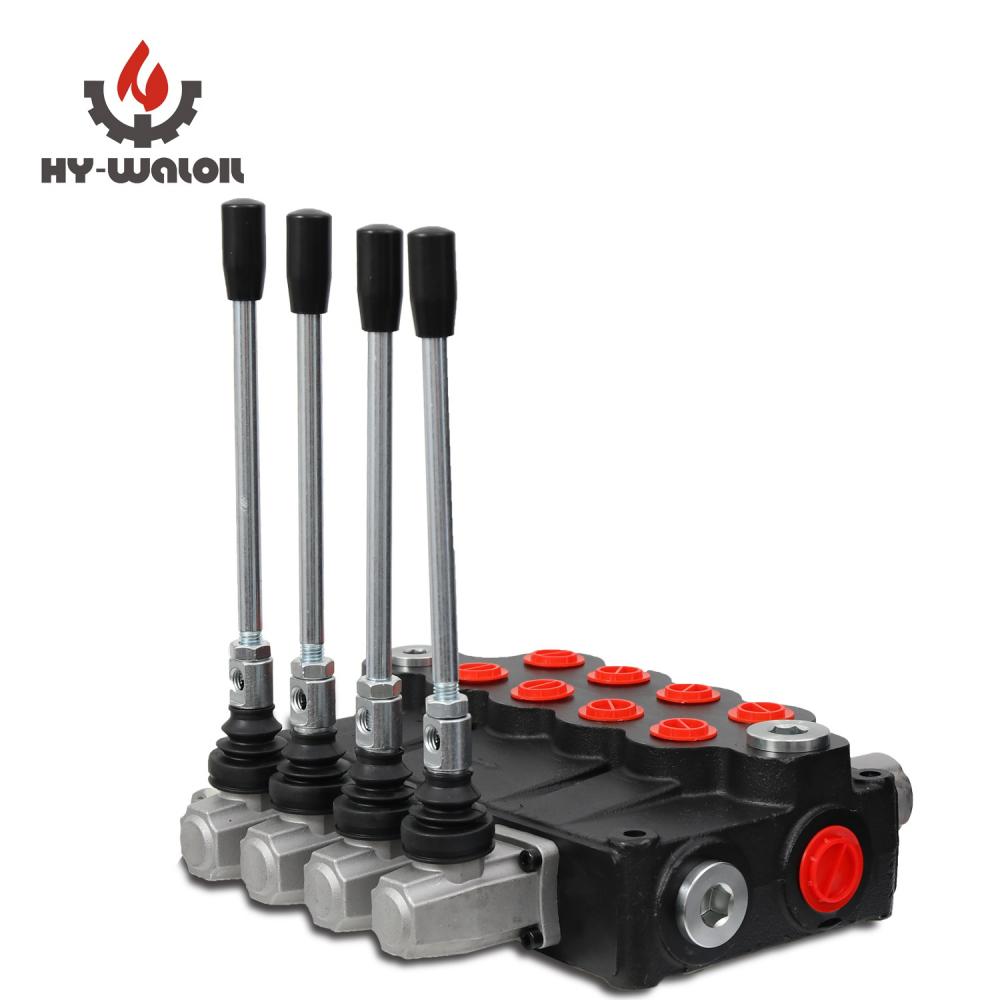

4P120 Hydraulic Hand Control Valve
2 year ago
Monoblock Hydraulic Distributor Directional Valve 4P120 Description:
Hydraulic directional control valve 32gpm 1P120, double acting cylinder spool
* Flow Hydraulic Directional Valve Max operating pressure P=3600psi (250bar); T=150psi (10bar); A , B = 4300psi (300bar)
* Open center system (pump-to-tank flow) * Nominal flow 32gpm ( 120l/min )
* Adjustable relief Monoblock Valve
* A, B, P, T ports 1″BSPP (British Standard Parallel Pipe, not NPT)
* All P120/ Sd18 Series Monoblock Control Valve spools are standard double acting with spring return in neutral position
* Specify if you need additional options as follows (by extra costs): special spools or spool controls (table 5 and 6) pneumatic or cable control high pressure carry over/ power beyond, closed center plug adapters BSP/NPT or BSP/JIC etc
35*34*17cm
Nominal flow rate
120 L/min
Max pressure
P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type
Standard open center spool (A spool), different spool options
Number of spools
From 1 to 4
Leakage
6 cm3/min at 100 bar (From A,B to T)
Product Size
34*34*13cm
Package Size
NW/GW
29.9/30.5kg
Benefits
Precise, Perfect, Powerful, Integrally casted by forging, which has good sealing performance and does not leak oil, long lasting.
Application
forklifts, sanitation vehicles, small loaders, light-duty machinery and other construction machinery.
