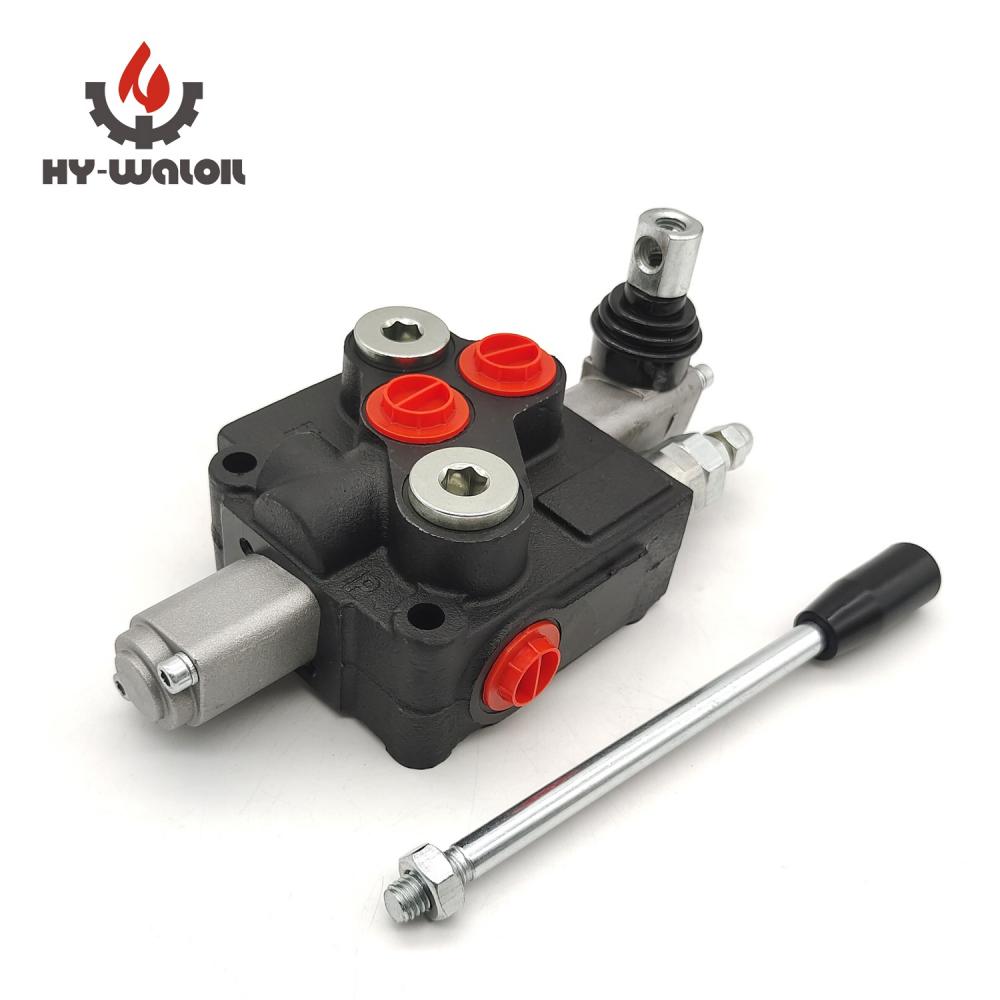

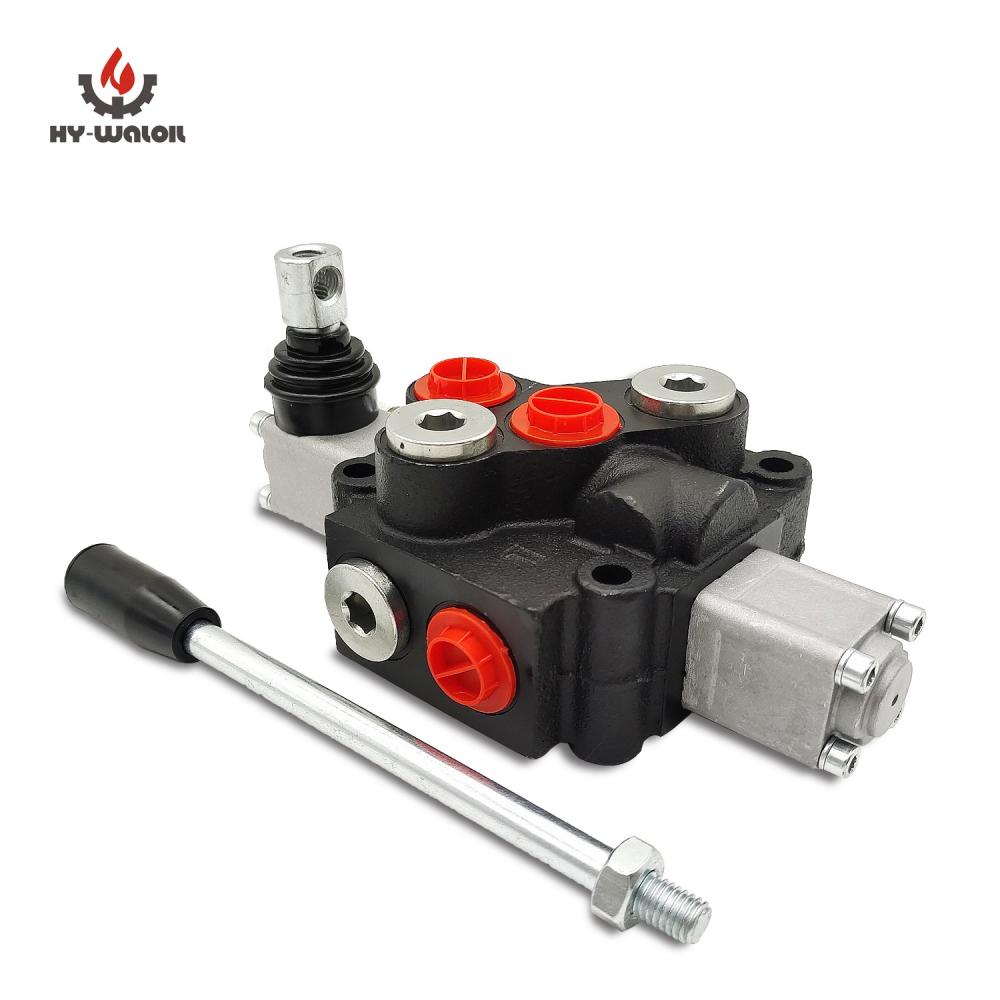

1 DCV40 45L/min Tractor Oil Hydraulic Valve

* DCV40 Manual Operated Directional Control Valve is a medium and high pressure integrated directional valve which designed and developed and it can be set on the valve according to customer requirements relief valve, overload valve, check valve, oil valve and so on.
* The relief valve can adjust the system pressure, the overload valve controls the working pressure of A single oil chamber, the check valve prevents the oil from flowing back, and the reversing valve slide.
* Valve functions are A, O, Y, P, etc.
* This series valve has 12, 20 diameter, positioning method is divided into spring return (T) and steel ball positioning (W), 1-7 connection any combination.

50L/min Tractor 1Spool Hydraulic Directional Control Valve Description:

* Dcv40/ Zt-L12-Ot Hydraulic Control Valve types with 1 to 8 working sections

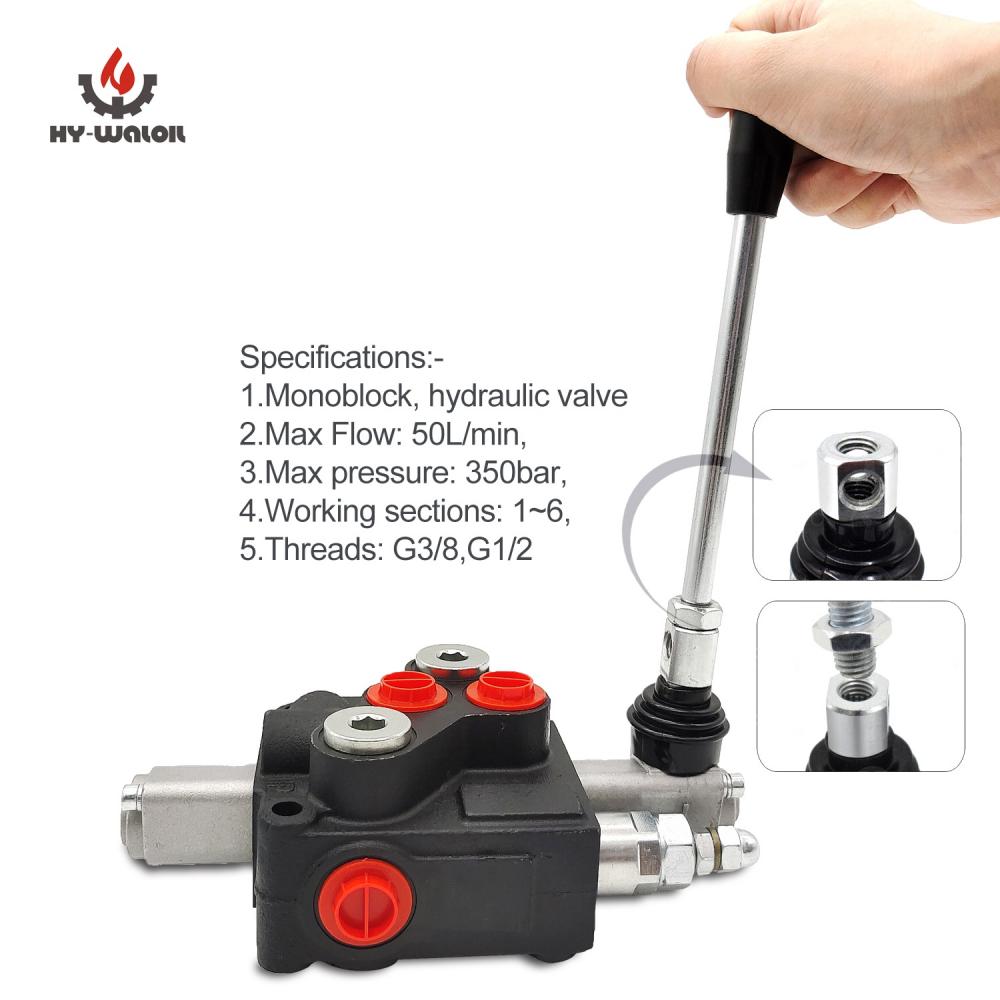

* Nominal pressure 45 l/min, max 50 l/minute with pressure 160bar, 200bar, max pressure up to 315bar

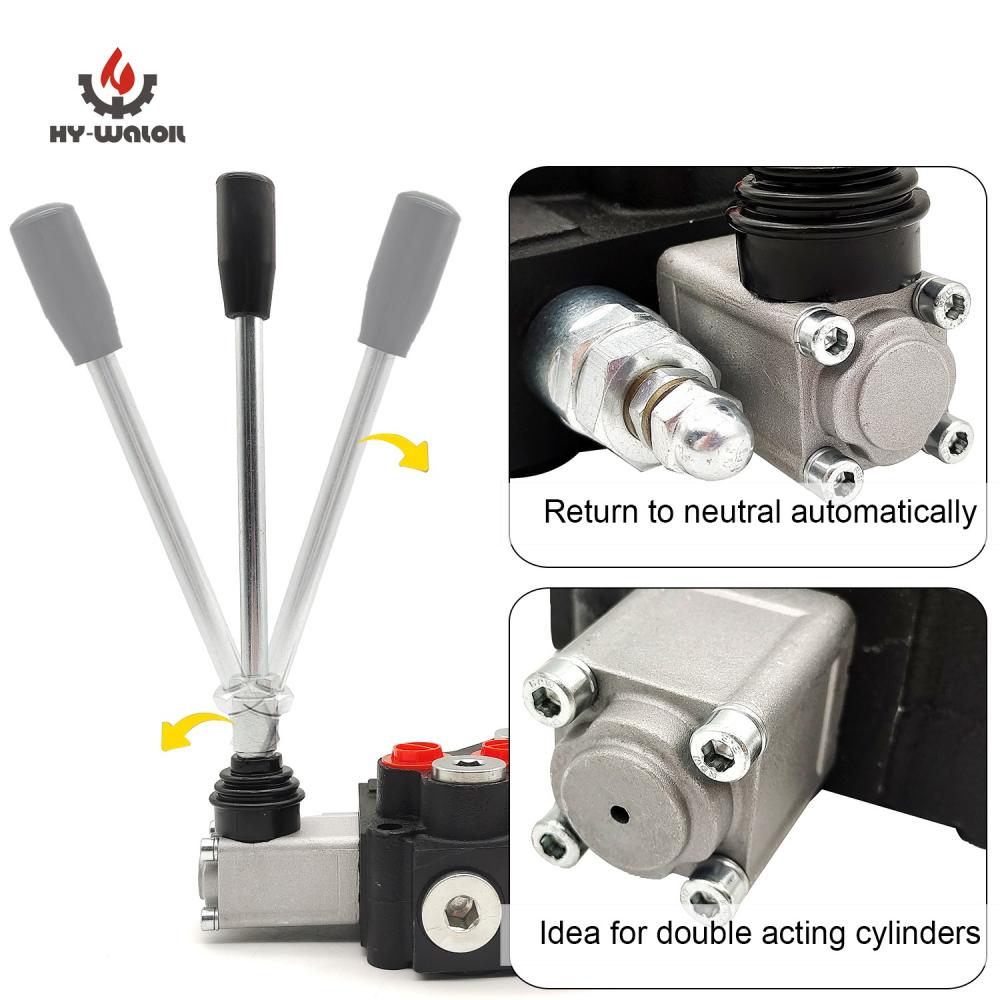

* Spring side control options: T (spring return) and W (detent control);
* Hydraulic Manual Shut Off Valve Joining port: L (screw connection)
* Parallel circuit
* Operated Manual Directional Valve Spool function: O, P. Y, A

* Widely used in forklift, sanitation vehicles, small loaders and other construction machinery hydraulic system.
