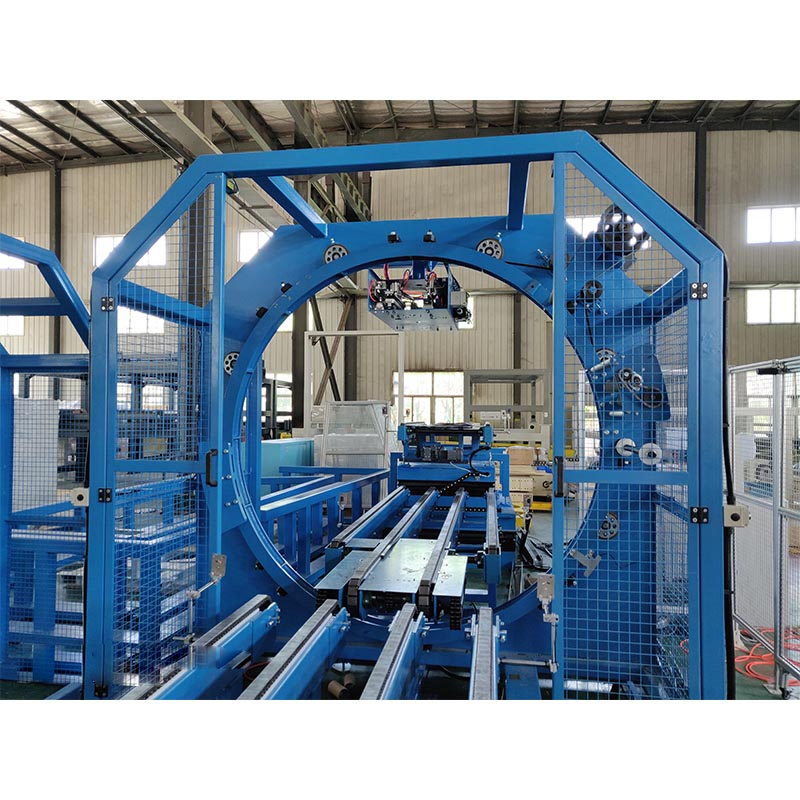

Horizontal Stretch Wrapping Machine Wooden Panel W

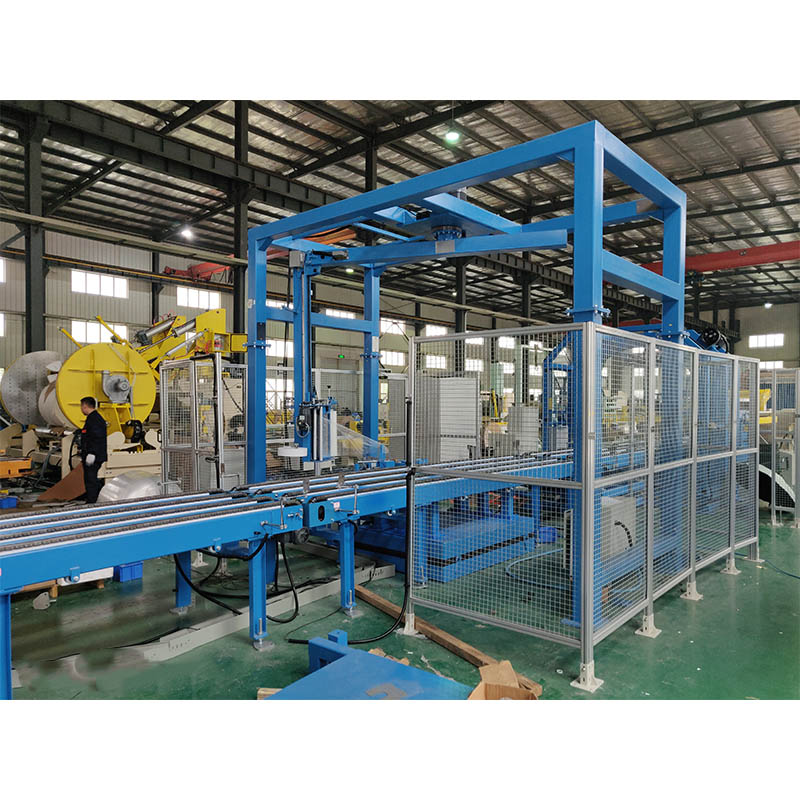

This equipment is a whole pallet of cartons which are arranged by the upstream automatic palletizer and the conveying system (customer-supplied). The conveyor automatically transports the palletized goods to the wrapping position conveyor, automatically stops, and the wrapping machine automatically feeding the film. wrapping, packaging according to the setting procedure, until the wrapping package ends, automatically cutting the film, then the goods are transported to the conveyor station, waiting for the forklift to enter the warehouse, the next packaging cycle begins

Pallet specification

Weight：700-1200kg

Pallet size：800*1200*height mm

Pallet plus products specifications

Size：800*1200*2000mm

Weight：Max. 2000kgs (Or based on customer requirements)

Conveyor specifications

The height of the conveyor：76mm

The Length of conveyor：1500mm+1500mm

Conveying  speed ：18m/ min

Front and behind conveyor models：Roller conveyor line

Packaging speed：60-80 pallets/hour

Motor frequency control with brake.
Reducer : Nord
Power: subject to actual design
Rotary ring drive speed: n=40rpm (frequency control, with brake)
Rotary ring guide direction device

Film carriage parts
Install a height sensor on the film carriage to automatically detect the height of the cargoAC motor drive system
Film carriage AC motor power: 0.37KW
The film carriage stretch ratio is 1:2.5 (250%), and the film feed speed is adjustable.
Film carriage follower mechanism

The feeding film dance arm of the film carriage rotating, and the proximity switch controls the start and stop of the film feed motor to achieve the follow-up of the film feed.

Automatic feeding & cutting film device
After the wrapping is completed, automatically cutting the film and hold the film tail

The automatic cutting & feeding film device with film carriage up and down together,

When the film clamp releases the film head, the cutting & feeding film device automatically blows the film head and wraps it into the pallet to ensure that no film tail is left.

The cut film adopt the heated and blown
After the film is automatically cut, the cutting % feeding device automatically welds the film tail to ensure that no film tail is left.

Pneumatic components: SMC or FESTO
The packaging effect after the film is broken, can meet the standard of 15mm within the shape detection device, and use 350-500mm stretch film.
