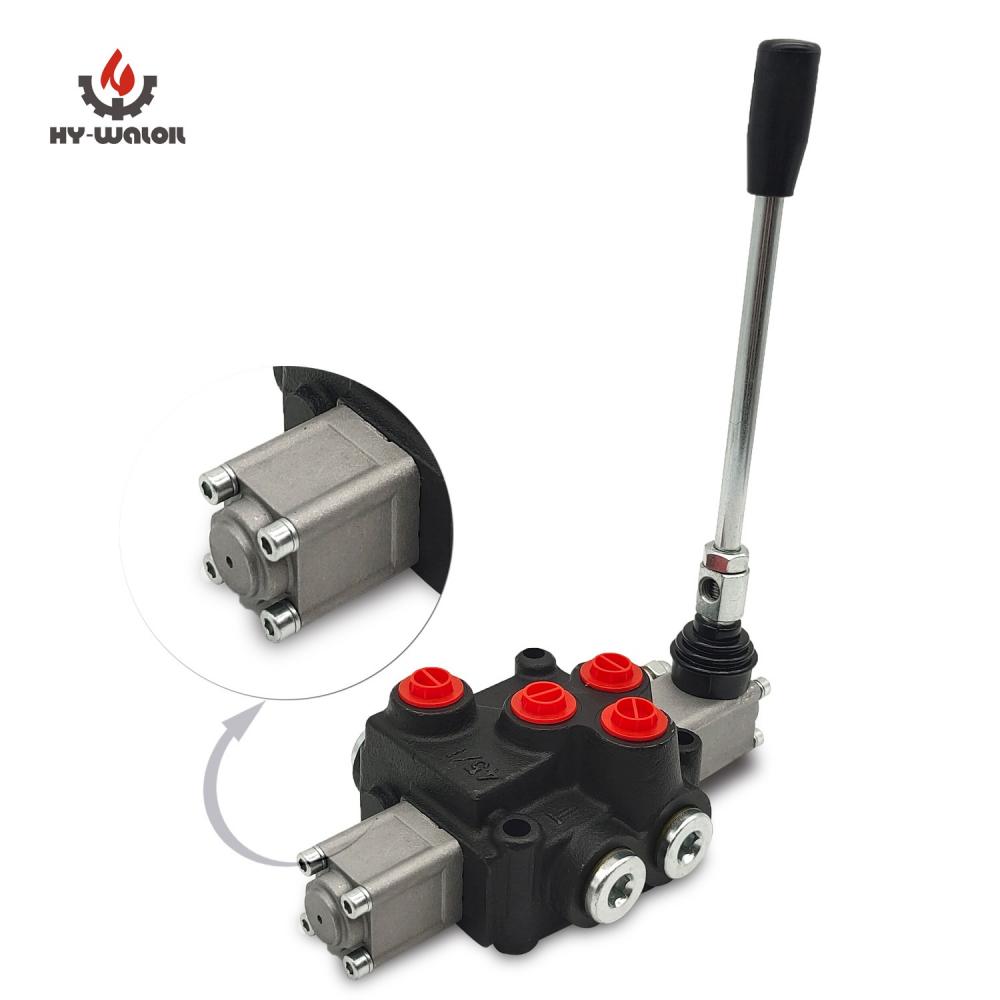

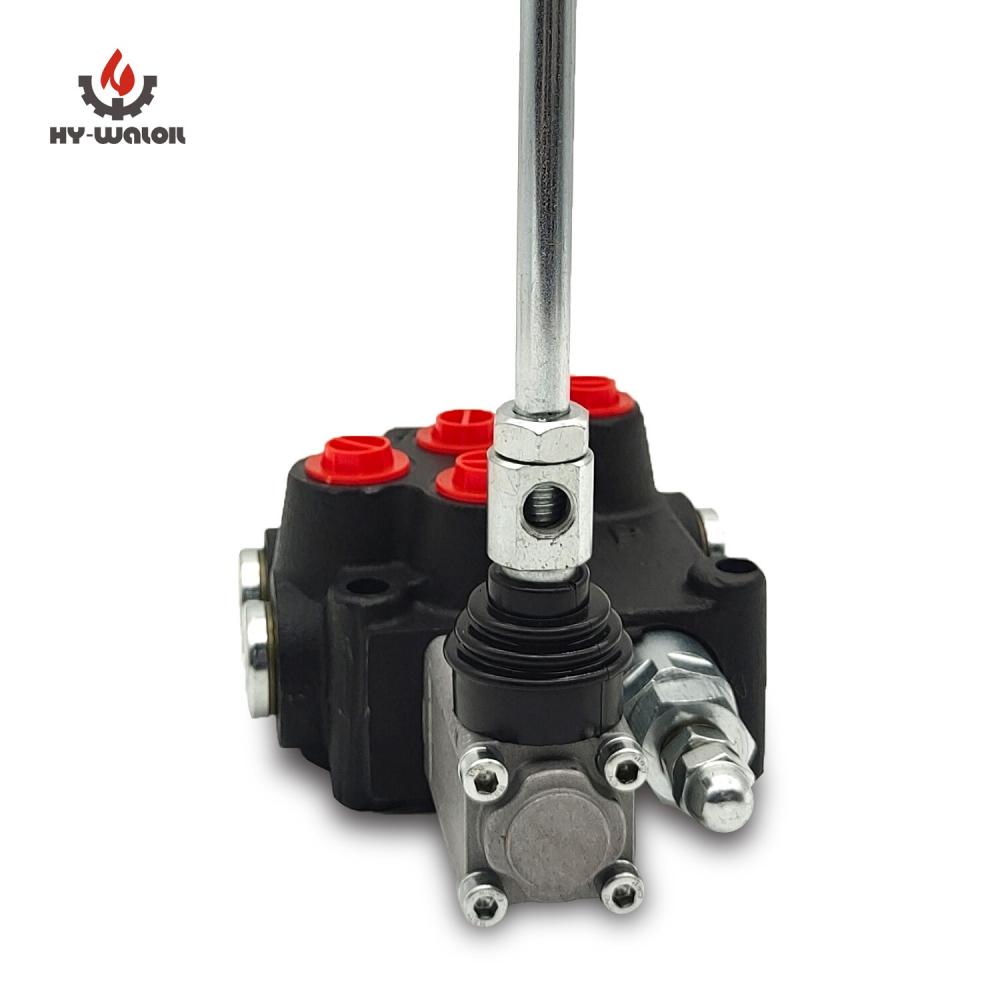

Zda-L15-1 Hydraulic Control Valve

Zda-L15 Hydraulic Multi-way Directional Manual Control Valve Description:

• 1 Spool ZDa-L15 Series Monoblock Directional Control Valve

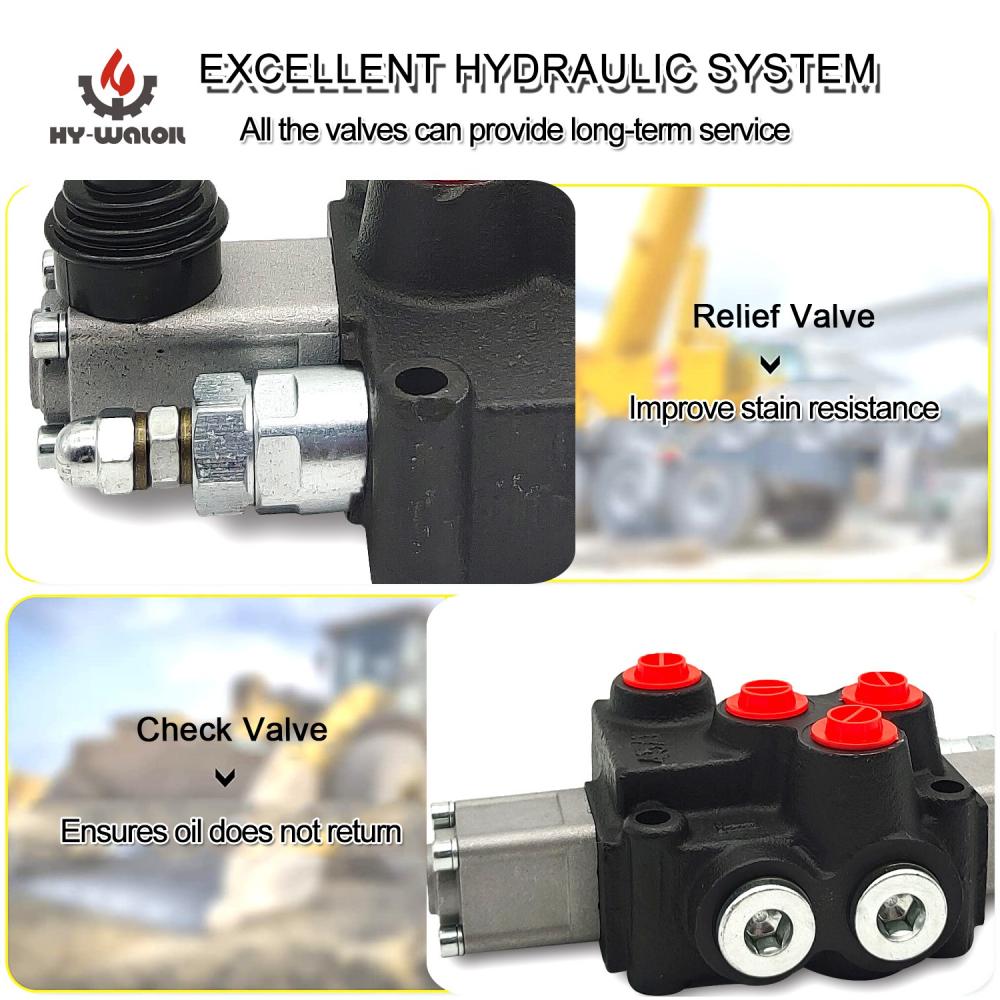

• * Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be
  returned.* Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working
  pressure.
  * Oil way: Parallel circuit, power beyond option.
  * Control Way: Manual control, pneumatic control, hydraulic and electric control for optional. * Spool Function: O,Y, A.
  * Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric
  control and etc.




1.The valve body is integrally cast from forging.

2.The maximum pressure is 31.5MPa and the maximum flow is 45L/min.

3.Has the function of regulating pressure

4.With anti-hydraulic backflow, reversing valve function

5.The hydraulic valve has good sealing performance. long lasting

Benefits for you:

1.The valve body is integrally casted by forging, which has good sealing performance and does not leak oil, long lasting.

2.It has the function of regulating the pressure, preventing the oil from flowing backward and reversing.

3.Operate with a reversing handle for parallel or series oil circuits.

4.Widely used in forklifts, small factory machinery, small agricultural machinery, small hydraulic presses, punching machines, and other processing equipment.
